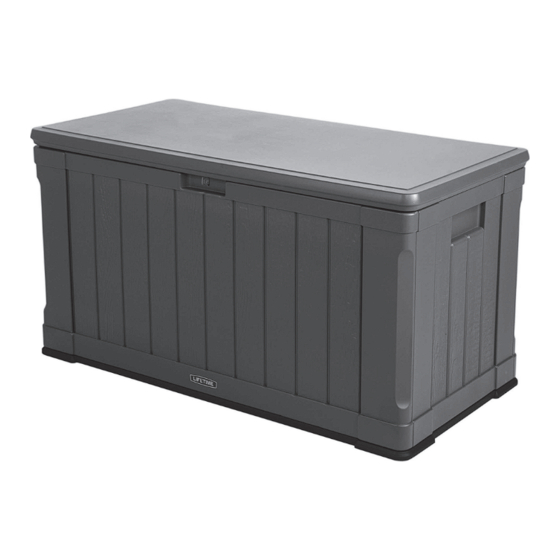

116-gallon (439 l) deck box
Hide thumbs Also See for 60089:
Table of Contents

Advertisement

Quick Links

Download this manual

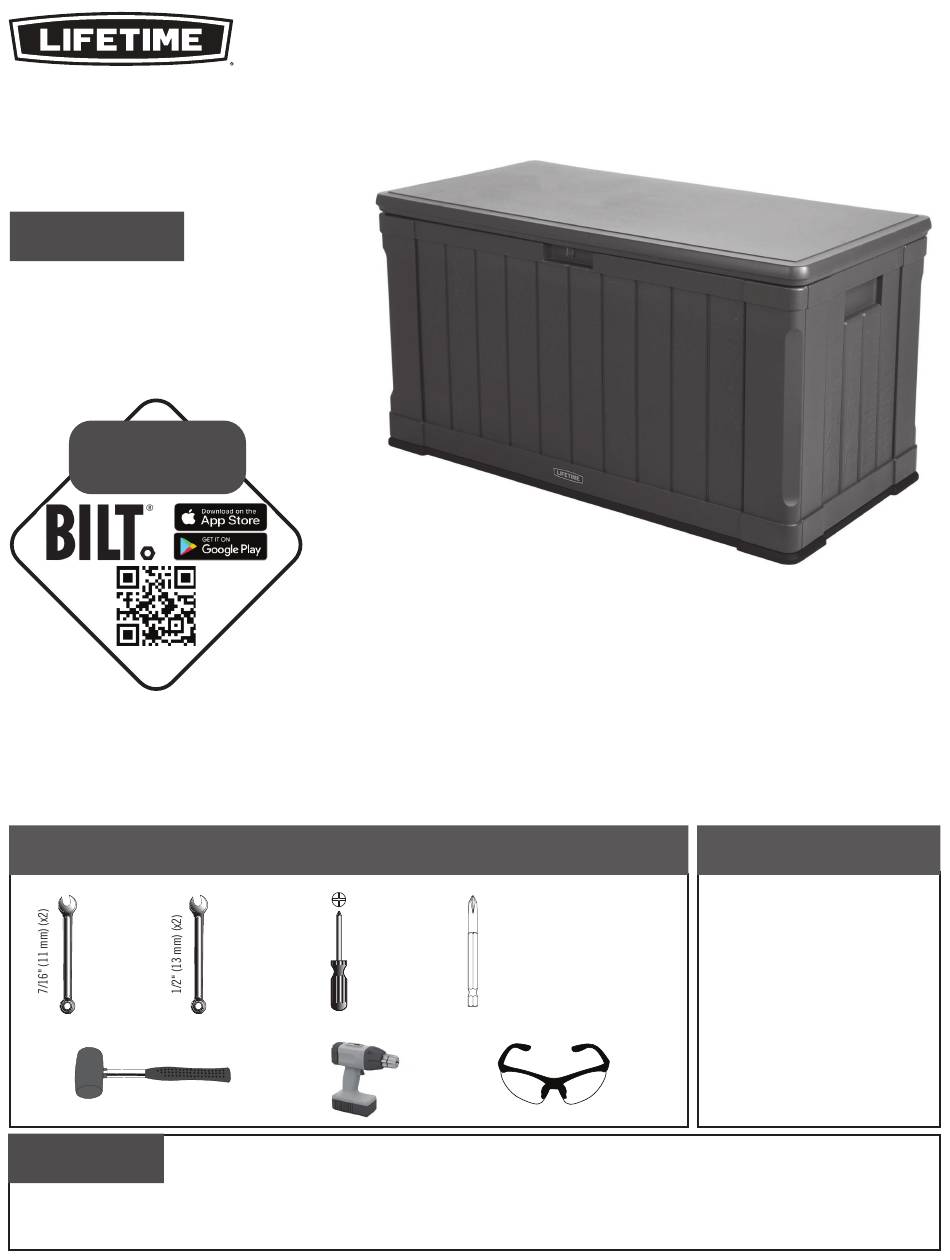

116-GALLON (439 L)
DECK BOX
MODEL 60089
ITM./ART. 619885
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
FOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED
QUESTIONS?
Call: 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
(English, French, Spanish)
OR SEARCH
1202273
CONTACT LIFETIME CUSTOMER SERVICE:
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in the United Kingdom and mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
Importado por:
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No. 4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
Ninguna garantía ofrecida por el fabricante es válida en México.
MODEL# AND PRODUCT ID
Model Number: 60089
Product ID:

TABLE OF CONTENTS

Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Box Assembly..............................7
Lid Assembly............................14
Additional Warnings..................23
Cleaning & Care........................27
Registration.........................28
Warranty.............................29
