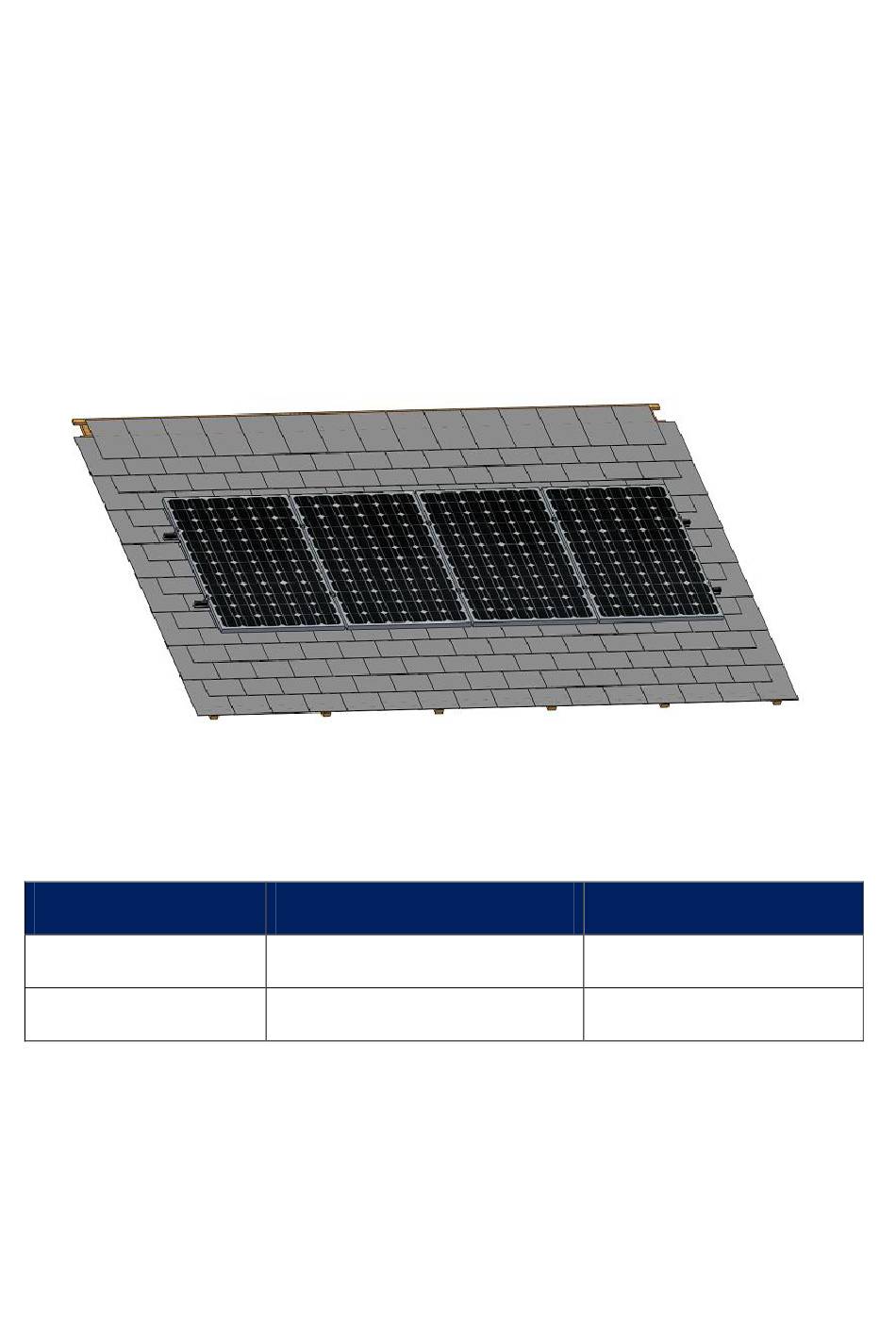

PV-ezRack SolarRoof Pro roof hook
Slate Tile Installation Guide V1.1
Amendments
Issue No
1.0
1.1
Contents
1 Introduction...................................................
2 Tools &Components ......................................
3 System Overview............................................. 5
4 Installation Instructions..................................
Issue: 1.1
system
Amendment Details
First Publication
Following MCS 012 standard
1 / 9
Date
26/03/2024
28/03/2024
2
4
6
Date: 28/03/2024
Advertisement
Related Manuals for Clenergy PV-ezRack SolarRoof Pro
Summary of Contents for Clenergy PV-ezRack SolarRoof Pro
- Page 1 PV-ezRack SolarRoof Pro roof hook system Slate Tile Installation Guide V1.1 Amendments Issue No Amendment Details Date First Publication 26/03/2024 Following MCS 012 standard 28/03/2024 Contents 1 Introduction…………………………………………… 2 Tools &Components ……………………………….. 3 System Overview……………………………………… 5 4 Installation Instructions……………………………. Issue: 1.1...
- Page 2 1. Introduction Clenergy SolarRoof Pro is a standard solution used for PV Module mounting on tile roofs. Its unique design made out of aluminium and stainless steel components allow to provide a high efficient installation making it very resistant and long lasting. This system is also compatible with most PV-Modules in the market.
- Page 3 • The upper and lower limit of the torque of the locking screws must be checked regularly at least once a year. • Changes and deviations from the planning documents must be approved by Clenergy. Issue: 1.1 3 / 9...
- Page 4 No. 1001,1003,1005,1007,1009, Min'an T: +86 (0592) 3110088 Rd., Torch Hi-Tech Ind. Development Zone, E: sales@clenergy.com.cn Xiang'An District, Xiamen Fujian, China. W: www.clenergy.com.cn 2. Tools & Components 2.1 Tools Tools Screw Driver Angle Grinder with ( for M8 and M12 Stone Disk...
- Page 5 Please refer to safe torques defined in this guide as shown in Installation Instructions. In case power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock). If deadlock occurs and you need to cut fasteners, make sure that there is no load on the fastener before you cut it.
- Page 6 No. 1001,1003,1005,1007,1009, Min'an T: +86 (0592) 3110088 Rd., Torch Hi-Tech Ind. Development Zone, E: sales@clenergy.com.cn Xiang'An District, Xiamen Fujian, China. W: www.clenergy.com.cn 4. Installation Instructions 4.1 Tile Interface Installation 4.1.1 Choice of Tile Bracket ER-I-PRO/02, ER-I- PRO/04 and ER-I-PRO/07 would be the most...
- Page 7 This is shown in Figure 3. Figure 3 4.1.4 Fixing Tile Bracket to Rafters Fix the tile brackets to the slate tiles using Clenergy provided 2x Buildex screws as shown in the figure on the right following the Buildex screws installation guide below: - Use a 3/8"...
- Page 8 No. 1001,1003,1005,1007,1009, Min'an T: +86 (0592) 3110088 Rd., Torch Hi-Tech Ind. Development Zone, E: sales@clenergy.com.cn Xiang'An District, Xiamen Fujian, China. W: www.clenergy.com.cn Figure 7 4.1.5 Apply flashing around Tile Bracket For prevention of water leakage, it is important to using flashing to secure the installation against rainwater.
- Page 9 Rd., Torch Hi-Tech Ind. Development Zone, E: sales@clenergy.com.cn Xiang'An District, Xiamen Fujian, China. W: www.clenergy.com.cn Figure 10 4.2 Rail, Clamps, and Panel Installation Please refer to Clenergy PV-ezRack SolarRoof Pro roof hook system Installation Guide for steps on installing rails, clamps and PV panels.
