PV-ezRack SolarTripod
Single/Adjustable and Double
Code-Compliant Planning and Installation guide
Based on AS/NZS 1170.2-2011 Amdt 3 2013
CONTENTS
1. Introduction.................................................................................................................. 2
2. Planning......................................................................................................................... 3
3. Component List............................................................................................................ 6
4. Array planning.............................................................................................................. 8
5. Step by step installation............................................................................................. 10
6. Service.............................................................................................................................13
PV-ezRack SolarTripod (double and single) Installation guide V2
11/20 Duerdin St
Clayton VIC 3168, Australia
www.clenergy.com.au
Tel: +61 3 9017 6688
Fax: +61 3 9017 6668
Email: sales@clenergy.com.au
Page 1 of 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Clenergy PV-ezRack SolarTripod
Summary of Contents for Clenergy PV-ezRack SolarTripod
-
Page 1: Table Of Contents
3. Component List……………………………………………………………………………………………… 6 4. Array planning……………………………………………………………………………………………….. 8 5. Step by step installation………………………………………………………………………………… 10 6. Service……………………………………………………………………………………………………………..13 PV-ezRack SolarTripod (double and single) Installation guide V2 Page 1 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au... -
Page 2: Introduction

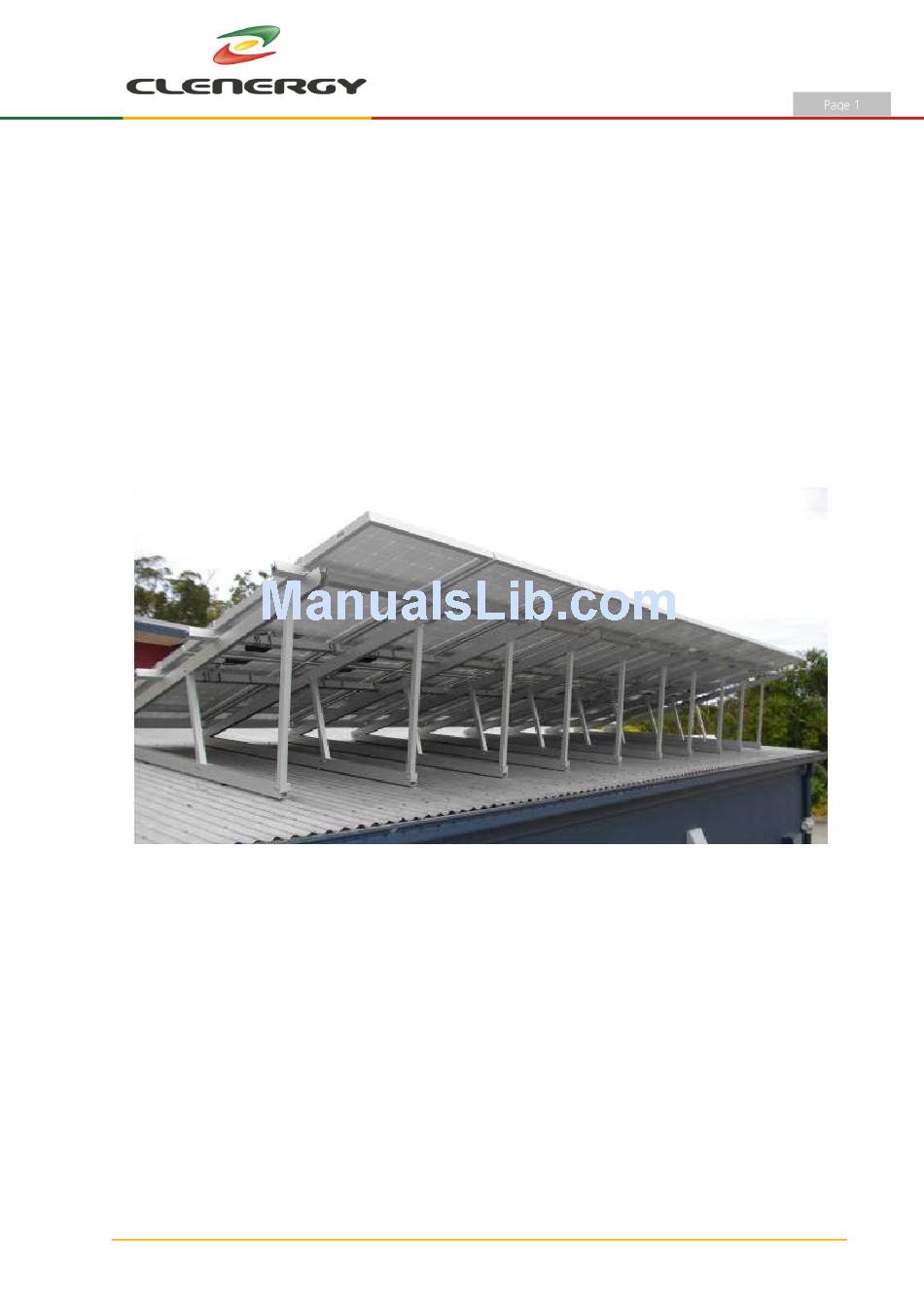

1 Introduction Clenergy PV-ezRack SolarTripod is suitable for home, commercial, flat roof and even for large scale solar installations. SolarTripod divides 2 solutions, single row and double rows in portrait of modules. The advantage of SolarTripod is the pre- assembly fixed angle brackets; it reduces the time and labour in installation. -
Page 3: Planning
2 Planning This document is designed to support installations using SolarTripod, manufactured by Clenergy (Xiamen) Technology Co., Ltd. Follow the six steps below and the installation instructions section to install Clenergy PV-ezRack SolarTripod in compliance with the AS/NZS1170.2-2011 Amdt 3 2013. - Page 4 This document provides sufficient information for the SolarTripod system installation height up to 10 meters. If your installation site is more than 10 meters in height, please contact Clenergy to obtain engineering data to support your installation. PV-ezRack SolarTripod (double and single) Installation guide V2...
- Page 5 The spacing below is suitable for a tilt angle of maximum 30° or less. 10m high roof PV-ezRack SolarTripod (double and single) Installation guide V2 Page 5 of 15 11/20 Duerdin St Tel: +61 3 9017 6688...
- Page 6 20m high roof PV-ezRack SolarTripod (double and single) Installation guide V2 Page 6 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au Email: sales@clenergy.com.au...
- Page 7 1200mm, the Rail End Over hang can be up to 600mm. In this case, two feet can support a rail of as much as 2400mm (1200mm between the feet and 600mm of overhang at each end). PV-ezRack SolarTripod (double and single) Installation guide V2 Page 7 of 15 11/20 Duerdin St...
-
Page 8: Component List
Tripod Support T-rail Clamp (single or double or T Rail Clamp adjustable) PV-ezRack SolarTripod (double and single) Installation guide V2 Page 8 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au... -
Page 9: Array Planning
3) Distance between the two rows: L2 must be determine based on the location to avoid shading 4) Distance between the two support Tripod: L3 (see 2.3 above) PV-ezRack SolarTripod (double and single) Installation guide V2 Page 9 of 15 11/20 Duerdin St... - Page 10 4.1 System dimensions Single/Adjustable Tripod 4.2 System dimensions Double Tripod PV-ezRack SolarTripod (double and single) Installation guide V2 Page 10 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au...
-
Page 11: Step By Step Installation
M10*65, Spring Washer, Flat Washer and Hex nuts M10. PV-ezRack SolarTripod (double and single) Installation guide V2 Page 11 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au... - Page 12 M10*65, Spring Washer, Flat Washer and Hex nuts M10 PV-ezRack SolarTripod (double and single) Installation guide V2 Page 12 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au...
- Page 13 T rail 50 using 2 tek screws on each side. PV-ezRack SolarTripod (double and single) Installation guide V2 Page 13 of 15 11/20 Duerdin St Tel: +61 3 9017 6688...
- Page 14 Inter- and End- clamps to fix the panels on to the rails. 5.4.2 Finish installing all the panels. PV-ezRack SolarTripod (double and single) Installation guide V2 Page 14 of 15 11/20 Duerdin St Tel: +61 3 9017 6688 Clayton VIC 3168, Australia Fax: +61 3 9017 6668 www.clenergy.com.au...
-
Page 15: Service
Clenergy’s written installation instructions, or if the Product has been modified, repaired, or reworked in a manner not previously authorized by Clenergy IN WRITING, or if the Product is installed in an environment for which it was not designed. Clenergy shall not be liable for consequential, contingent or incidental damages arising out of the use of the Product by Purchaser under any circumstances.
