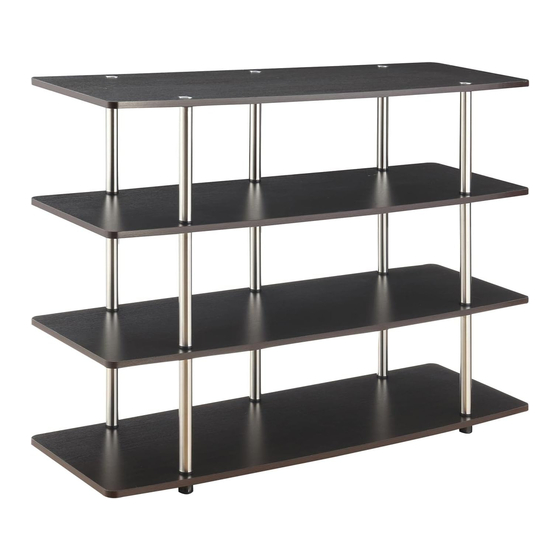

XL Highboy TV Stand
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com
131372
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for convenience concepts XL Highboy 131372
Summary of Contents for convenience concepts XL Highboy 131372
- Page 1 XL Highboy TV Stand 131372 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish . Feel confident that this will be a fun and rewarding project .
-
Page 2: Hardware List
Hardware List (A) End Caps x 5 (D) Plastic Feet x 5 (B) Shelves x 4 (E) Cable Tie x 2 (F) Eyelet Screw x 2 (C) Metal Poles x 15 Plastic Anchor X 2 Exploded Views Page 2 of 5... - Page 3 Step 1 (1) Place Shelf (B) over Plastic Feet (D). (2) Gently screw Metal Poles (C) into Plastic Feet (D) using care not to over tighten. Step 2 (1) Place Shelf (B) over Metal Poles (C). (2) Gently screw Metal Poles (C) into unit. Page 3 of 5...
- Page 4 Step 3 (1) Place Shelf(B) over Metal Poles(C). (2) Gently screw Metal Poles(C)into unit. Step 4 (1) Place Shelf (B) onto Metal Poles（C）. (2) Attach End Caps (A) to unit by turning in a clockwise direction. Page 4 of 5...
- Page 5 Step 5 1.Drill holes slightly smaller than anchors（G) into drywall and gently tap anchors into holes. 2.Insert eyelet screws (F) into anchors and fasten unit to wall using cable ties (E). Page 5 of 5...
