ASSEMBLY INSTRUCTIONS
We have designed our furniture with you,the customer in mind. our clear, easy to follow,
step by step instructions will guide you through the project from start to finish.
feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment.
Please do not return to the store
STOP
. Broken or missing parts?
. Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com

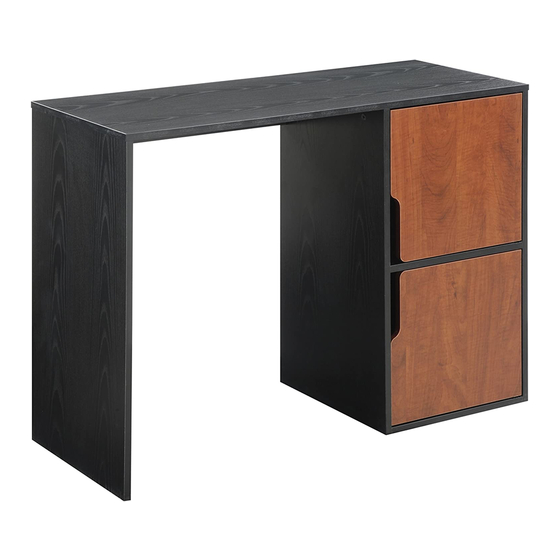

131450 Desk W/ Two Cabinets
