ACOPOWER HY-2x40w Product Introduction

2×40w foldable solar panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

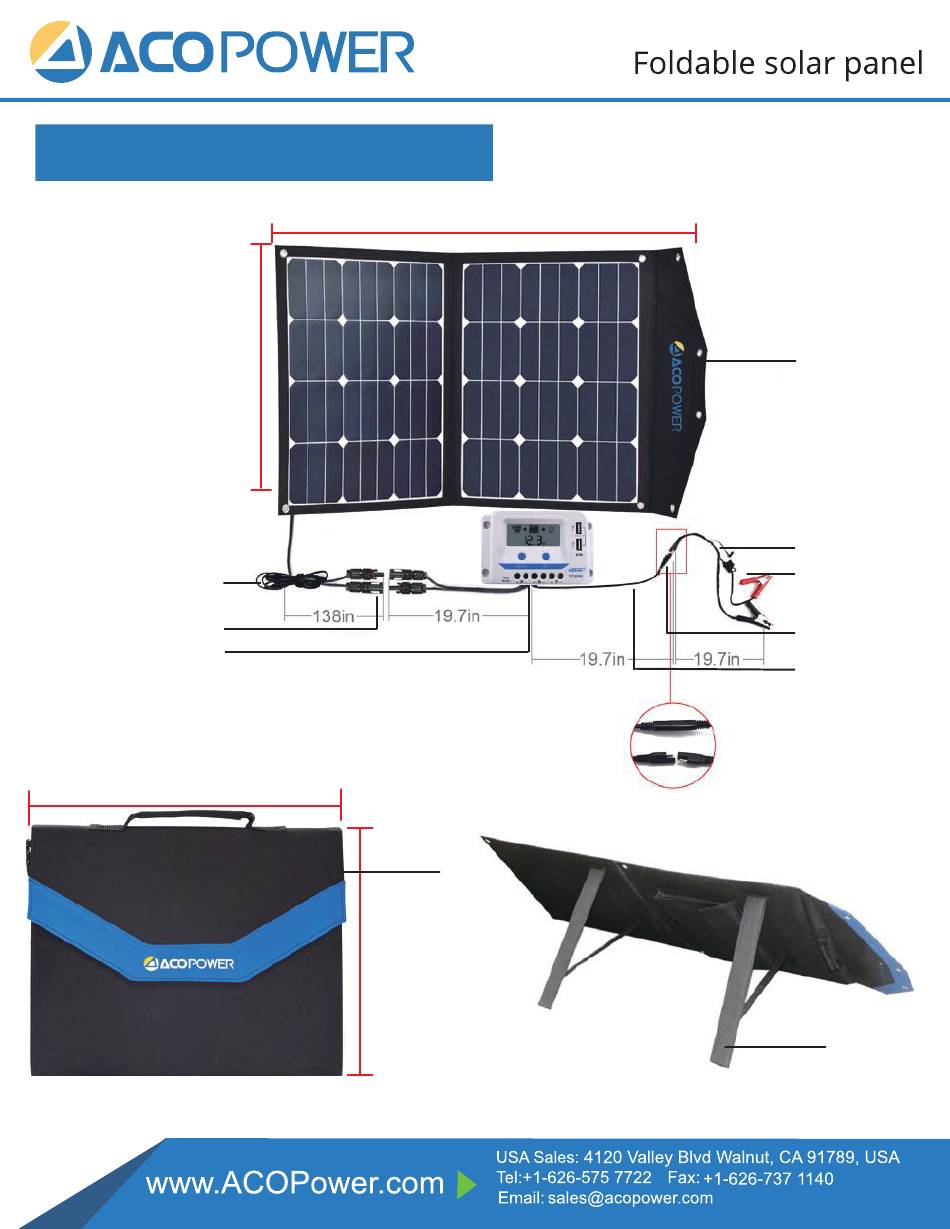

Product Introduction
560mm(22in)
7
6
2
560mm (22in)
2×40W
1100mm (43.3in)
4
440mm
(17.3 in）
1
9
3
10
8
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY-2x40w and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACOPOWER HY-2x40w

Summary of Contents for ACOPOWER HY-2x40w

  • Page 1 2×40W Product Introduction 1100mm (43.3in) 560mm(22in) 560mm (22in) 440mm (17.3 in）...
  • Page 2 2×40W Items 2 x 35 Watts Solar Panel 10A Charge Controller Alligator clips Suitcase with handle and pocket Stands MC4 Connectors (two pairs, removable) Cable 14AWG 15ft Cable 14AWG 3ft Fuse SAE Connectors Introduction This portable solar panel comes with a pre-installed charge controller. This charge controller protects battery against unsafe electrical conditions and must be used to charge 12V batteries.
  • Page 3 • Charge 12V solar generator by MC4 adapter- battery with inverter, power bank/station with built-in charge controller. ACOPOWER solar generator 220Wh recommended • Can be used on its own or as part of a larger solar system • Extendable with MC4 Connectors User’s guide...
  • Page 4 2×40W How to test the solar panel Method 1: use a multi-meter Set your multi-meter to measure DC voltage and put the red probe on the red MC4 cable and the black probe on the black MC4 cable (this is the solar panel’s direct output), make sure the connections are secure.
  • Page 5 2×40W Method 2: use your solar generator To test if the solar panel is working with a solar generator with a built-in charge controller, connect the MC4 adapters that came with your solar generator and plug it in to the MC4 cables of the solar panel directly (Bypassing the charge controller).
  • Page 6 2×40W How to test if the charge controller is working Step 1: Clamp the red battery clip to positive, black to negative and make sure the connection is secure. Make sure the solar panel MC4 cables are connected to the MC4 cables of the charge controller.
  • Page 7 2×40W Tip: The charge controller and the USB port will not respond unless it is connected to a battery! Always connect the battery first, then load (if applicable) and then the solar panel. For lights explanation, please check the Specifications section. What are you going to use it for 1.
  • Page 8 2×40W 2. Charge your 12 Volt battery Battery Lead-acid Battery Lithium The solar panel kit is designed to charge a large range of batteries including Sealed, Flooded, GEL, AGM, Lithium, lead-acid battery and other deep cycle battery. The batteries are used as car battery, RV battery, boat battery and emergency back-up battery.

  • Page 9: Specifications

    2×40W The load switch setting method: When the controller is on (battery connected), press the Set button to control load output. Use this button to turn the load ON or OFF. Tip: The USB port will only output when the Load is set to ON. 3.
  • Page 10 2×40W Figure 1 Characteristic ⑧ ① ⑤ Battery Terminals ① ② MENU Button ⑥ Load Terminals ② ③ RTS Port ⑦ SET Button ⑦ ④ ⑧ USB Output Ports※ PV Terminals ※ USB output ports provide the power supply of 5VDC/2.4A and have the short circuit protection.

  • Page 11: Button Function

    2×40W Connect components to the charge controller in the sequence shown above and pay attention to the positive and negative. When disconnecting the system, the order will be reversed. Button Function Button Function Browse interface MENU button Setting parameter Load ON/OFF Clear error SET button Enter into Set Mode...

  • Page 12: Fault Indications

    2×40W Fault Indications: Battery Type Status Icon Description Operating Steps Battery over Battery level shows empty, battery frame blink, discharged fault icon blink Under Battery Voltage interface, press SET button and hold on 5s then enter into the Battery over Battery level shows full, battery frame blink, fault interface of Battery type setting.

  • Page 13: Frequently Asked Questions (Faq)

    2×40W Frequently Asked Questions(FAQ) ACOPOWER is always open to customers with technical support, if you have any issues, please feel free to contact ACOPOWER by email at support@acopower.com Here we collected some frequently asked questions for reference: Q: What kind of battery can be charged by these solar modules A: 1.

  • Page 14: Safety Tips

    A: You will need to refer to the RV user manual and find out what kind of adapter you may need. Most adapters are sold on Amazon. Please contact support@acopower.com if you can’t find what you need. Q: The solar panel kit has the correct voltage reading but it won’t charge my generator.

  • Page 15: Warranty

    Limited Warranty shall be suspended without liability for the period of delay reasonably attributable to such causes. Register your warranty with ACOPWER, please visit: https://www.acopower.com select “Warranty Registration”. Thank you for your business and support! ACOPOWER Team technical support: support@acopower.com...
