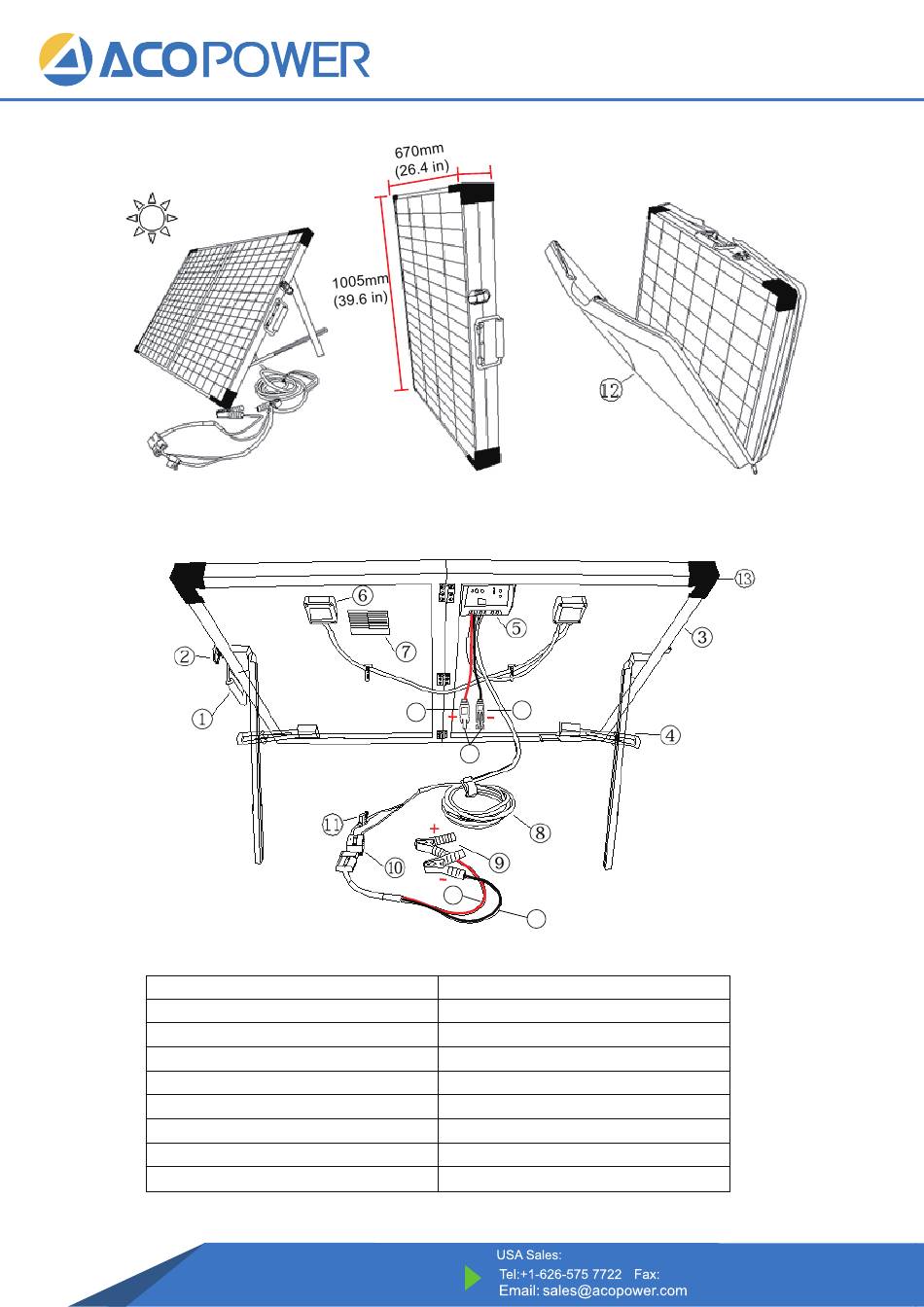

Accessories:
1. Handle
2. Latches
3. Aluminum frame
4. Aluminum support legs
5. Solar charge controller
6. Junction box
7. Label
8. Cable
9. Battery Clips
www.ACOPower.com
35m
(1.4 in)
14b
14a
14
9a
9b
9a. Red Positive Battery Clip
9b. Black Negative Battery Clip
10. Anderson Plug
11. Fuse
12. Handy carry bag
13. Corner protector
14. MC4 cables
14a. Red Positive MC4 Cable
14b. Black Negative MC4 Cable
4120 Valley Blvd Walnut, CA 91789, USA
KIT-HYS200MB
Power Your Green Life!
+1-626-737 1140
Advertisement
Table of Contents
Related Manuals for ACOPOWER KIT-HYS200MB
Summary of Contents for ACOPOWER KIT-HYS200MB
- Page 1 KIT-HYS200MB (1.4 in) Accessories: 1. Handle 9a. Red Positive Battery Clip 2. Latches 9b. Black Negative Battery Clip 3. Aluminum frame 10. Anderson Plug 4. Aluminum support legs 11. Fuse 5. Solar charge controller 12. Handy carry bag 6. Junction box 13.
- Page 2 • Charge 12V battery by alligator clamps- Sealed, Flooded, GEL, AGM, Lithium and other deep cycle batteries • Charge 12V solar generator by MC4 adapter- battery with inverter, power bank/station with built-in charge controller. ACOPOWER solar generator 150wh and 220wh recommended • Can be used on its own or as part of a larger solar system •...
- Page 3 KIT-HYS200MB Method 2: Use your solar generator To test if the solar panel is working with a solar generator with a built-in charge controller, connect the MC4 adapters that came with your solar generator and plug it in to the MC4 cables of the solar panel directly (14a and 14b, Table 1). Turn your solar generator on and it should start charging from the solar panel.
- Page 4 KIT-HYS200MB How to change the battery type? Tip:MT-50 remote meter needs to be purchased separately To change the battery type to something other than sealed(default), a MT-50 remote meter is needed. For a more detailed guide, follow the user manual for the MT-50 remote meter. Below will be a simple explanation on how to change the battery type.
- Page 5 KIT-HYS200MB What are you going to use it for 1. Charge solar generators 1.1. Charge 12V Solar Generator with built-in Charge Controller Step 1: understand your solar generator and prepare the MC4 adapter for your solar generator Step 2: Disconnect MC4 Connectors and let it to be a solar panel with MC4 connectors Step 3: Use your MC4 Adapter to charge your solar generator 2.
- Page 6 KIT-HYS200MB Charge Controller This solar panel module comes with a 20A solar charge controller which will look like the one shown below. (colors may vary) ① ② ⑧ ③ Figure 2 RTS ④ ⑤ ⑥ ⑦ Figure 1 Characteristic ①...
-
Page 7: Lcd Display
KIT-HYS200MB (1) Connect components to the charge controller in the sequence as shown above and pay much attention to the “+” and “-”. Please don’t insert the fuse or turn on the breaker during the installation. When disconnecting the system, the order will be reserved. -
Page 8: Light On/Off
KIT-HYS200MB Fault Indication Status Icon Description Battery over Battery level shows empty, battery frame blink, discharged fault icon blink Battery over Battery level shows full, battery frame blink, fault voltage icon blink Battery Battery level shows current value, battery frame... -
Page 9: Troubleshooting
KIT-HYS200MB Battery Type ①Sealed (Default) ②Gel ③Flooded NOTE: Please refer to the battery voltage parameters table for the different battery type. Troubleshooting Faults Possible reasons Troubleshooting during daytime when array Confirm that PV wire connections sunshine falls on PV disconnection... -
Page 10: Frequently Asked Questions (Faq)
KIT-HYS200MB FREQUENTLY ASKED QUESTIONS(FAQ) ACOPOWER is always open to customers with technical support, if you have any issues, please feel free to contact ACOPOWER by email at support@acopower.com Here we collected some frequently asked questions for reference: Q. What type of batteries can be used with the kit? A: 1. - Page 11 A: You will need to refer to the RV user manual and find out what kind of adapter you may need. Most adapters are sold on Amazon. Please contact support@acopower.com if you can’t find what you need. Q: The solar panel kit has the correct voltage reading but it won’t charge my generator.
-
Page 12: Warranty
Limited Warranty shall be suspended without liability for the period of delay reasonably attributable to such causes. Register your warranty with ACOPWER, please visit: https://www.acopower.com select “Warranty Registration”. Thank you for your business and support! ACOPOWER Team technical support: support@acopower.com...
