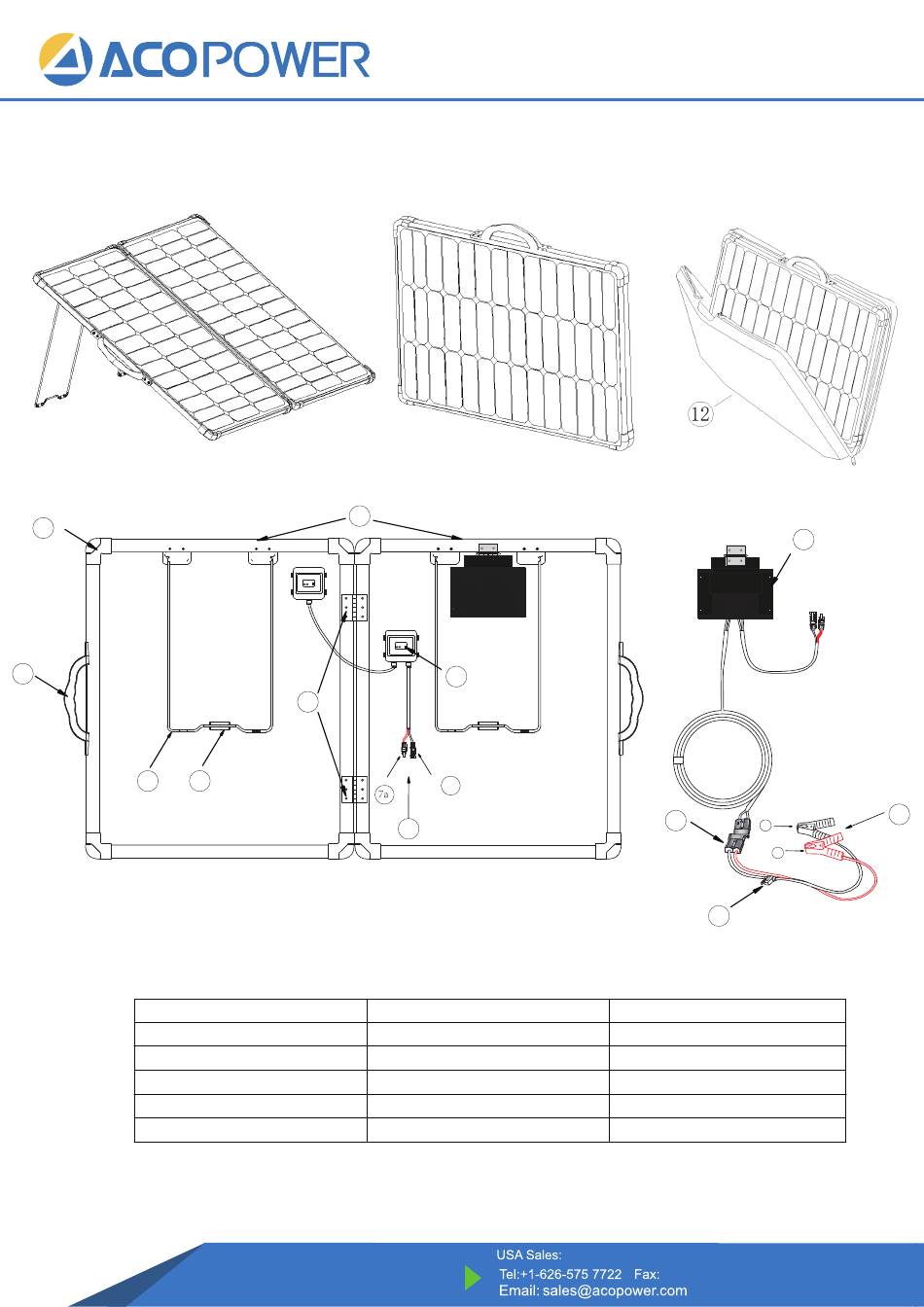

Summary of folding solar panel structure
1
2
3
Accessories:
1.Corner protector
2.Handle
3.Supporting legs
4.Fuse
5.Battery Clips
5a.Red Positive Battery Clip
Notice！！
When the bracket is folded to the extreme position, please avoid using force to prevent the bracket from deforming! A-A position.
10
HX025-A
1000V
11
9
www.ACOPower.com
HY-PLK-100WPX20A
HX025-B
1000V
8
+
-
7b
7
5b. Black Negative Battery Clip
6.Controller
7. MC4 cables
7a.Red Negative MC4 Cable
7b. Black Negative MC4 Cable
8.Junction box
13
4
9.Support fixing block
10.Solar panel
11.Hinge
12.Soft bag
13. Anderson Plug
Power Your Green Life!
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
6
-
+
-
5
5b
5a
+
Advertisement
Table of Contents
Related Manuals for ACOPOWER HY-PLK-100WPX20A
Summary of Contents for ACOPOWER HY-PLK-100WPX20A
- Page 1 HY-PLK-100WPX20A Summary of folding solar panel structure HX025-A 1000V HX025-B 1000V Accessories: 1.Corner protector 5b. Black Negative Battery Clip 9.Support fixing block 2.Handle 6.Controller 10.Solar panel 11.Hinge 3.Supporting legs 7. MC4 cables 12.Soft bag 4.Fuse 7a.Red Negative MC4 Cable 13. Anderson Plug 5.Battery Clips...
- Page 2 • Charge 12V battery by Lithium-ion,LifePO4,LTO, Flooded, GEL, AGM, Crystal and Calium batteries • Charge 12V solar generator by MC4 Connectors- battery with inverter, power bank/station with built-in charge controller. ACOPOWER 400Wh solar generator recommended.Adapter is needed. • Can be used on its own or as part of a larger solar system.
- Page 3 HY-PLK-100WPX20A Method 2: Use your solar generator To test if the solar panel is working with a solar generator with a built-in charge controller, connect the MC4 adapters that came with your solar generator and plug it in to the MC4 cables of the solar panel directly (7a and 7b, Table 1). Turn your solar generator on and it should start charging from the solar panel.
- Page 4 HY-PLK-100WPX20A What are you going to use it for 1. Charge solar generators 1.1. Charge 12V Solar Generator with built-in Charge Controller Step 1: understand your solar generator and prepare the MC4 adapter for your solar generator Step 2: Disconnect MC4 Connectors and let it to be a solar panel with MC4 connectors Step 3: Use your MC4 Adapter to charge your solar generator 2.
- Page 5 HY-PLK-100WPX20A 3.1 Parallel 12V Battery Charging： First connect the positive and negative electrodes MC4 of the two 120W PV modules to the MC4 Male Female Y Shape Branch input section (the two MC4 ports are the input parts) to form a solar panel parallel system (if the two solar panel...
- Page 6 HY-PLK-100WPX20A 5. RV /Camper battery charging A: If your RV /Camper has a built-in solar controller, please refer to Figure 1; B: If your RV /Camper has no built-in solar controller, please refer to Figure 2; Note that please charge the battery, please select the appropriate battery type.
- Page 7 HY-PLK-100WPX20A Figure 1: Anderson- Furrion Adapter Figure 2: Anderson- Furrion Adapter Please choose the right connector adapter (Purchase separately) Power Your Green Life! 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
-
Page 8: Specifications
23.4 5.35 ProteusX 20A Charge Controller The ProteusX is ACOPOWER's first waterproof PWM charge controller. - It is a negative ground controller. This ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding. - Page 9 HY-PLK-100WPX20A 1. Features and Mounting Figure 1 characteristic 2. Indicators Description and Operation 2.1 OPERATION - LCD DISPLAY Please check your battery manufacturer’s specifications to select correct battery type. The unit provides eight ( 8 ) battery types for selections: Lead crystal, Lithium-ion, LiFePO4, LTO, Gel, AGM, WET (conventional lead acid), and Calcium battery.
- Page 10 HY-PLK-100WPX20A Press BATTERY TYPE button and hold for 3 seconds to go into your battery type selection mode, the battery type you select will be shown on the LCD meter, the default setting is AGM Battery; the controller will automatically me morize your battery type setting.
- Page 11 HY-PLK-100WPX20A 2.2 CHARGING STAGE- The unit has a 6-stage charging algorithm. Diagnose* - Soft Charge – Bulk Charge - Absorption charge – Equalizing Charge* - Float Mode Diagnose * – Only for Lithium battery type, subjected to the Lithium battery initial voltage then determinegoing to Soft start or Bulk charge;...
-
Page 12: Safety Protection
HY-PLK-100WPX20A 2.3 LED INDICATION 3 SAFETY PROTECTION - -Spark-free protection. -Reverse polarity solar and battery connection. -Against reverse current from battery to solar panel at night. -Over temperature protection with charging current de-rate. -Transient overvoltage protection, a varistor or transient voltage suppressor (TVS) at the solar input and battery output against surge voltage. - Page 13 HY-PLK-100WPX20A Electrical Parameters Rated solar panel amps 10/15/20 Max. Normal input Solar cell array voltage 15-22 Max. solar cell array voltage (output has no load) Max. The controller lowest operating voltage at solar or battery side Standby current consumption at night Maximum voltage drop-Solar panel to battery 0.25...
-
Page 14: Technical Specifications
HY-PLK-100WPX20A Electrical parts Input output terminal M5 terminals Physical Parameters Controller material Plastic, Standard ABS Power terminal maximum stranded wire size #6 AWG stranded-16 mm Power terminal torque Up to 17 in-lb (0.2n-m) Mounting Vertical wall mounting IP grade IP65, Net weight Approx. - Page 15 HY-PLK-100WPX20A Power Your Green Life! 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
- Page 16 HY-PLK-100WPX20A Power Your Green Life! 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
-
Page 17: Warranty
Limited Warranty shall be suspended without liability for the period of delay reasonably attributable to such causes. Register your warranty with ACOPWER, please visit: https://www.acopower.com select “Warranty Registration”. Thank you for your business and support! ACOPOWER Team technical support: support@acopower.com...
