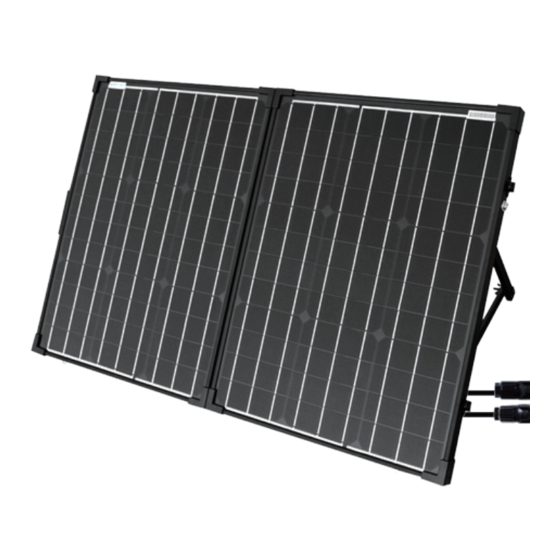

1. Handle
2. Latches
3. Aluminum frame
4. Aluminum support legs
5. 20A Solar charge controller
6. Junction box
7. Label
8. Cable
9. Battery Clips
www.ACOPower.com
30m
(1.2 in)
14b
14a
14
9a
9b
9a. Red Positive Battery Clip
9b. Black Negative Battery Clip
10. Anderson Plug
11. Fuse
12. Handy carry bag
13. Corner protector
14. MC4 cables
14a. Red Positive MC4 Cable
14b. Black Negative MC4 Cable
4120 Valley Blvd Walnut, CA 91789, USA
HY-PTK-100WPX20A
+1-626-737 1140
Advertisement
Table of Contents
Related Manuals for ACOPOWER HY-PTK-100WPX20A
Summary of Contents for ACOPOWER HY-PTK-100WPX20A

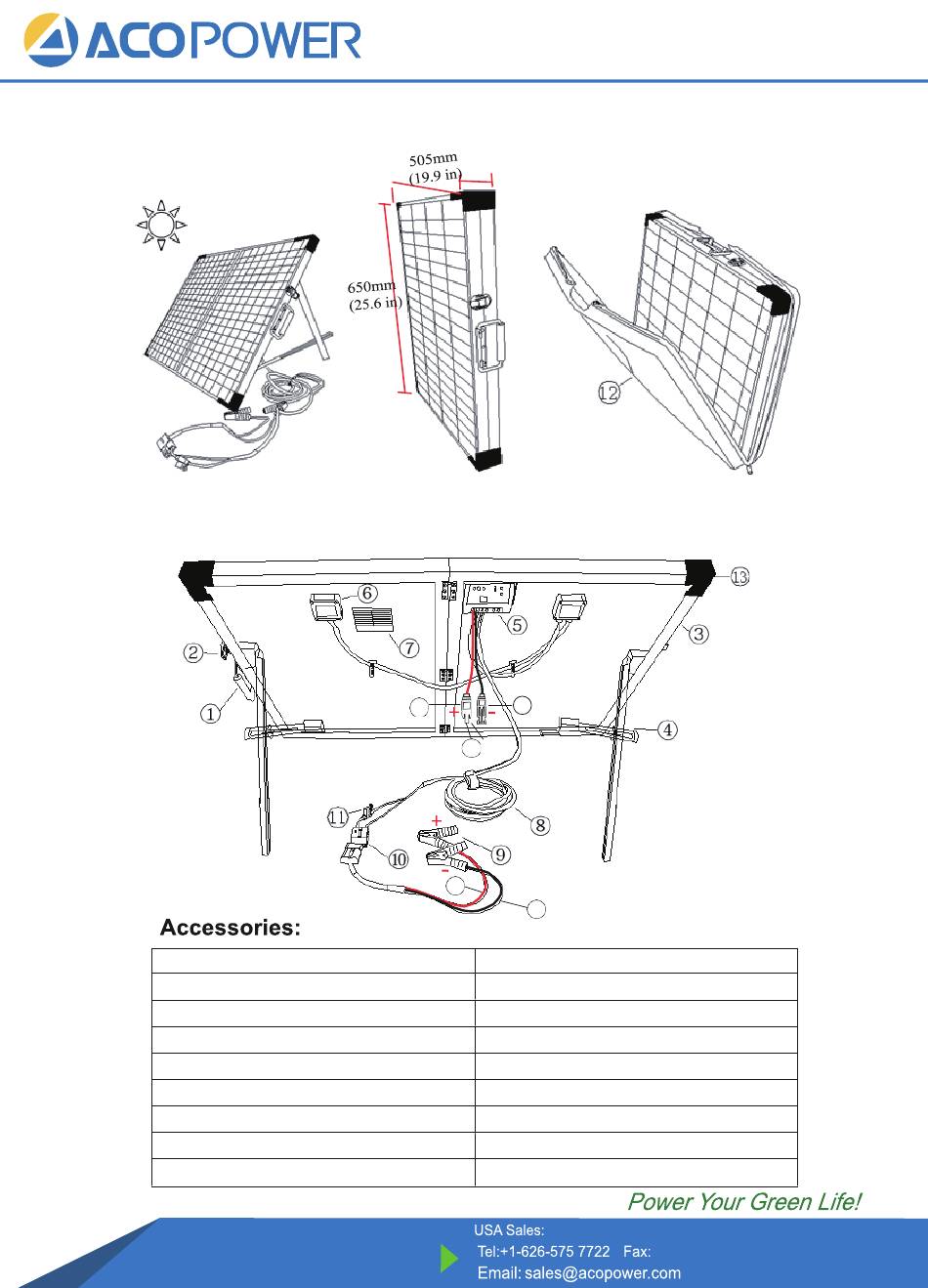

- Page 1 HY-PTK-100WPX20A (1.2 in) 1. Handle 9a. Red Positive Battery Clip 2. Latches 9b. Black Negative Battery Clip 3. Aluminum frame 10. Anderson Plug 4. Aluminum support legs 11. Fuse 5. 20A Solar charge controller 12. Handy carry bag 6. Junction box 13.
- Page 2 HY-PTK-100WPX20A Charge 12V battery by Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium batteries 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
- Page 3 HY-PTK-100WPX20A 、 、 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
- Page 4 HY-PTK-100WPX20A The solar panel kit is designed to charge a large range of batteries including Lithium-ion, LiFePO4, LTO, Gel, AGM , Flooded, Crystal and Calcium batteries. 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
-
Page 5: Specifications
(25.6*19.9*1.2 in) (33.1 lb) ProteusX 20A Charge Controller The ProteusX is ACOPOWER's first waterproof PWM charge controller. It is a negative ground controller. This ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding. - Page 6 HY-PTK-100WPX20A 2. Indicators Description and Operation 2.1 OPERATION - LCD DISPLAY Please check your battery manufacturer’s specifications to select correct battery type. The unit provides eight ( 8 ) battery types for selections: Lead crystal, Lithium-ion, LiFePO4, LTO, Gel, AGM, WET (conventional lead acid), and Calcium battery.
- Page 7 HY-PTK-100WPX20A Self-test starts, digital meter segments test Software version test Rated voltage and current test ºC External battery temperature sensor test (if connected) Indicates the solar panel connected. After going into charging process, the LCD displays the charging statues as below:...
- Page 8 HY-PTK-100WPX20A Diagnose * – Only for Lithium battery type, subjected to the Lithium battery initial voltage then determinegoing to Soft start or Bulk charge; if the Lithium battery is protected by BMS, the controller will automatically send the sign al periodically to the battery terminal to activate the BMS against protection.
-
Page 9: Safety Protection
HY-PTK-100WPX20A 3 SAFETY PROTECTION - -Spark-free protection. -Reverse polarity solar and battery connection. -Against reverse current from battery to solar panel at night. -Over temperature protection with charging current de-rate. -Transient overvoltage protection, a varistor or transient voltage suppressor (TVS) at the solar input and battery output against surge voltage. -
Page 10: Technical Specifications
HY-PTK-100WPX20A --Li-ion battery 12.6 +/-0.2 Absorption transits to Equalizing or Float condition: --Charging current drops to +/0.1 -- or Absorption charging timer timed out Hour Equalization charging active --Only for WET or Calcium battery --Battery voltage discharged to less than +/-0.2... - Page 11 HY-PTK-100WPX20A A: There are 8 batteries can be used with it: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium batteries A: Yes, it is IP65 Waterproof for the kit and IP65 for Charge Controller; 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com...
- Page 12 HY-PTK-100WPX20A 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
- Page 13 HY-PTK-100WPX20A Warranty Registration Web 4120 Valley Blvd Walnut, CA 91789, USA www.ACOPower.com +1-626-737 1140...
