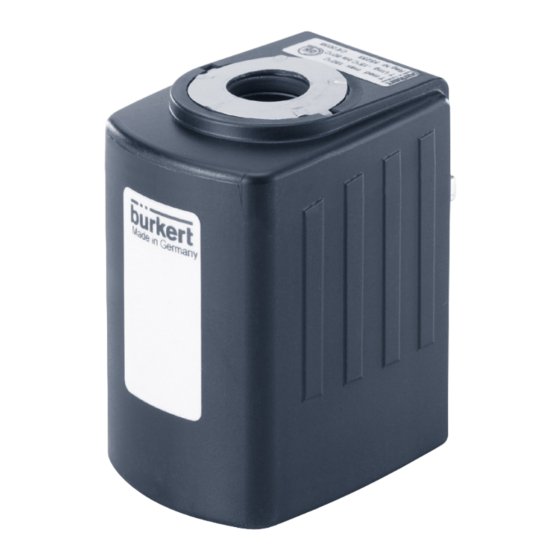

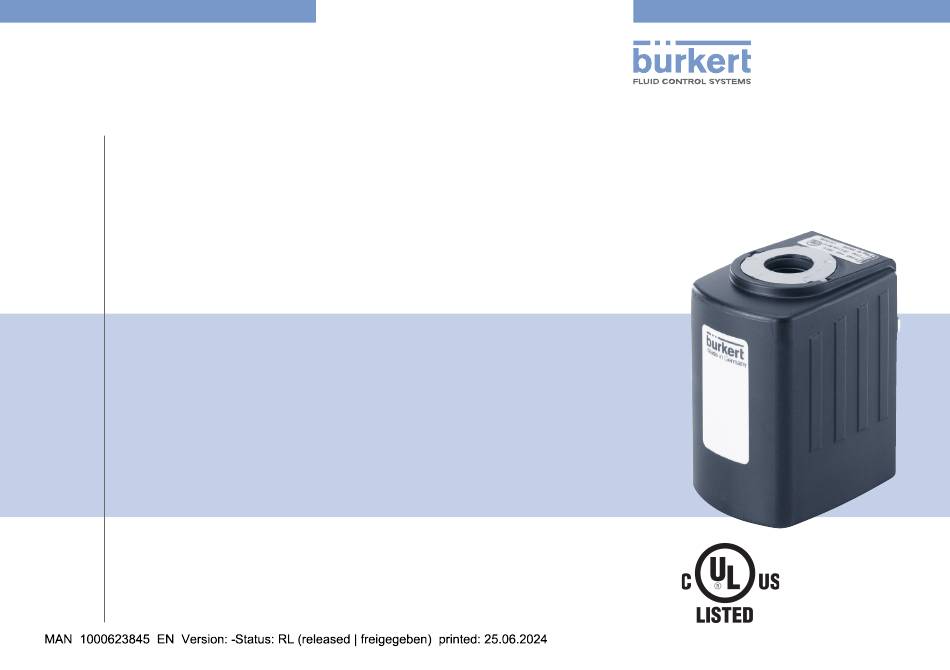

- Page 1 Solenoid coil Type 0243 / 0256 with connector Type 2509 Device with Hazardous Locations Class I Zone 2 Listing Operating Instructions...
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2024 Operating Instructions 2405/00_EU-ML_00815483 / Original EN...
-
Page 3: Table Of Contents
Type 0243/0256 Contents OPERATING INSTRUCTIONS ..........4 START-UP ................14 Terms and abbreviations ..........4 MAINTENANCE, REPAIRS, TROUBLESHOOTING .... 14 Symbols ............... 4 Maintenance .............. 14 INTENDED USE ..............5 Repair ................ 14 Applied standards ............5 Troubleshooting ............14 BASIC SAFETY INSTRUCTIONS .......... -
Page 4: Operating Instructions
Type 0243/0256 Operating instructions OPERATING INSTRUCTIONS Symbols The following symbols are used in these instructions. The operating instructions describe the entire life cycle of the device. Keep these instructions in a location which is easily accessible to DANGER! every user, and make them available to every new owner of the device. -
Page 5: Intended Use
Type 0243/0256 Intended use INTENDED USE Applied standards USL - U.S. Listed certification in accordance with UL 429 Non-authorized use of the solenoid coils Type 0243/0256 with 2509 may be a hazard to people, nearby equipment and the environment. UL 60079-0 EXPLOSIVE ATMOSPHERES Edition 7 - The solenoid coils Type 0243/0256 with 2509 are used to... -
Page 6: Basic Safety Instructions
Type 0243/0256 Basic safety instructions BASIC SAFETY INSTRUCTIONS These safety instructions do not take into account any Risk of explosion. unforeseen circumstances and events which occur during instal- Solenoids and valve bodies form a closed system after instal- lation, operation and maintenance. lation. -
Page 7: General Notes
▶ Do not use the device as a lever when screwing the valve They are also available online at: country.burkert.com into the line. Warranty A precondition for the warranty is that the solenoid coil types 0243 and 0256 are used as intended in consideration of the specified application conditions. -
Page 8: Operational Conditions Of The Devices
Type 0243/0256 Operational conditions of the devices OPERATIONAL CONDITIONS OF WARNING! THE DEVICES Hazard due to electrostatic discharge. If there is a sudden discharge of electrostatically charged Special conditions devices or people, there is a risk of explosion in the Ex area. ▶... -
Page 9: Operating Conditions
Type 0243/0256 Operational conditions of the devices Operating conditions The valve provides a cooling function for the solenoid coil. The solenoid coil may not be operated without a valve. The valve Mounting screws body must meet the following requirements: Electrical connection •... -
Page 10: Technical Data
Type 0243/0256 Technical data TECHNICAL DATA Standards and directives The device complies with the relevant EU harmonisation legis- Safety instructions lation for non-Ex enviroments. In addition, the device also com- plies with the requirements of the laws of the United Kingdom for DANGER! non-Ex enviroments. -
Page 11: Installation And Disassembly
Type 0243/0256 Technical data INSTALLATION AND Item Description Details DISASSEMBLY 1² Zone / Division Marking CI I, Zn 2, AEx ec IIC T3 Gc DANGER! Ex ec IIC T3 Gc X CI I, Div 2, Gr A,B,C,D T3 Risk of injury due to high pressure in the system or device. Type No. -
Page 12: Installing The Cable Plug
▶ The device must not be used in areas with processes that generate heavy charges, involve automated grinding or cut- online at: country.burkert.com ting, the spraying of electrons (e.g. near electrostatic painting An exact description of the installation can be found in equipment) or generate pneumatically propelled dust. -
Page 13: Electrical Connection
Type 0243/0256 Technical data Electrical connection Disassembly DANGER! DANGER! Risk of injury due to electric shock. Risk of injury due to high pressure in the system or device. ▶ Before reaching into the system, switch off the power supply ▶ Before working on the system or device, switch off the pres- and secure against reactivation. - Page 14 Type 0243/0256 Start-up START-UP MAINTENANCE, REPAIRS, TROUBLESHOOTING WARNING! Risk of injury due to improper operation. Maintenance Improper operation may result in injuries as well as damage to The solenoid coil types 0243 and 0256 are maintenance-free if the the device and the area around it. operating conditions described in the instructions are observed.
- Page 15 ▶ Dispose of the device and packaging in an environmentally friendly manner. ▶ Observe applicable disposal and environmental regulations. Environmentally friendly disposal ▶ Follow national regulations regarding disposal and the environment. ▶ Collect electrical and electronic devices separately and dispose of them as special waste. Further information country.burkert.com. English...
