PowerTec 71414 Instruction Sheet

Quick release framing clamp

Advertisement

Quick Links

INSTRUCTION SHEET
Quick Release Framing Clamp
QUESTION...
1•847•780•6120

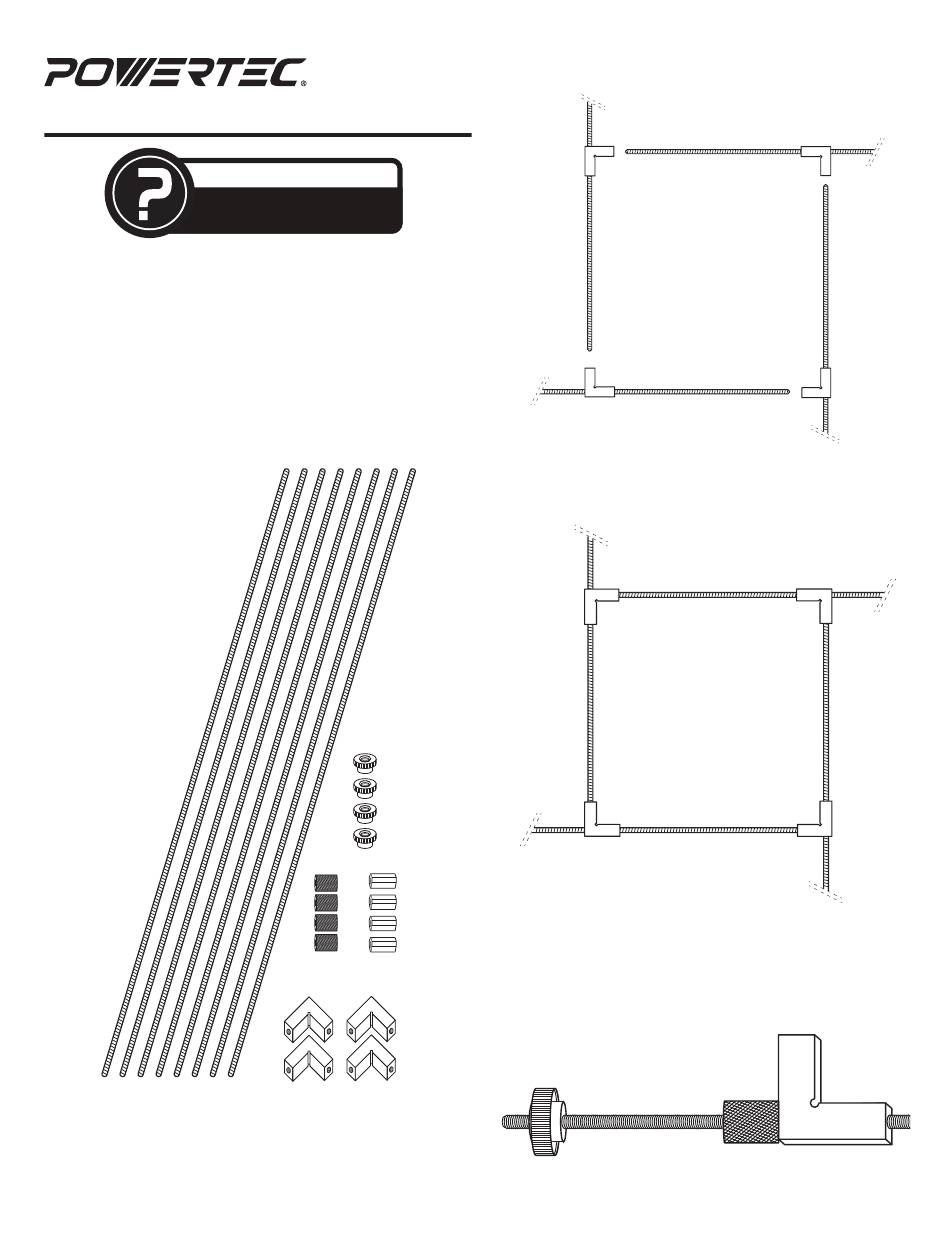

PACKAGING CONTENTS
4–Spindles
4–Corner Blocks
4–Quick Nuts
4–Keeper Knobs
4–Extension Spindles (extra spindles for larger frames)
4–Extension Nuts
Figure 1
Spindles
TO ASSEMBLE
1.
Thread one end of a spindle into each of the four
corner blocks.
Extension
Spindles
Keeper Knobs
Quick
Extension
Nuts
Nuts
Corner
Blocks
Figure 2
2.
Form a square or rectangle by placing the free end of each
spindle through the free end of each corner block.
Figure 3
3.
Tilt the quick nut and slide it onto the spindle. DO NOT
engage the threads at this time. Thread the keeper knobs
onto each spindle to keep the quick nuts from sliding
off spindle.
Figure 4
MODEL NO. 71414
19-0422

Advertisement

loading
Need help?

Need help?

Do you have a question about the 71414 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerTec 71414

  • Page 1 INSTRUCTION SHEET MODEL NO. 71414 Figure 2 Quick Release Framing Clamp QUESTION... 1•847•780•6120 PACKAGING CONTENTS 4–Spindles 4–Corner Blocks 4–Quick Nuts 4–Keeper Knobs 4–Extension Spindles (extra spindles for larger frames) 4–Extension Nuts Figure 1 Form a square or rectangle by placing the free end of each Spindles spindle through the free end of each corner block.
  • Page 2 To clamp the four mitered pieces: • Place the four mitered pieces into the opening of the assembled clamp. • Tilt and slide the quick nut into position, square up the quick nut and engage the threads. Tighten in place. Figure 5 NOTE: For larger frames (up to 4' x 4') add the extension spindles using the extension nuts.
