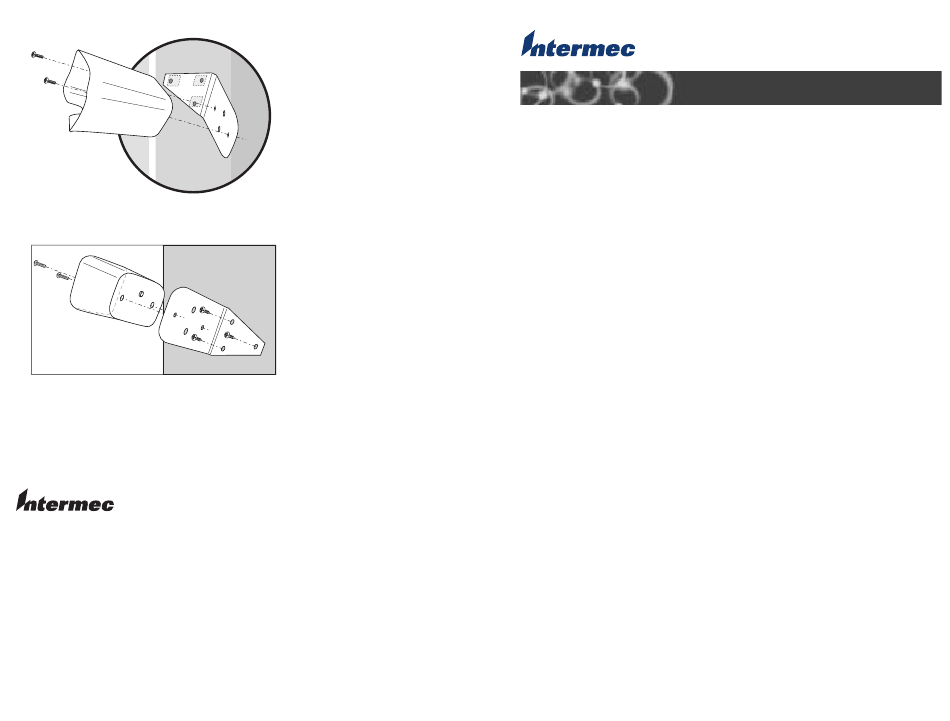

Mounting the SR60 to the Left Side of a Surface with Double-Sided Tape
Alternate Way to Mount the Scanner Holder to the Mounting Plate
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
©
2006 Intermec Technologies
Corporation. All rights reserved.
SR60 Mounting Kit Instructions
*943-060-001*
P/N 943-060-001 Rev A
SR60 Mounting Kit Instructions
Use the SR60 Mounting Kit to mount your scanner to a countertop, a wall,
under a counter, or on the side of a surface. The SR60 mounting kit
contains these parts:
• Scanner holder
• Countertop mounting plate
• Wall or under-the-counter mounting plate
• Side mounting plate
• Three Phillips screws
• Two Torx screws
• Four non-skid feet
To mount the scanner, you need these tools:
• #2 Phillips screwdriver
• Torx screwdriver
To mount the SR60 to a countertop
There are two options for using the SR60 with the countertop mounting
1
plate:
• Attach the mounting plate to the countertop with two Phillips screws.
• Apply the four non-skid feet to the bottom of the mounting plate and
set it on the countertop.
Attach the scanner holder to the countertop mounting plate with the
2
two Torx screws.
