Intermec Sabre 1550 Quick Reference Manual

This quick reference guide describes how to assemble and use the scanner
stand with a 1550 series laser scanner.

1550 Series Scanner Stand

Quick Reference Guide
This scanner stand, combined with an auto-trigger laser scanner, gives
you hands-free scanning. The scanner stand consists of a base and a
column with a holder, and an optional reflective label (for use with
1550A02 and 1550A04 auto-trigger scanners, and 1551AXX decoding
scanners). The 155XB scanners use the label already on the base of the
stand. Just place the 1550B02, 1550B04, or 1551BXX in the holder and you
are ready to scan.
Note: The scanner stand will not work with
a manually triggered laser scanner.

To assemble the scanner stand

1. Insert the column into the base.
2. Adjust the column height and
then tighten the knob to secure
the column to the base.
3. If you have a 1550AXX auto-
trigger scanner or a 1551AXX
decoding scanner, place the
reflective label over the label
on the base of the scanner stand.

Configuring a 1551AXX Decoding Laser Scanner

You need to configure a 1551A02, 03, or 07 decoding laser scanner to use
the scanner stand. Scan this bar code to enable Stand mode:
Enable Stand
Note: An auto-trigger laser scanner is preset at the factory and does not need to
be configured.

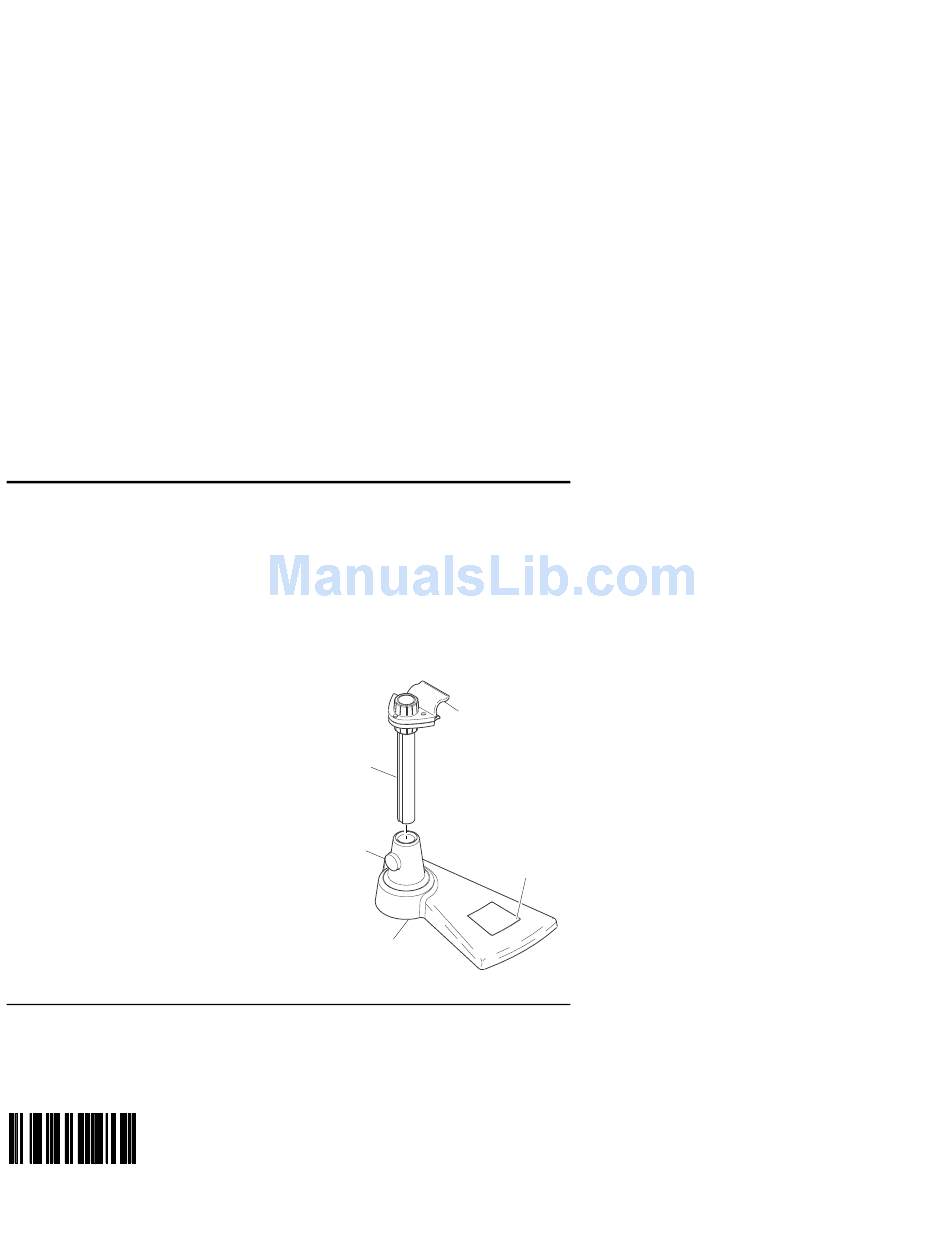

Holder
Column
Knob
Base
Label
155XQ.005
