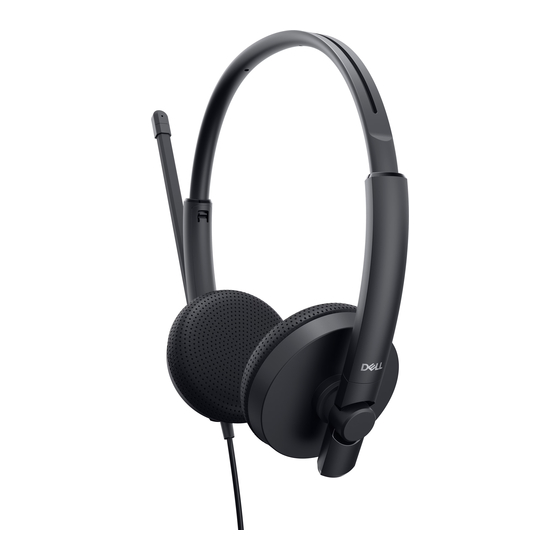

- Page 1 Dell Stereo Headset WH1022 User Guide Regulatory Model: HS2201...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. 2024-01...
-
Page 3: Table Of Contents
Contents Overview What’s in the box Views Setting up your headset on a computer Headband & microphone boom fit Headset in-line controls & indicator light Specifications Frequently asked questions Troubleshooting Statutory information Getting help Contents... -
Page 4: Overview
Overview The Dell WH1022 Headset is the latest in the Dell stereo headset line- up which offers the following: • Light weight and comfortable earpads • High resolution audio output • Clear voice microphone Overview... -
Page 5: What's In The Box
What’s in the box Dell WH1022 Headset Headset controller Warranty, Safety, Environmental, and Regulatory Information NH $OPM AYN r › a F APAH YNrt a, for s kri fter Infor m acj e dotyc z ąc e g w ar ancji, bez pi ec z eństw a, HOPM AT nbhnte PA›... -
Page 6: Views
Views Headset Adjustable headband Adjustable noise canceling microphone boom Controller Leatherette ear pads Controller Mute indicator Mute/unmute microphone Volume controls Mute/unmute speaker Power indicator Headphone jack Views... -
Page 7: Setting Up Your Headset On A Computer
Set up your headset Connect the headset's audio cable connector to the headphone jack on the headset controller. Connect the USB-A end of the headset controller cable to a USB-A port on your notebook or desktop. Note: The headset can be connected to your notebook, desktop or mobile device without the headset controller as well. -
Page 8: Headband & Microphone Boom Fit
Headband & microphone boom fit Headband fit Adjust headset by sliding headband open or close. Headband fit 1. Microphone boom rotates 270 degrees. Wear it on either left or right side to capture voice better. 2. Adjust flexible microphone boom location. Headband &... -
Page 9: Headset In-Line Controls & Indicator Light
Headset in-line controls and indicator light Button Usage Indicator Light Action Mute On Solid Red Short press to Mute On Mic Mute Mute Off No Light Short press to Mute Off Short press to Volume Up Volume No Light Short press to Volume Down Mute On No Light Speaker Mute... -
Page 10: Specifications
Specifications Model No. WH1022 USB-A USB 2.0 3.5 mm audio jack CTIA Headset 161.5 mm x 155.2 mm x 59.8 mm Height x Width x Depth: Ear pads 60 mm x 60 mm x 10 mm 3.0-5.5 V Operating voltage Windows®... -
Page 11: Frequently Asked Questions
One USB 2.0 type-A port 2. How do I know if my headset is on? The Dell WH1022 headset has a status-LED on the controller that stays on (green light) when the headset is in use. The status-LED behavior is as follows:... -
Page 12: Troubleshooting
Unable to hear audio clearly the microphone type on the selected adapter. 3. Unplug and re-plug the headset to check again. Computer speakers playing Please check the "Setting>System>Audio>Select Output audio despite having the Device" and select "Dell Stereo Headset". headset plugged in. Troubleshooting... -
Page 13: Statutory Information
Statutory information Warranty Limited warranty and return policies Dell WH1022 headset ships with a 3-years limited hardware. If purchased together with a Dell system, it will follow the system warranty. For U.S. customers: This purchase and your use of this product are subject to Dell’s end user agreement, which you can find at www.dell.com/terms This document contains a binding arbitration clause. -
Page 14: Getting Help
Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps 1.
