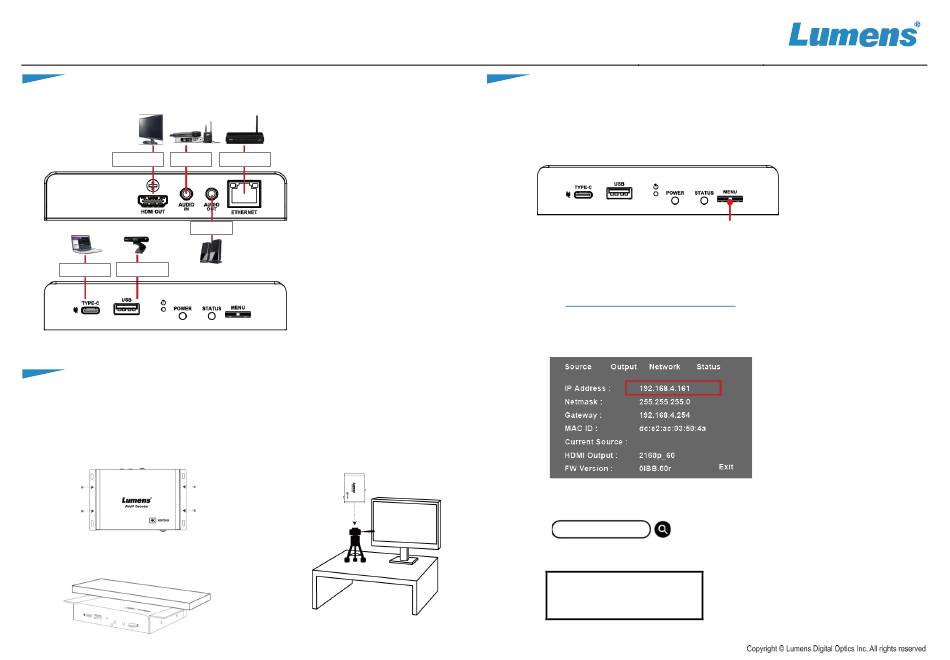

OIP-N60D_OIP-N60D , Dante AV-H
Quick Installation Guide
1. Product connection
HDMI Output
Audio In
Audio Out
USB3.0 Type C
USB3.0 Type A
*Decoder supports PoE (IEEE 802.3af) network switches or USB-C power supply
2. Instruction for Installation
Using the accessory metal plates
(1) Lock the accessory metal plate with
screws (M3 x 4) to the lock holes on both
sides of the decoder
(2) Install the metal plate and decoder
under the table according to the spatial
area
Ethernet
Use tripod
The camera can be mounted on a 1/4"-20
UNC PTZ tripod deck by using the lock
holes on the side for the tripod of decoder
www.MyLumens.com
3. Operation Methods
Operate through the body button
Connect the HDMI OUT to the display, press the Menu dial to enter the OSD
menu. Through the Menu dial to navigate the menu and adjust the parameters.
Left/Right rotation: Adjust parameters and navigate the menu
Press: Perform "confirm" action
Operate via webpages
Confirm the IP address
3.1
Refer to
Operate through the body
(If the decoder is directly connected to the computer, the default IP is
192.168.100.200. Please manually set the computer's IP address in the same
network segment.)
Open the browser and input the IP address, e.g. 192.168.4.161, to access the
3.2
login interface.
192.168.4.161
Please enter the account / password to log in
3.3
Account:admin
Password:9999
button, confirm the IP address in Status
