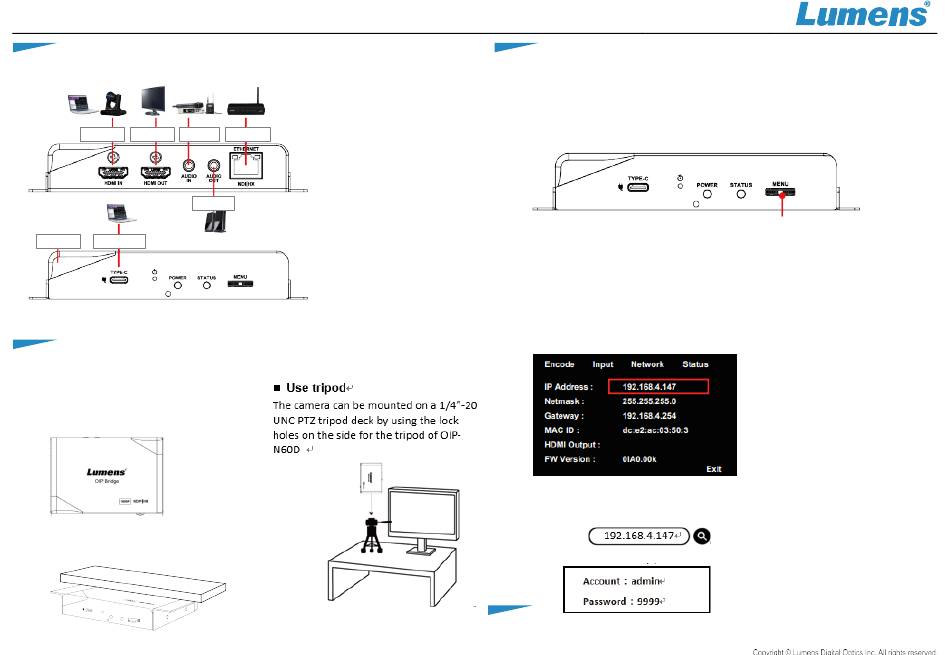

Lumens OIP-N40E Bridge Quick Installation Manual

OIP-N40E Bridge Quick Installation Guide
1. Product connection
HDMI Output Audio In
HDMI Input
Tally Light USB3.0 Type C
*OIP-N40E supports PoE (IEEE 802.3af) network switches or USB-C power supply
2. Instruction for Installation
Using the accessory metal plates

(1) Lock the accessory metal plate with screws (M3 x 4)
to the lock holes on both sides of the OIP-N40E
(2) Install the metal plate and OIP-N40E under the
table according to the spatial area
Ethernet
Audio Out
www.MyLumens.com
3. OIP-N40E Operation Methods
Operate through the body button

Connect the HDMI OUT to the display, press the Menu dial to enter the
OSD menu. Through the Menu dial to navigate the menu and adjust the
parameters.
Left/Right rotation: Adjust parameters and navigate the menu

Press: Perform "confirm" action

Operate via webpages

3.1 Confirm the IP address
Refer to Operate through the body button, confirm the IP address in
Status
(If the OIP- N40E is directly connected to the computer, the default IP is
192.168.100.100. You need to manually set the computer's IP address in
the same network segment.)
3.2
Open the browser and input the IP address, e.g. 192.168.4.147, to access
the login interface.
3.3
Please enter the account / password to log in
4.
HDMI Signal Source Transmission Network
