Lumens LC-RC01 Installation Manual

LC-RC01 Installation Guide
1. Accessory
1.1 M3 x 4 screws x 2 for securing the device
1.2 Quick Installation Guide
2. Installation

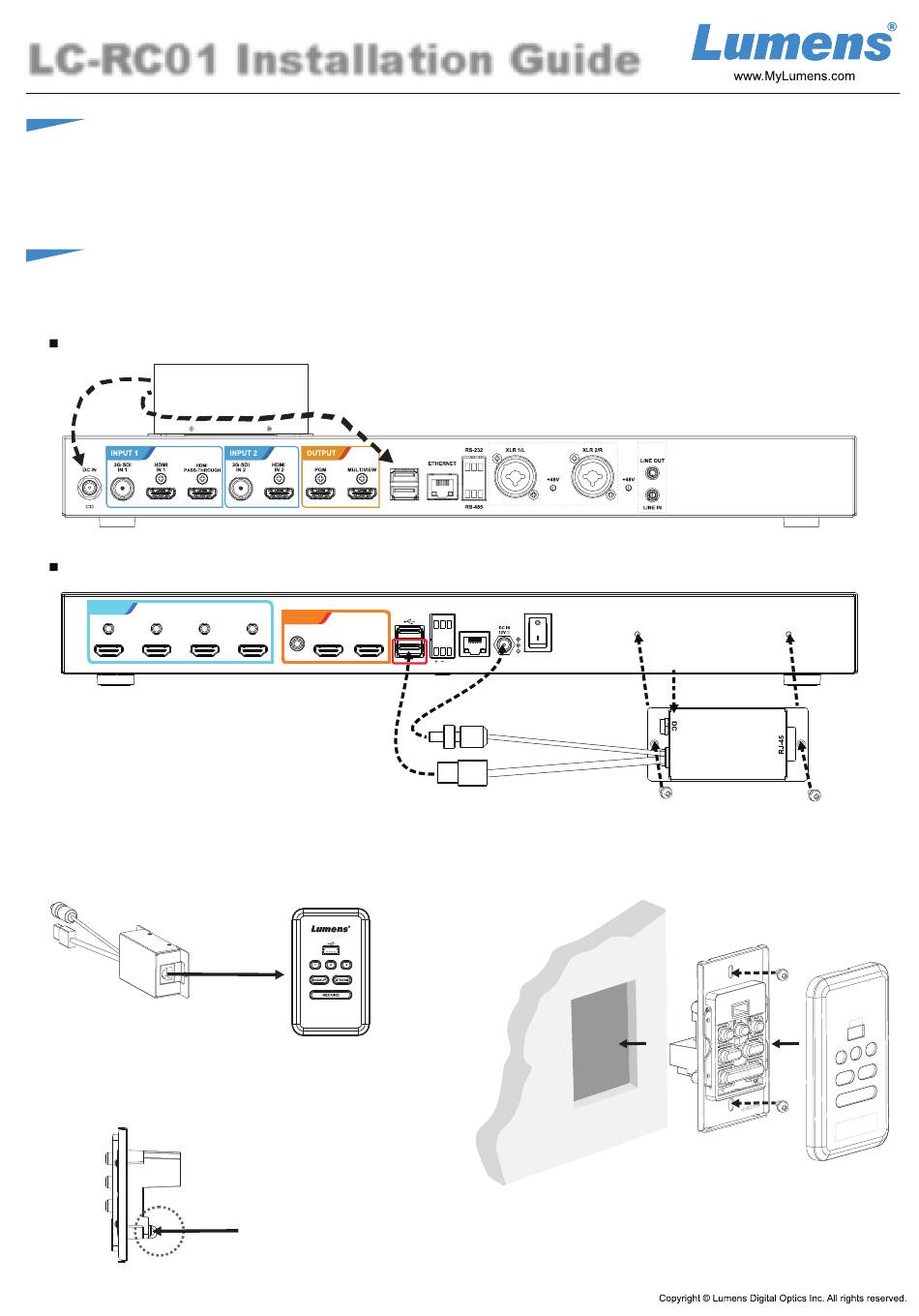

1.Secure the adapter to the media processor with screws and connect the DC power and USB
LC100/ LC100N
LC200
INPUT
Line In 4 Line In 3
HDMI 4 HDMI 3
2. Use the CAT5e network cable for connection
(the length shall not exceed 30 meters)
network cable
3. Pass a cable tie through the mounting hole
to secure the network cable onto the LC-RC01
control box
5100368-53 MAR. 2023
OUTPUT
Line In 2 Line In 1
Line Out
HDMI 2 HDMI 1
HDMI 2 HDMI 1 Program MultiView
Insert to the lower
USB port
CAT5e
Cable tie
USB
RS-232
Power
T R G
Ethernet
G
RS-485
4. Install the control box on the wall
Connect the power
adapter of LC200
