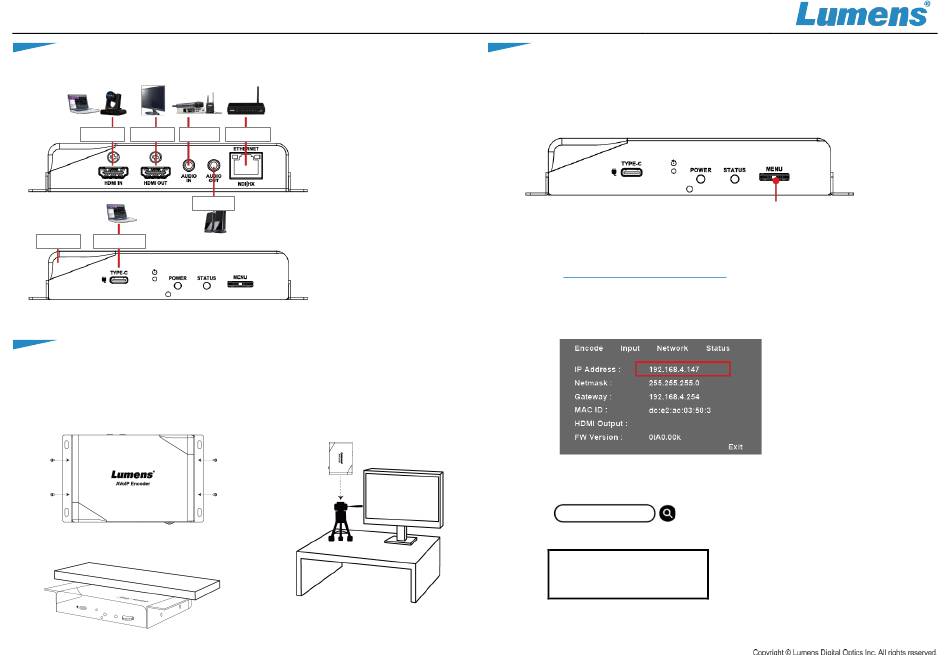

Lumens OIP-N40E Quick Installation Manual

OIP-N40E Quick Installation Guide
1. Product connection
HDMI Output Audio In
HDMI Input
Tally Light USB3.0 Type C
*OIP-N40E supports PoE (IEEE 802.3af) network switches or USB-C power supply
2. Instruction for Installation

Using the accessory metal plates
(1) Lock the accessory metal plate with screws
(M3 x 4) to the lock holes on both sides of the
encoder
(2) Install the metal plate and encoder under
the table according to the spatial area
Ethernet
Audio Out

Using tripod
The camera can be mounted on a 1/4"-20
UNC PTZ tripod deck by using the lock
holes on the side for the tripod of encoder
www.MyLumens.com
3. OIP-N40E Operation Methods

Operate through the body button
Connect the HDMI OUT to the display, press the Menu dial to enter the OSD menu.
Through the Menu dial to navigate the menu and adjust the parameters.

Left/Right rotation: Adjust parameters and navigate the menu

Press: Perform "confirm" action

Operate via webpages
3.1 Confirm the IP address
Refer to Operate through the body
(If the encoder is directly connected to the computer, the default IP is
192.168.100.100. You need to manually set the computer's IP address in the same
network segment.)
Open the browser and input the IP address, e.g. 192.168.4.147, to access the login
3.2
interface.
192.168.4.147
3.3 Please enter the account / password to log in
Account：admin
Password：9999
button, confirm the IP address in Status
