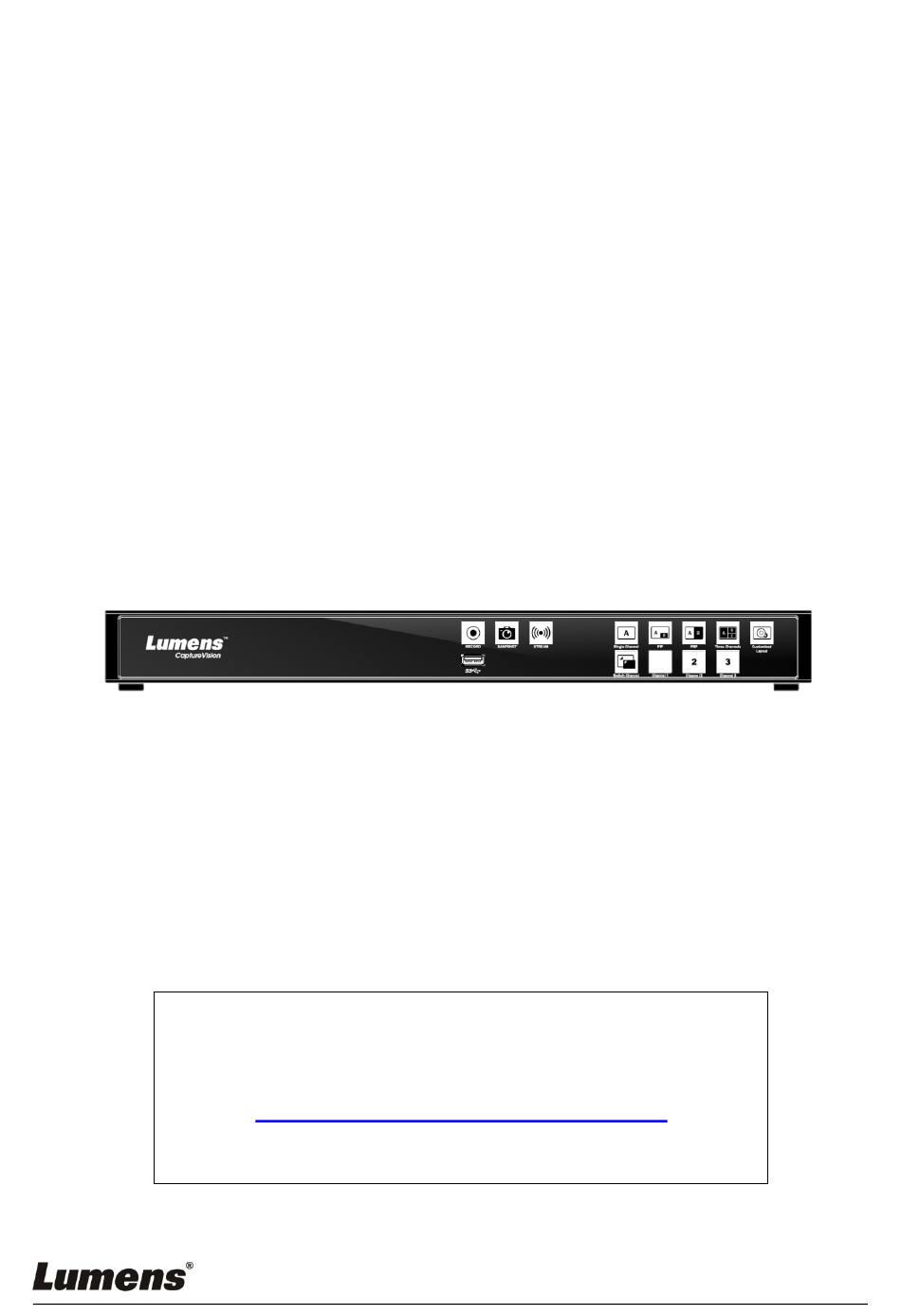

- Page 1 LC200 CaptureVision Station User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ................. 2 Chapter 1 Safety Instructions ..............3 Chapter 2 Package Contents ..............5 Chapter 3 Product Overview ..............6 Front panel ................6 Rear panel ................6 RS-232/RS-485 I/O pin description ........7 Chapter 4 Instruction for installation ............. -
Page 3: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when using the product: 1 Operation Please use the product in the recommended operating environment. Do not place product in tilted position. Do not place the product on an unstable trolley, stand or table. Do not use this product near water or source of heat. - Page 5 EN55032 (CE Radiation) Warning Operation of this equipment in a residential environment could cause radio interference.
-
Page 6: Chapter 2 Package Contents
Chapter 2 Package Contents LC200 Power Adapter Power Cord Appearance may vary depending on country/region RS-232/RS-485 Mounting Metal Plate Quick Installation Guide Connector (x2) (x2) Quick Installation Guide M3x6 Flat Head Screw(x4) -
Page 7: Chapter 3 Product Overview

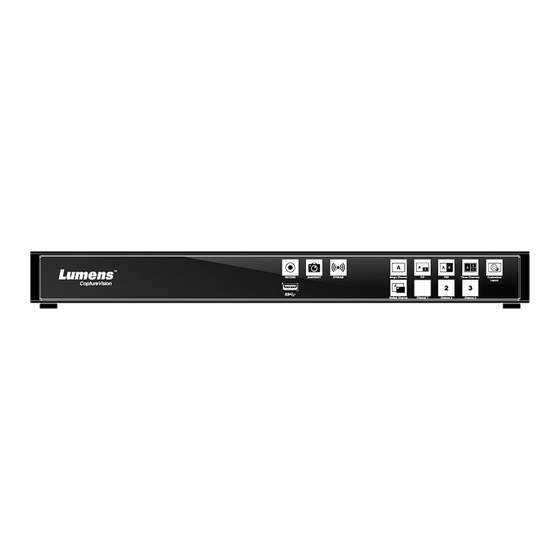

Chapter 3 Product Overview 3.1 Front panel 3.2 Rear panel 14 15 18 19 Name Function Descriptions RECORD Start/Stop recording SNAPSHOT Capture a single photo STREAM On/Off image streaming Single Channel Display a single channel screen Switch to PIP display Switch to PBP display Three Switch to three-channel display... -
Page 8: Rs-232/Rs-485 I/O Pin Description
3.3 RS-232/RS-485 I/O pin description RS-232 Pin NO. Function RS-485 Pin NO. Function T/R+ T/R-... -
Page 9: Chapter 4 Instruction For Installation
Chapter 4 Instruction for installation 4.1 Product connection diagram Display Display Power Cord Router (MultiView) Amplifier (Program) Microphone Power Supply Line/MIC device Audio In HDMI output HDMI Source Input Audio Output RS-232/RS-485 USB Control Control Environment External Control Keyboard/Mouse Equipment Camera Speaker Digital Presenter... -
Page 10: Chapter 5 Function Description
Chapter 5 Function Description 5.1 Real-time operation menu Connect the HDMI1 MultiView output to the display panel to show the real-time operation menu Connect the keyboard/mouse through the USB port and use the keyboard/mouse to select the menu settings Icon Name Function Descriptions Parameter... -
Page 11: Parameter Setting
5.2 Parameter setting This Section provides descriptions of the web-based interface to control the display items. HDMI MultiView only provides items of [System Settings] and [Video Settings]. 5.2.1 System Settings 5.2.1.1 System Settings You may set up the device’s basic information, initial date and time, and others here. - Page 12 generated ※File format: File format: PNG File Size (Max.): 3 MB Resolution Size (Max.): 1920 x 1080 Click [Apply] to save this change. If you need to select another file, click [Cancel] and reselect a file [Remark] You can select different system frame rates in the frame rate mode that affects the supported recording mode and network streaming number.
- Page 13 manually enter network information Select and fill in required network setting information and click [Apply] to save the settings ※The system will restart after changing network setting. Please connect and log in again 5.2.1.3 Services Item Function Descriptions Main firmware information and update Main Firmware Click [Update] and select the main firmware file to update Secondary...
- Page 14 5.2.1.4 Setting File You can export the configuration files of the device to a computer, and import the configuration files to another device to apply the same configuration. Item Function Descriptions Export Export the current configuration of LC200 as a configuration file Import Import the exported configuration files from a LC200 to another LC200 5.2.1.5 Display Settings...
- Page 15 5.2.2 Account You can manage accounts for 3 kinds of user mode here: modify the user name and password to [System Management], [Director], and [Content Management]. Item Username/Password Function Descriptions System admin / admin Sets up the permission of main system management Management Manages playback and changes simple basic image Director...
- Page 16 Function Descriptions Click [Refresh] and automatically scan the network cameras in the same LAN Click [Login Verification] and enter login information to connect the camera Lumens Network Network Camera Camera Account: admin Password: 9999 Once the status display “OK”, indicating that the image can be set under the signal source input selection.
- Page 17 5.2.4 Video Settings 5.2.4.1 Record Settings Item Function Descriptions Recording Mode: You can select Movie Mode (MP4) and Movie/Resource Mode (MP4) Movie Mode: Only record the single PGM 4-channel composite screen Resource Mode: Can record the single PGM 4-channel composite screen and 4 signal source screens ...
- Page 18 5.2.4.2 Streaming Settings You may change the streaming settings here. Related settings must follow the streaming protocol and the settings recommended by server system support. Item Function Descriptions Encode Profile: 6 default encoding formats are available to be selected by resolutions and average bitrate (Please refer to 5.2.4.1 for the Encoder Settings instructions of Encode Profile in Network Settings).
- Page 19 5.2.5 Scene LC200 provides 5 overlay styles, 5 background images, and 5 scenes. You can also add your own styles. Item Function Descriptions Select and delete overlay style. You can upload files to apply. Click [ ] and select a desired file from the window. Check the preview image and file name, and click [Apply] to start uploading and applying this overlay style.
- Page 20 PNG format Supported size: 1920 x 1080 Scene is the integration of “Overlay,” “Background Image,” and “Recording Layout,” which provides the scene made of different background images, layout, and overlay style. You can customize the Scene layout content in 9 scenes. Click [ ] to open scene settings.
- Page 21 Importing calendar periodically You can synchronize schedules from network servers (e.g. Google Calendar) ※Please refer to the videos of How-to series on Lumens™ website and YouTube channels for related application settings. Click [Stop] to stop the current scheduled recording Cancel Recording 5.2.8...
- Page 22 Upload Setting Connection Test: Click [Connection Test] to test if a connection can be created with the current setting ※ Please refer to the videos of How-to series on Lumens™ website and YouTube channels for related application settings. 5.2.9 About...
-
Page 23: Director
5.3 Director LC200 is built in Director, which allows you to monitor recording and preview the output video from streaming director. Related feature description as below: Item Function Descriptions Channel Signal The drop-down menu of image sources includes 4-channel HDMI source, Selection IP camera, or streaming image REC Record... - Page 24 5.3.1 REC Record Setting Item Function Descriptions Check stream(s) and click recording button to strart streaming Recording while and recording function Streaming Recording Button Record the main screen image Single-channel Streams right away without starting recording function Streaming Button 5.3.2 Audio Source Management Item Function Descriptions...
- Page 25 5.3.4 Camera Setting Item Function Descriptions Camera Select a desired camera to control Preset Setting and Call Click number keys to perform preset settings and calls Direction Control Panel Move the center point to control the shooting direction Zoom In/Zoom Out Zooms in/out the lens Focus Setting Set up auto or manual focus...
-
Page 26: File Management
File management LC200 provides file management feature which can perform the following functions via the file management interface: Upload, download, delete, replay video files and editing recording information. Item Function Descriptions Preview Screen Click desired video files to play and control on the Preview screen Program Screen Display the Director screen or switch to synchronize with the Preview screen Screen Switch... - Page 27 5.4.1 Webpage Interface The default page after accessing LC200 web page is system setting page. Click the video management icon on the top-right corner to access video management page. Video management Item Function Descriptions Video Click to access the video management page Management Photo Click to access the the picture management page...
- Page 28 Upload Status Description: Icon Upload Status Icon Upload Status Videos are uploaded Videos are queued for successfully upload Fail to upload videos Videos are uploading Download Check the thumbnails of the videos to download. Click [ ] and the videos will be saved as MP4 video files and datasets.
- Page 29 Photo Management You can manage the photo files captured by pressing SNAPSHOT. Folders will be named with the shooting date automatically; all photos shot in the same date will be stored in the same folder. Just like Video Management, you can also upload, download, and delete photos in Photo Management subpage.
-
Page 30: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting This chapter describes problems you may encounter while using LC200. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. Problems Solutions Boot without power signal...
