YO Vibration Monitor
User guide v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YO Vibration Monitor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOSensi YO Vibration Monitor

Summary of Contents for YOSensi YO Vibration Monitor

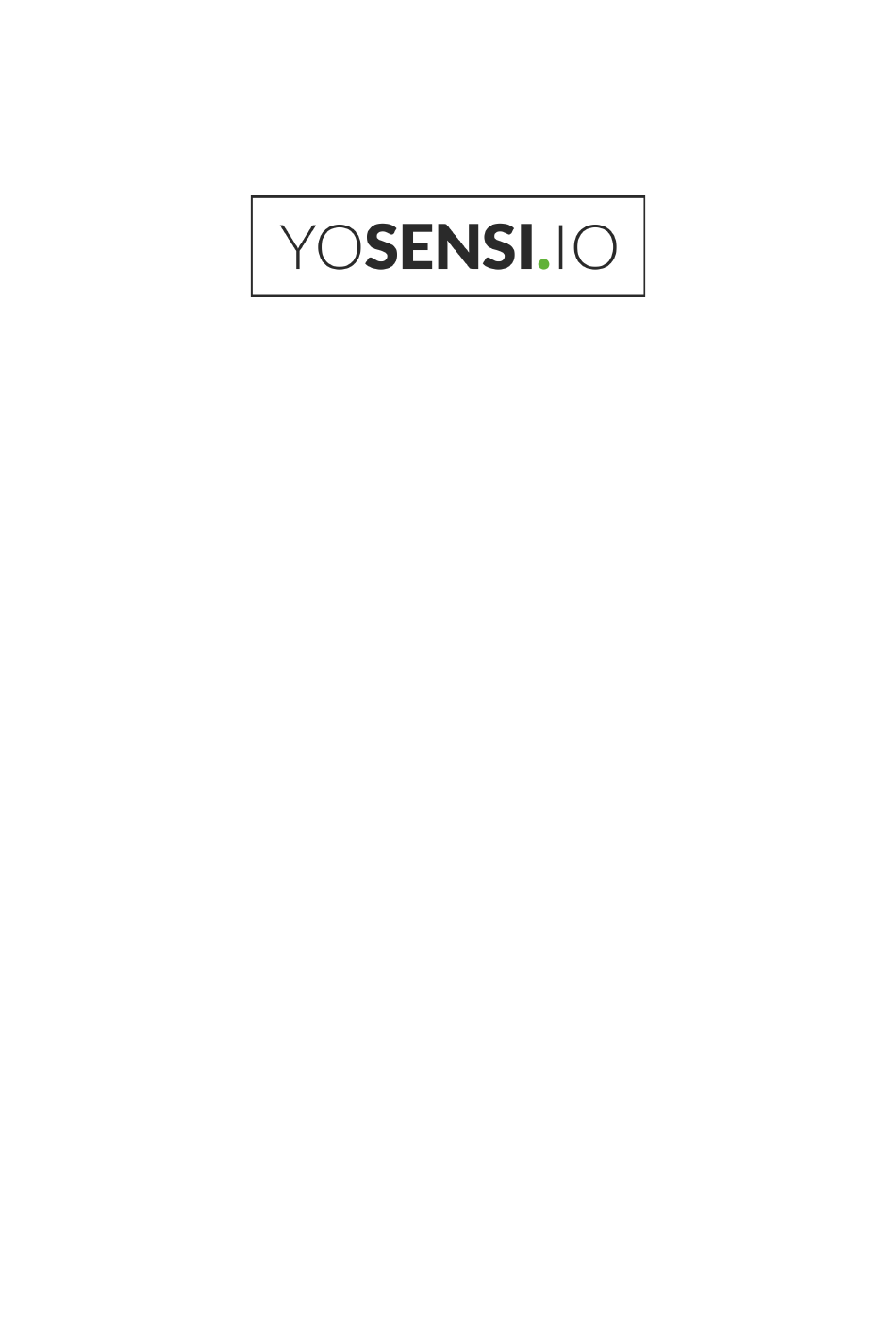

  • Page 1 YO Vibration Monitor User guide v1.0...

  • Page 2: Release Notes

    YO Vibration Monitor User guide v1.0 page 2/36 Release notes Released Version Key changes 17.05.2024 Initial release. www.yosensi.io...

  • Page 3: Table Of Contents

    IoT system components Device configuration Configurable parameters Parameters description Downlink message Node configuration with Yosensi Management Platform Node configuration via Yosensi mobile app Connecting node to the network Yosensi Management Platform configuration Adding a node manually Adding node via Bluetooth...

  • Page 4: Product Description

    4/36 Product description Overview YO Vibration Monitor is a device for monitoring vibrations in electric motors. The vibration sensor includes an accelerometer and a temperature sensor. Additionally, the device is equipped with internal temperature and relative humidity sensors. The device uses 3-axis composite measurements to detect vibrations and transmits data via LoRaWAN.

  • Page 5: Physical Interfaces

    LoRaWAN communication: connecting to LoRaWAN network. Buttons The YO Vibration Monitor has a button for resetting the device. Figure 3 shows its placement (next to the LED). To reboot the device, press the reset button for a moment, e.g. with a thin stick.

  • Page 6: Specifications

    YO Vibration Monitor User guide v1.0 page 6/36 Specifications Physical Figure 4 Dimensions of the device. PHYSICAL SPECIFICATION OF THE DEVICE Dimensions Height: 35 mm Width: 67,3 mm Depth: 124,3 mm Colour White Mounting method Horizontal Vertical (can be screwed to the wall)
  • Page 7 YO Vibration Monitor User guide v1.0 page 7/36 Figure 5 Dimensions of the vibration sensor. PHYSICAL SPECIFICATION OF THE VIBRATION SENSOR Dimensions Height: 35 mm Width: 35 mm Depth: 20 mm Colour Grey Mounting method Magnet Mounting (on request) Internal Thread Mounting...

  • Page 8: Operating Conditions

    -3 to 3 0.01 The YO Vibration Monitor is a device with an external port for connecting a vibration module which is equipped with a high precision accelerometer and temperature sensor. The device reads accelerometer data for the X, Y and Z axes and then processes the data to obtain the specific physical measurements used to track vibrations in motors.
  • Page 9 YO Vibration Monitor User guide v1.0 page 9/36 RMS g refers to the measurement of root mean square (RMS) acceleration values along three perpendicular axes: X, Y, and Z. This measurement is commonly used in vibration analysis to quantify the overall intensity of vibrations in different directions.
  • Page 10 YO Vibration Monitor User guide v1.0 page 10/36 RMS Velocity refers to the measurement of root mean square (RMS) velocity values along three perpendicular axes: X, Y, and Z. This measurement is crucial in vibration analysis to assess the effective vibrational energy in different directions.
  • Page 11 YO Vibration Monitor User guide v1.0 page 11/36 Crest Factor refers to the ratio of the peak value to the RMS (Root Mean Square) value of vibration signals measured along three perpendicular axes: X, Y, and Z. This metric is important in vibration analysis to assess the severity of peak events relative to the overall vibration level in different directions.

  • Page 12: Temperature And Relative Humidity

    YO Vibration Monitor User guide v1.0 page 12/36 Kurtosis refers to the measurement of the "tailedness" or extremity of the distribution of vibration signals along three perpendicular axes: X, Y, and Z. This metric is critical in vibration analysis to assess the presence of outliers and the propensity for extreme values in different directions.
  • Page 13 YO Vibration Monitor User guide v1.0 page 13/36 External temperature measurement plays a crucial role in vibration monitoring of electric motors, providing valuable insights into the operational health and condition of the motor. Figure 14 Internal temperature exemplary chart. Figure 15 Internal humidity exemplary chart.

  • Page 14: Battery Condition

    YO Vibration Monitor User guide v1.0 page 14/36 Battery condition Battery voltage is used to monitor its condition – to spot anomalies (like sudden drop) or its current condition based on voltage drop over time in comparison to initial voltage rating.

  • Page 15: Installation

    YO Vibration Monitor User guide v1.0 page 15/36 Installation Package contents Device (without batteries). External vibration sensor. Warranty card. Safety precautions SAFETY PRECAUTIONS SYMBOL DESCRIPTION Device is marked with a symbol saying that electrical and electronic products may not be mixed with unsorted household waste. Remember that batteries used to power the device must be treated at a specialized treatment facility.

  • Page 16: Installation Guide

    YO Vibration Monitor User guide v1.0 page 16/36 Installation guide 1. Connect the sensor to the D-Sub socket on the device. Ensure that the connector is tightened on both sides. Figure 18 Connecting sensor to the device. Figure 19 Tightening the sensor to the device.
  • Page 17 YO Vibration Monitor User guide v1.0 page 17/36 2. Unscrew the device: remove 4 screws from the enclosure. Figure 20 Back view of the device. 3. Place three LR6 (AA) batteries in the device according to the polarity indicated on the battery holder.
  • Page 18 YO Vibration Monitor User guide v1.0 page 18/36 4. Assemble the device and screw it back together. 5. The device has an M5 thread. When placing an order, you can choose a different mounting option than the default one (magnet or external thread). Below are several recommended options for mounting the vibration sensor.
  • Page 19 YO Vibration Monitor User guide v1.0 page 19/36 B. Internal Thread Mounting: Attach a screw fitting the M5 thread to the surface of the motor and screw the vibration sensor into it according to the X, Y, Z axes marked on the sensor enclosure.
  • Page 20 YO Vibration Monitor User guide v1.0 page 20/36 C. External Thread Mounting: Attach an M5 thread fitting the screw in the device to the surface of the motor. Mount the vibration sensor on the electric motor according to the X, Y, Z axes marked on the sensor enclosure.

  • Page 21: Operation

    3. Server – in most cases, a cloud-based service where data is processed, stored, analysed, and presented in user-friendly ways (via a user interface); Yosensi default and recommended tools are Yosensi Management Platform (for IoT structure management) and Grafana (for data presentation).

  • Page 22: Device Configuration

    (generic): configuration data for LoRaWAN connection, ble (generic): bluetooth settings, device (dynamic): individual configuration for a specific device (this section’s structure differs for each device), Sample configuration file for the YO Vibration Monitor device. "info": { "devmodel": "LNVM", "fwver": "1.0.0", "loraradio": "SX1261",...
  • Page 23 YO Vibration Monitor User guide v1.0 page 23/36 GENERICS PARAMETERS SECTION NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE devmodel Device name LNVM fwver Firmware version 1.0.0 loraradio Radio chipset model SX1261 info lorawanver LoRaWAN stack version 1.0.2 loraregion LoRaWAN region...

  • Page 24: Parameters Description

    YO Vibration Monitor User guide v1.0 page 24/36 DEVICE PARAMETERS NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE measinterval Measuring and sending interval 60* –999999 3600 LoRa [s] 60* - OTAA minimum 60 [s], ABP minimum 120 [s] Parameters description nwktype: used for setting the device in public or private network type.

  • Page 25: Downlink Message

    YO Vibration Monitor User guide v1.0 page 25/36 AU915 Sub-band 2; 916.8 - 918.2 MHz; channels 8-15 Sub-band 3; 918.4 - 919.8 MHz; channels 16-23 Sub-band 4; 920.0 - 921.4 MHz; channels 24-31 Sub-band 5; 921.6 - 923.0 MHz; channels 32-39 Sub-band 6;...

  • Page 26: Node Configuration With Yosensi Management Platform

    YO Vibration Monitor User guide v1.0 page 26/36 Node configuration with Yosensi Management Platform Connect to the device as follows: 1. Log in at app.yosensi.io. 2. You’ll see the dashboard organization view. Go to the Application section in the sidebar.

  • Page 27: Node Configuration Via Yosensi Mobile App

    IoT systems management (like the root directory in operating systems). It can be created only by Yosensi staff, and all clients using Yosensi Management Platform have one created for them by default. In case of any questions, you can find us at support@yosensi.io.

  • Page 28: Adding A Node Manually

    Select a model that is compatible with your device — this choice affects the number of charts and data source (YO Vibration Monitor). You can also set the node’s ‘Location’ , if locations have been pre-defined. If you haven’t defined a suitable location, leave this field set at <None>.
  • Page 29 YO Vibration Monitor User guide v1.0 page 29/36 Figure 32 Adding node to the Yosensi Management Platform section view. www.yosensi.io...
  • Page 30 5. New nodes must be added in OTAA mode. Nodes can be switched to ABP mode after activation in the Yosensi Management Platform by changing the Node configuration. Click on the link in the ‘Node Name’ column. Go to the ‘KEYS’ tab and switch ‘LoRa Type’ from OTAA to ABP and fill in the blank spaces, then press update.

  • Page 31: Adding Node Via Bluetooth

    ‘DETAILS’ tab (‘Node Name’ column link) and clicking ‘CHARTS’ . Adding node via Bluetooth 1. Log in at app.yosensi.io. 2. You’ll see the default organization view. To switch to another organization, click on the user avatar in the right top corner and select ‘Switch Organization’ .

  • Page 32: Payload Decoder

    Extended documentation of the protocol can be found in the Payload description on our website. An example payload produced by YO Vibration Monitor is presented below with divisions for each measurement and marked with decoded values, whose interpretation is described in the Payload description.
  • Page 33 YO Vibration Monitor User guide v1.0 page 33/36 Sixth measurement (accelerometer - Peak g X/Y/Z) 0x43 0x00 0x15 0x01 0x00 0x63 0x00 0xbf 0x00 0x7a type = 16, addr_len = 1, val = 99 val = 191 val = 122...
  • Page 34 YO Vibration Monitor User guide v1.0 page 34/36 Payload header 0x02 0x3f 0x00 0x3c ver = 2 cnt = 63 pct [s] = 60 First measurement (accelerometer - Velocity RMS X/Y/Z ) 0x42 0x00 0x15 0x06 0x00 0x31 0x00 0x71...

  • Page 35: Compliance Statements

    YO Vibration Monitor User guide v1.0 page 35/36 Compliance statements www.yosensi.io...
  • Page 36 YO Vibration Monitor User guide v1.0 page 36/36 www.yosensi.io...
