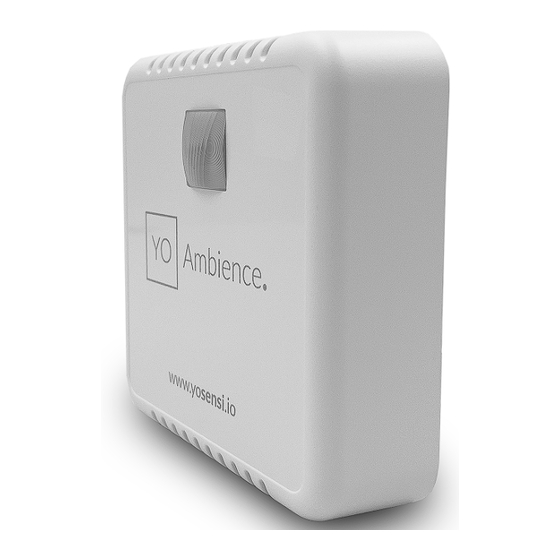

YO Ambience
User guide v1.0

Advertisement

Table of Contents
loading

Related Manuals for YOSensi YO Ambience

Summary of Contents for YOSensi YO Ambience

  • Page 1 YO Ambience User guide v1.0...

  • Page 2: Release Notes

    YO Ambience User guide v1.2 page 2/27 Release notes Released Version Key changes 25.08.2023 Initial release. www.yosensi.io...

  • Page 3: Table Of Contents

    Safety precautions Installation guide Operation IoT system components Device configuration Configurable parameters Parameters description Configuration node with Yosensi Management Platform Connecting node with network Yosensi Management Platform configuration Adding node manually Adding node via bluetooth Payload decoder Compliance statements www.yosensi.io...

  • Page 4: Product Description

    CO levels . Intended for use in offices, stores, classrooms, hospitals, and more, the YO Ambience device provides valuable insights into indoor conditions. The YO Ambience device is an ideal solution for assessing and maintaining optimal indoor environments, enhancing occupant comfort, productivity, and overall well-being.

  • Page 5: Buttons

    YO Ambience User guide v1.2 page 5/27 Buttons YO Ambience is equipped with one reset button inside the device. Specifications Physical Figure 3 Dimensions of the device. PHYSICAL SPECIFICATION Dimensions Height: 25.5 mm Width: 86 mm Depth: 86 mm Colour...

  • Page 6: Operating Conditions

    YO Ambience User guide v1.2 page 6/27 Operating conditions OPERATING CONDITIONS Temperature 0° to 70°C Humidity 0 to 90% Placement Indoor use Power supply 3 x LR6 (AA) battery (3 x 1,5 V) Power consumption Maximum 120 mA DC (4,5 V DC)

  • Page 7: Illuminance

    YO Ambience User guide v1.2 page 7/27 Figure 5 Internal humidity example chart. Illuminance The illuminance sensor measures the value of light intensity, which is used to determine if there is a proper amount of light in the room. Figure 6 Example of illuminance monitoring chart.

  • Page 8: Battery Condition

    YO Ambience User guide v1.2 page 8/27 Battery condition Battery voltage is used to monitor the device condition and spot anomalies (e.g., a sudden drop) or determine the current condition based on the voltage drop over time compared with the initial voltage rating.

  • Page 9: Installation

    YO Ambience User guide v1.2 page 9/27 Installation Package contents Device (without batteries). Warranty card. Safety precautions SAFETY PRECAUTIONS SYMBOL DESCRIPTION Device is marked with a symbol saying that electrical and electronic products may not be mixed with unsorted household waste. Remember that batteries used to power the device must be treated at a specialized treatment facility.

  • Page 10: Installation Guide

    YO Ambience User guide v1.2 page 10/27 Installation guide 1. To open the enclosure, peel off the lower part, as shown in Figure 9. Figure 9 Device opening instructions. www.yosensi.io...
  • Page 11 YO Ambience User guide v1.2 page 11/27 2. Place three LR6 batteries in the device according to the polarity indicated on the battery holder. Figure 10 Device with placed batteries. 3. There are two ways to mount the device into a wall.
  • Page 12 YO Ambience User guide v1.2 page 12/27 B. Fit two mounting screws into the centre of the bottom case. Then, angle the bottom of the enclosure and turn it clockwise. Figure 12 Mounting the device using two screws at an angle.
  • Page 13 YO Ambience User guide v1.2 page 13/27 4. Place the upper part of the device enclosure on the bottom part mounted on a wall. Figure 14 Placing device on the wall. www.yosensi.io...

  • Page 14: Operation

    3. Server – in most cases, a cloud-based service where data is processed, stored, analysed, and presented in user-friendly ways (via a user interface); Yosensi default and recommended tools are Yosensi Management Platform (for IoT structure management) and Grafana (for data presentation).

  • Page 15: Device Configuration

    (generic): configuration data for LoRaWAN connection, ble (generic): bluetooth settings, device (dynamic): individual configuration for a specific device (this section’s structure differs for each device), Sample configuration file for the YO Ambience device. "info": { "devmodel": "LNAB", "fwver": "3.5.0", "loraradio": "SX1261",...
  • Page 16 YO Ambience User guide v1.2 page 16/27 GENERICS PARAMETERS SECTION NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE devmodel Device name LNAB fwver Firmware version 3.5.0 loraradio Radio chipset model SX1261 info lorawanver LoRaWAN stack version 1.0.2 loraregion LoRaWAN region...

  • Page 17: Parameters Description

    YO Ambience User guide v1.2 page 17/27 DEVICE PARAMETERS NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE measinterval Measuring and sending interval 1–999999 3600 LoRa [s] co2calibval Calibration value of CO sensor 0 - 9999 tempoffset Temperature offset in [°C] -20.0 - 20.0...
  • Page 18 YO Ambience User guide v1.2 page 18/27 UPLINK SUBBAND REGION DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE EU868 Sub-band 1; 867.1 - 868.5 MHz; channels 0-7 Sub-band 1; 902.3 - 903.7 MHz; channels 0-7 Sub-band 2; 903.9 - 905.3 MHz; channels 8-15 Sub-band 3;...

  • Page 19: Configuration Node With Yosensi Management Platform

    Now you can change them in the section ‘ device ‘ . Figure 17 Update configuration section view. 6. Press the upload button and wait NOTE Additional information including device configuration can be found in Yosensi configuration web tool. www.yosensi.io...

  • Page 20: Connecting Node With Network

    IoT systems management (like the root directory in operating systems). It can be created only by Yosensi staff, and all clients using Yosensi Management Platform have one created for them by default. In case of any questions, you can find us at support@yosensi.io.
  • Page 21 Select a model that is compatible with your device — this choice affects the number of charts and data source (YO Ambience). You can also set the node’s ‘Location’ , if locations have been pre-defined. If you haven’t defined a suitable location, leave this field set at <None>.
  • Page 22 5. New nodes must be added in OTAA mode. Nodes can be switched to ABP mode after activation in the Yosensi Management Platform by changing the Node configuration. Click on the link in the ‘Node Name’ column. Go to the ‘KEYS’ tab and switch ‘LoRa Type’ from OTAA to ABP and fill in the blank spaces, then press update.

  • Page 23: Adding Node Via Bluetooth

    ‘DETAILS’ tab (‘Node Name’ column link) and clicking ‘CHARTS’ Adding node via Bluetooth 1. Log in at app.yosensi.io. 2. You’ll see the default organization view. To switch to another organization, click on the user avatar in the right top corner and select ‘Switch Organization’ .

  • Page 24: Payload Decoder

    Extended documentation of the protocol can be found in the Payload description on our website. An example payload produced by YO Ambience is presented below with divisions for each measurement and marked with decoded values, whose interpretation is described in the Payload description.

  • Page 25: Compliance Statements

    YO Ambience User guide v1.2 page 25/27 Compliance statements www.yosensi.io...
  • Page 26 YO Ambience User guide v1.2 page 26/27 www.yosensi.io...
  • Page 27 YO Ambience User guide v1.2 page 27/27 www.yosensi.io...
