Summary of Contents for CareCo Rubix

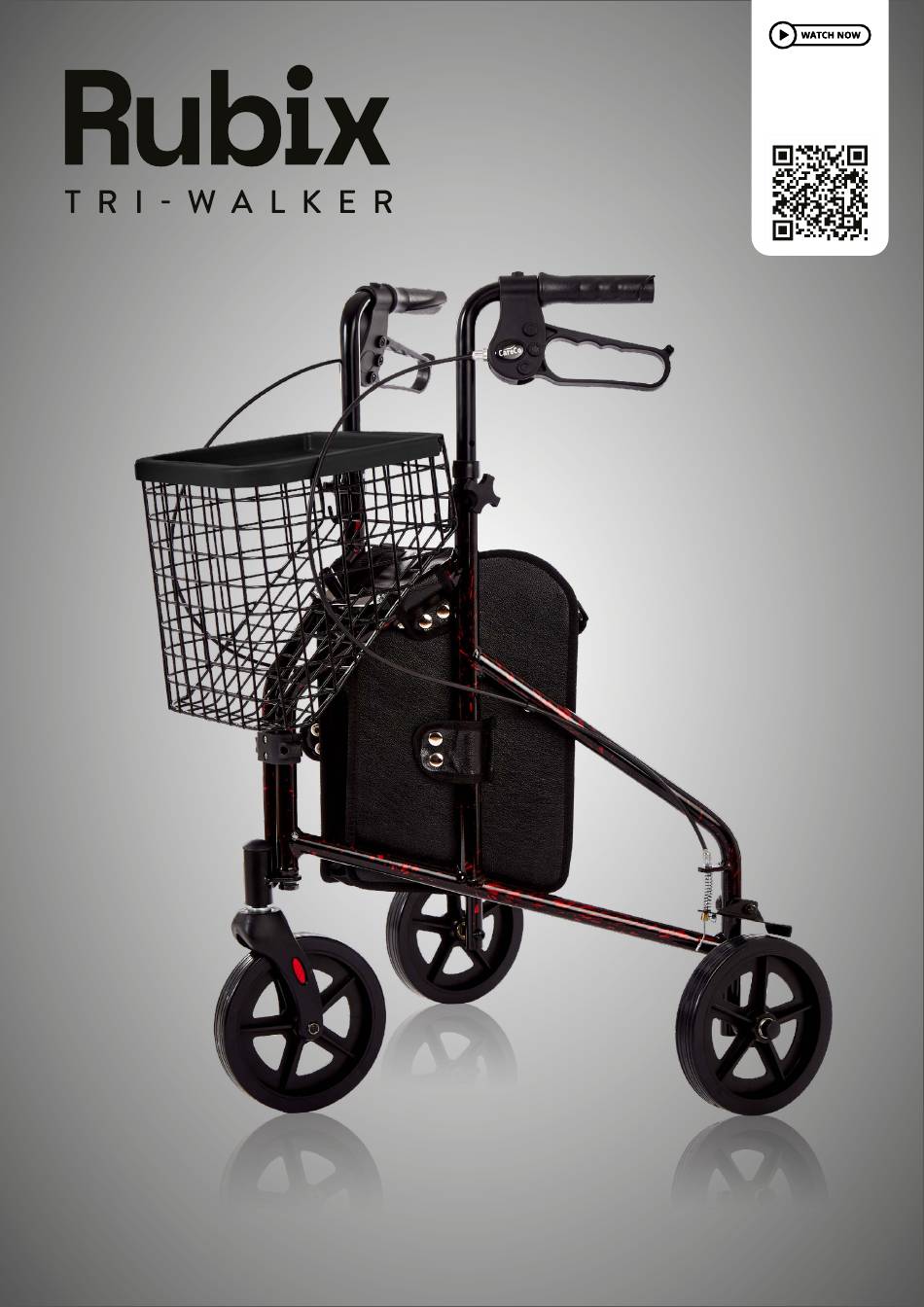

- Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL WA01010008 PRODUCT CODE:...

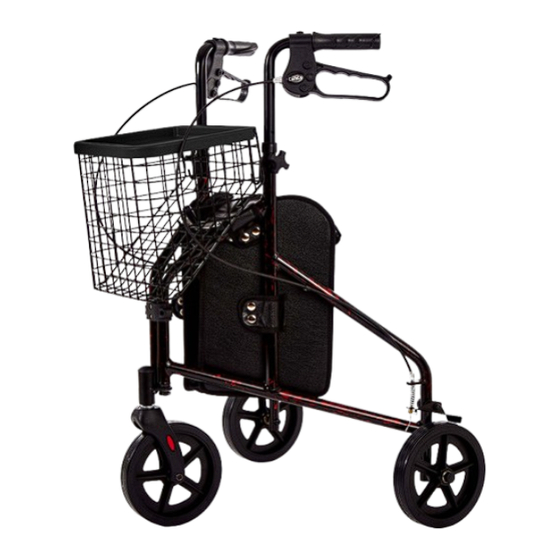

- Page 2 INTRODUCING YOUR NEW RUBIX TRI WALKER Whether you’re navigating busy shopping centres or simply moving around the home, you can feel at ease knowing you’re supported by the Rubix Tri-Walker. It’s lightweight aluminium frame, spacious storage bag and removeable basket make this tri- walker the go-to reliable aid for any occasion.
- Page 3 We recommend that you keep this user manual in a safe place for future reference. If you have any questions about use, maintenance, or safety, please contact CareCo. KEY DEFINITIONS This user manual contains warnings and suggestions marked with the following symbols: WARNING! Highlights a potentially hazardous condition/situation for the user and/or product.
-
Page 4: Table Of Contents
WA01010008 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR RUBIX TRI-WALKER HOW TO USE YOUR TRI-WALKER USER INSTRUCTIONS APPLYING THE BRAKES FOLDING & UNFOLDING COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT ACCESSORIES BASKET TRAY TRANSPORTATION & STORAGE TRANSPORTATION... - Page 5 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS PRODUCT REISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...
-
Page 6: Getting Started
WA01010008 PRODUCT CODE GETTING STARTED CARTON CONTENTS Contact CareCo immediately if ITEM NUMBER DESCRIPTION QUANTITY any of the listed contents are Rubix Tri-Walker missing. LHS Handle Assembly We strongly recommend that RHS Handle Assembly you keep the box and internal... -
Page 7: Setting Up Your Rubix Tri-Walker
SETTING UP YOUR RUBIX TRI-WALKER 1. Remove all tri-walker components from 2. Pull the tri-walker frame halves outwards the outer packaging and place them onto to open the tri-walker. a level surface. 3. Push the crossbar handle forwards to lock 4. - Page 8 WA01010008 PRODUCT CODE 5. (OPTIONAL) Place the basket onto the 6. (OPTIONAL) Place the tray on top of the basket hooks. basket. WARNING! Ensure the tri-walker’s handles are level and secure before use. SUGGESTION If for any reason the tri-walker needs to be disassembled, use the set-up instructions as a guide to disassemble the tri-walker.
-
Page 9: How To Use Your Tri-Walker
HOW TO USE YOUR TRI-WALKER USER INSTRUCTIONS WALKING POSITION Walk with the tri-walker close to your body, face forwards and ensure your back is straight. USER CONTROL Hold the handles with a comfortable grip and allow your arms to sit naturally by your side. NEGOTIATING THRESHOLDS &... -
Page 10: Applying The Brakes
WA01010008 PRODUCT CODE APPLYING THE BRAKES STOPPING Gradually squeeze both brake levers to stop the tri-walker. Release the brake levers to start moving again. TURNING Squeeze the left and right brake levers individually to rotate the tri-walker. Release the brake lever to stop rotating. LOCKING Push both brake levers downwards to apply the brake lock. -
Page 11: Folding & Unfolding
FOLDING & UNFOLDING FOLDING 1. Pull the crossbar handle backwards to 2. Push the tri-walker handles inwards to unlock the tri-walker frame. close the tri-walker. UNFOLDING 1. Pull the tri-walker handles outwards to 2. Push the crossbar handle forwards to lock open the tri-walker. -
Page 12: Comfort Adjustments
WA01010008 PRODUCT CODE COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT To set the correct handle height, stand upright behind the tri-walker with arms by side. Adjust the height of the handgrips so they are level with the users’ wrists. 1. Loosen the star knob by turning it anticlockwise, then remove it from the handle bracket. -
Page 13: Accessories
ACCESSORIES ATTACHING Place the bag over the tri-walker frame then secure using the bag fasteners. REMOVING Release the bag fasteners then lift the bag away from the frame. MAX CARRY WEIGHT 5 KG BASKET ATTACHING Place the basket onto the basket hooks. REMOVING Lift the basket away from the basket hooks. -
Page 14: Tray
WA01010008 PRODUCT CODE TRAY ATTACHING Place the tray on top of the basket. REMOVING Lift the tray away from the basket. WARNING! Ensure the tray is flat and secure before transporting items from one location to another. -
Page 15: Transportation & Storage
TRANSPORTATION & STORAGE TRANSPORTATION Ensure the brakes have been applied and any adjustable parts have been properly secured to avoid transit damage. Fold the tri-walker then position it appropriately within the desired vehicle to prevent excess movement. STORAGE Store the product in a cool and dry environment. Do not store in extreme temperatures. WARNING! Storing the product in extreme temperatures can cause premature rusting &... -
Page 16: Looking After Your Tri-Walker
REPAIRS Certain tri-walker components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the tri-walker requires repair due to a defect, contact CareCo immediately. - Page 17 OTHER ADJUSTMENTS BRAKE CABLE ADJUSTMENT Difficulty Level Moderate High Tools Required 8mm Spanner x1 10mm Spanner x1 The user can adjust the brake cable using simple household tools. Loosen the lock nut (A) by rotating it anticlockwise. Adjust the brake cable tension by rotating the brake adjuster (B). Tighten the lock nut (A) by rotating it clockwise.
- Page 18 WA01010008 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) OVERALL WIDTH (MM) OVERALL HEIGHT (MM) 826-926 MAXIMUM/MINIMUM HANDLE HEIGHT (MM) 826-926 FOLDED LENGTH (MM) FOLDED WIDTH (MM) FOLDED HEIGHT (MM) 828-928 FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) CARRY WEIGHT (KG) WEIGHT CAPACITY (KG) BAG/BASKET WEIGHT CAPACITY (KG)
- Page 19 RECYCLING & DISPOSAL Disposal or recycling of the product should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Contact CareCo if further advice is needed regarding recycling & disposal. MATERIAL ALUMINIUM UPHOLSTERY...
- Page 20 WA01010008 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located on the frame underneath the bag. 056059 114347 DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation.
- Page 21 GENERAL WARNINGS Read the following carefully to avoid damage and/or injury caused by improper operation. • Only use the tri-walker for its intended use, incorrect use can lead to hazardous situations. • Only use the tri-walker on even and solid surfaces. •...
- Page 22 The expected lifetime for the Rubix tri-walker is 5 years providing the instructions and information within this user manual are followed. Regular cleaning, lubrication of moving parts, and tightening of loose fixings will prevent premature wear and damage and extend the product’s lifetime.
- Page 23 Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the tri-walker requires repair or replacement as a direct result of: •...
- Page 24 WA01010008 PRODUCT CODE NOTES...
- Page 25 NOTES...
- Page 26 056059 114323 TRI-WALKER...
