Scan me on your
phone camera
to watch our
assembly video.
USER MANUAL
WA01010006
PRODUCT CODE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCONNECT STEALTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CareCo iCONNECT STEALTH

Summary of Contents for CareCo iCONNECT STEALTH

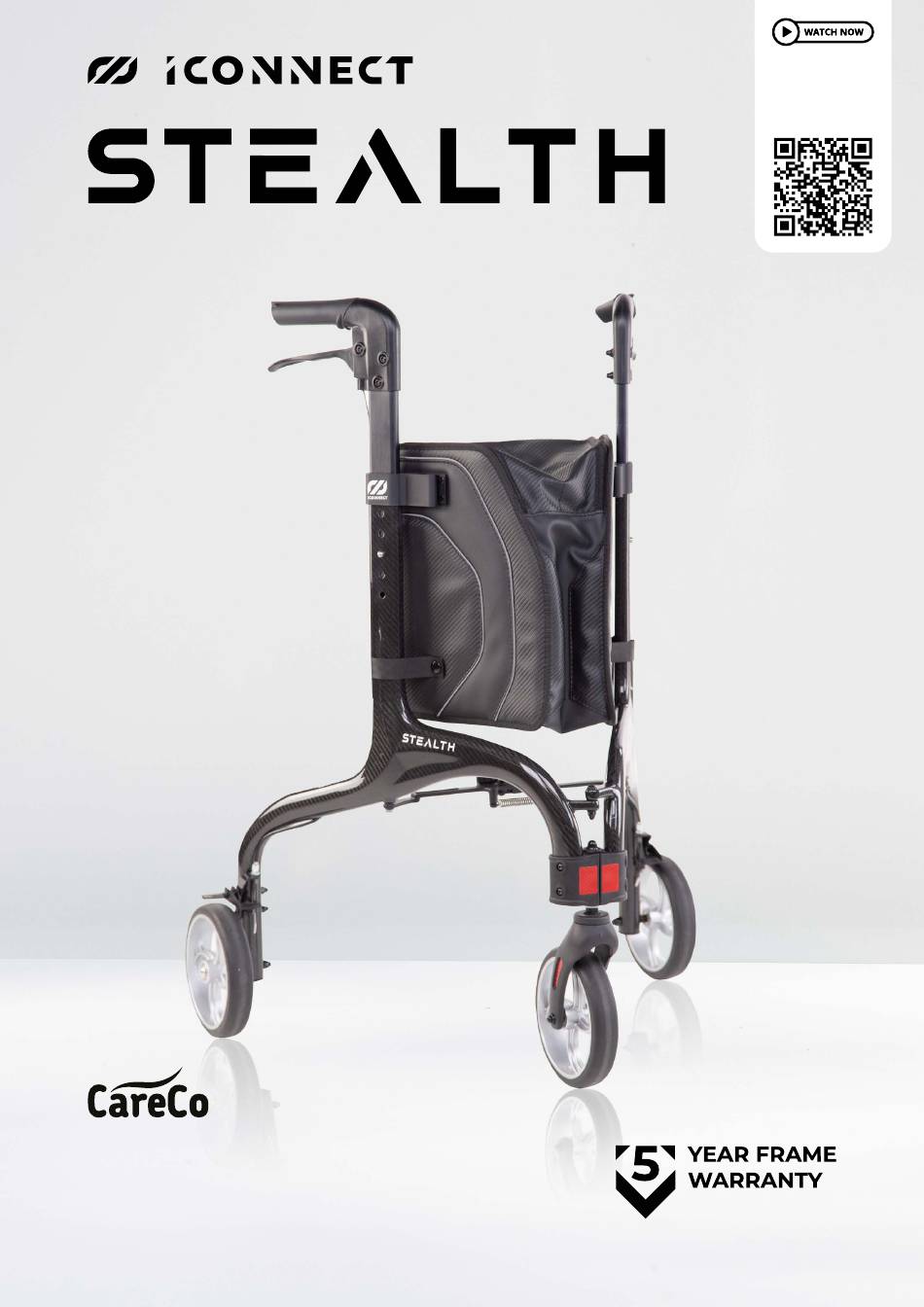

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL WA01010006 PRODUCT CODE...

  • Page 2: Read Before Use

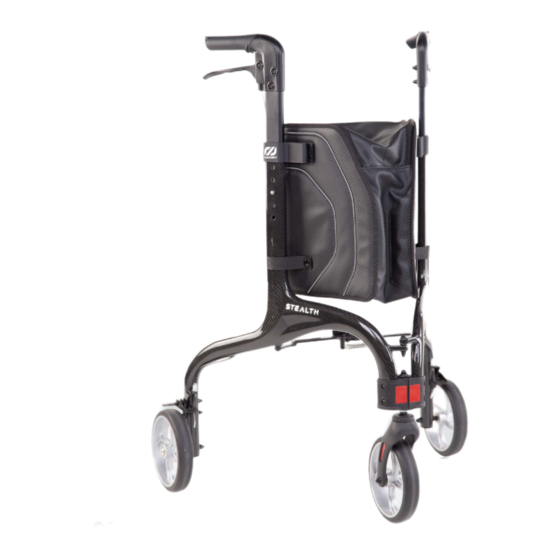

    WA01010006 PRODUCT CODE INTRODUCTION The iCONNECT Stealth Carbon Tri-Walker has been designed to offer increased stability and support to individuals that want to stay active. Its cutting-edge carbon framework delivers strength, style and durability while maintaining a low carry weight.

  • Page 3: Safety Instructions

    QR code with your phone camera to play the video. Visually impaired users can view this manual in PDF format at the following URL: www.careco.co.uk SAFETY INSTRUCTIONS • Only use the tri-walker for its intended use, incorrect use can lead to hazardous situations.

  • Page 4: Parts Description

    WA01010006 PRODUCT CODE PARTS DESCRIPTION 1. Hand Grip 2. Brake 3. Storage Bag 4. Frame 5. Folding Crossbar 6. Front Wheel 7. Rear Wheel 5 KG MAXIMUM CARRY BAG LOAD:...

  • Page 5: Folding And Unfolding

    FOLDING & UNFOLDING FOLDING: Position the tri-walker upright on its wheels. Push the crossbar inwards to release the spring lock. Push both handles together. UNFOLDING: Position the tri-walker upright on its wheels. Pull both handles apart. The crossbar will lock into place.

  • Page 6: Handle Height Adjustment

    WA01010006 PRODUCT CODE HANDLE HEIGHT ADJUSTMENT Press and hold spring button (A) while pulling the handle upwards. When the handle is at the desired height, release spring button (A). An audible “click” will confirm the handle is secure. Repeat on the opposite side. Ensure both handles are level before using the tri-walker.
  • Page 7 ACCESSORIES Attaching Insert the bag clips into the bag mounts on the tri-walker frame. Secure using the bag fasteners Removing Release the bag fasteners Lift the bag upwards to remove it from the frame.

  • Page 8: Cleaning & Hygiene

    WA01010006 PRODUCT CODE HANDLING & TRANSPORTING Carry the tri-walker using the rubber handles and/or areas of the frame that are clear of pinch points. Avoid heavy pressure when transporting the tri-walker. CLEANING & HYGIENE To keep the tri-walker in optimal condition, it should be cleaned regularly with a damp cloth and/or mild soap.
  • Page 9 ADJUSTMENTS BRAKE CABLE ADJUSTMENT Difficulty Level Moderate High Tools Required 10mm Spanner x1 The user can adjust the brake cable using simple household tools. Loosen the lock nut (A) by rotating it anticlockwise. Adjust the brake cable tension by rotating the brake adjuster (B). Tighten the lock nut (A) by rotating it clockwise.

  • Page 10: Specifications

    WA01010006 PRODUCT CODE SPECIFICATIONS Overall Height 900-1000mm Overall Length 560mm Overall Width 690mm Folded Height 900mm Folded Length 650mm Folded Width 260mm Height Adjustable Range 900-1000mm Front Wheel Size 7" Rear Wheel Size 7" Shopping Bag Size (W/H/D) 240 / 333 / 340mm Outer Carton Size (W/H/D) 660 / 940 / 275 mm Loading weight for Shopping Bag...

  • Page 11: Recycling And Disposal

    RECYCLING & DISPOSAL Disposal or recycling of the tri-walker should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Alternatively, contact CareCo for advice on disposal. Materials: Packaging: Aluminium: • Cardboard box • Extension rod •...

  • Page 12: Intended User

    WA01010006 PRODUCT CODE INTENDED USE To provide additional stability and support to users whilst walking. INTENDED USER To aid any user with mobility limitations to walk independently and safely. INTENDED ENVIRONMENT This product is intended for use both indoors and outdoors on flat, firm surfaces. EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the tri-walker is expected to function according to its intended use.

  • Page 13: Warranty

    WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • FRAME: 5-YEAR LIMITED WARRANTY • DURABLE PARTS: 1-YEAR LIMITED WARRANTY Consumables are not covered under normal warranty circumstances unless they have clearly suffered excessive wear or damage as a direct result of a manufacturing defect.
  • Page 14 970765 972048 970765 972048 TRI-WALKER...
