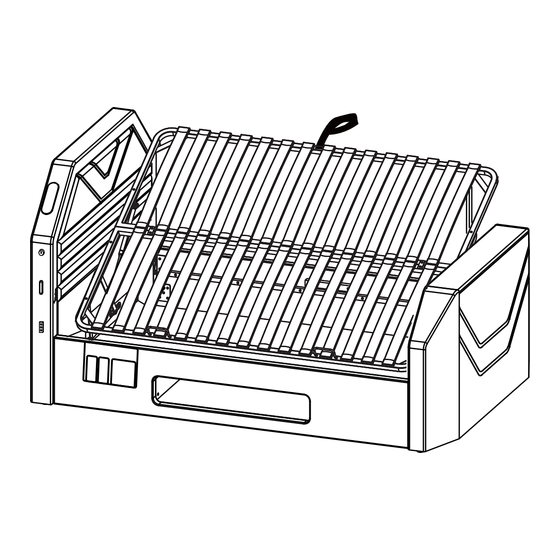

NEBULA TV BED
OTTOMAN FRAME VERSION

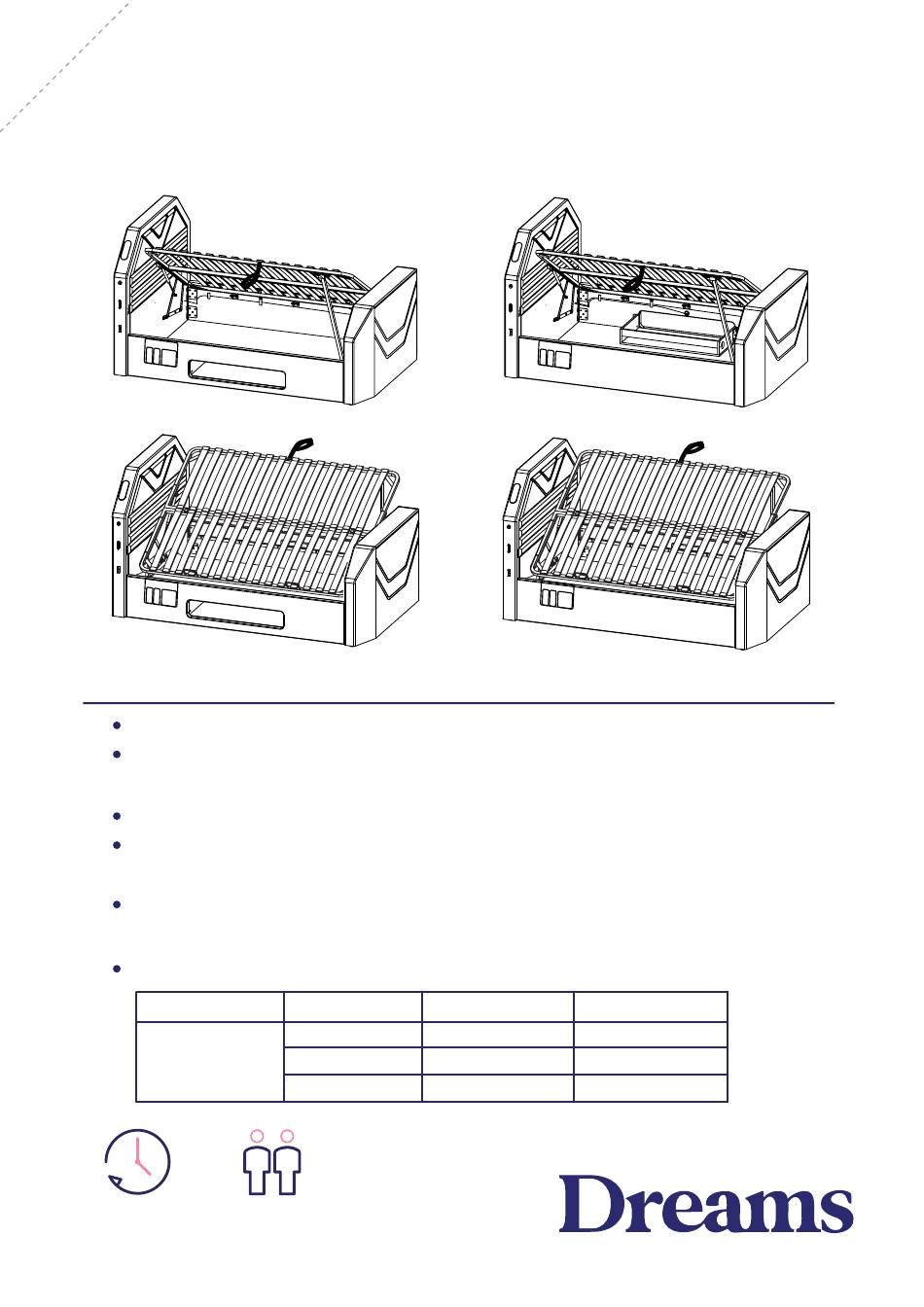

IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
Bed
Nebula
1.5 hour approx
Two person
assembly time
assembly
MK1 230930
Bed Size
Min Weight (kg) Max Weight (kg)
Small Double
Double
King
10
40
10
40
15
45
