DREAMS Nelson Bed Super King Assembly Instructions

Solid/sprung slats

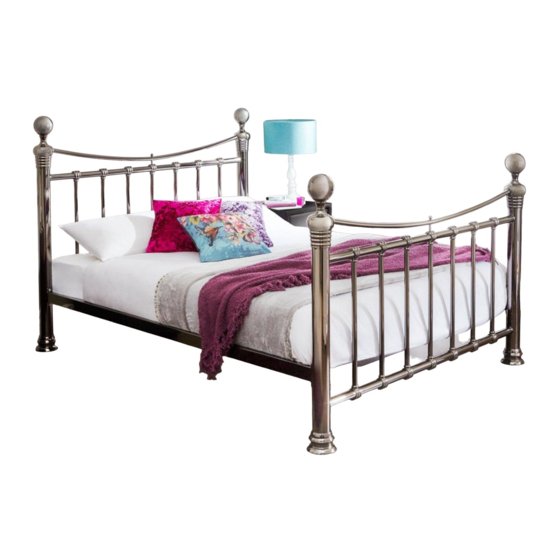

Nelson Bed Super King

Assembly Instructions

Before you

Start, here

are some

helpful

advices.

Revision number 1/1

1. We suggest you spend a short time reading through this leaflet and then follow

the simple step by step instructions.

2. If you follow the instructions carefully the end result should be worth the effort.

3. Do not discard any of the packaging until you have checked that you

have all the parts and the pack of fittings.

4. Assemble this product on a carpet.

5. To ensure an easier assembly, we strongly advise that all fittings are only

finger tightened during initial assembly. Only upon completion of the assembly

should all fixing points be fully tightened.

6. We recommend a periodic check on all fixing points to make sure they remain

fully tightened.

7. Keep glue and fittings out of children's reach.

In the unlikely event that this product has missing or damaged parts, please call

0344 292 0000 to obtain spares

spare

016-00030 (Solid slats)

016-00020 (Sprung slats)

Table of Contents

Need help?

Do you have a question about the Nelson Bed Super King and is the answer not in the manual?

Page 1 016-00030 (Solid slats) Nelson Bed Super King 016-00020 (Sprung slats) Assembly Instructions Before you 1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. Start, here 2. If you follow the instructions carefully the end result should be worth the effort.
Page 2 PARTS Fittings M6× 20mm x 8pcs M6× 35mm x 6pcs M6 × 6pcs Metal Washer x 14 pcs NO. PART LIST (1) Headboard (2) Footboard Plastic Washer x 8 pcs (3) Side Rails (4) Finials Allen key × 2pcs (5) Support Leg Screw x35mmx 1pcs Revision number 1/1...
Page 3 ASSEMBLY STEP1 (1) Use bolt A, washer D and plastic washer E to fix the side rail (3) onto headboard (1) and footboard (2) by using Allen Key (F). (2).Attach the finials (4) onto headboard (1) and footboard (2) by turning it clock-wise. Revision number 1/1...
Page 4 Both slats on "step 2" and "step 3" can be assembled to the bedstead. you can make a choice between the two slats. OPTION"A": DREAMS FIXED WOOD SLATS （ 1）Carefully locate the slats onto the unit,as step 2: Use bolt (B) ,washer D and...
Page 5 ASSEMBLY STEP 3 OPTION"B": DREAMS SPRUNG SLATS (1) Use the bolt to fix support onto slat frame. Please note that these bolts are to be found inside the slat frame box. (2) Carefully locate the slats onto the unit. (3) Use bolt (B) and JCN nut (C) to fix the unit using Allen Key (F).
