Summary of Contents for TechniSat TECHNIRADIO SOLAR 2

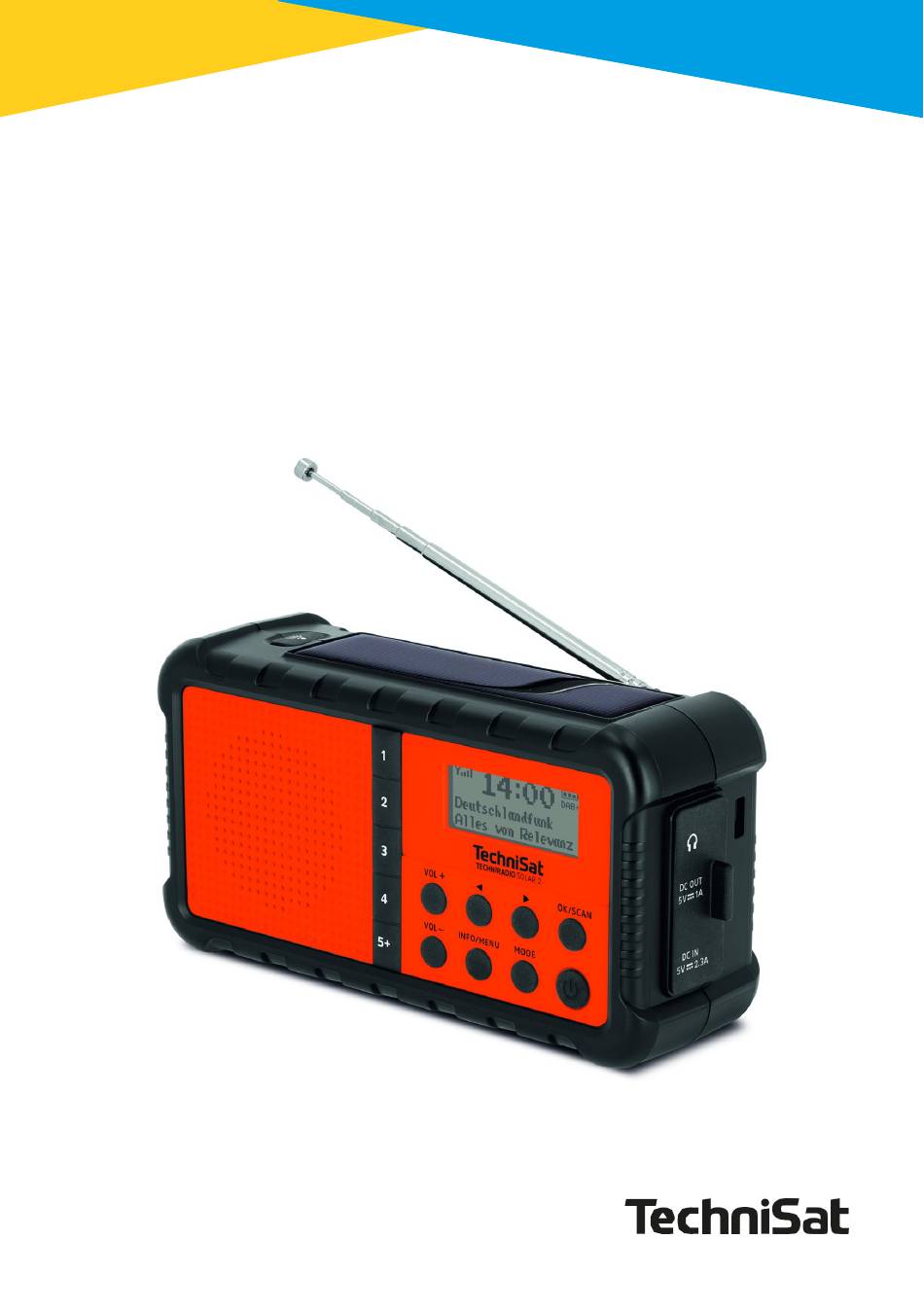

- Page 1 Operating instructions TECHNIRADIO SOLAR 2 Portable DAB+/UKW solar radio...
-
Page 2: Figures
1 Illustrations... -
Page 3: Description Of The
1.1 Description of the Torch Dimmed/bright/off Hand crank Charging the battery Solar panel Charging the battery Telescopic antenna Loudspeaker Direct selection buttons 1...4, 5+ (favourites memory) Display ▶ Press briefly in DAB+ mode: Next station. In FM mode: Increase frequency by 0.05Mhz. Press and hold in FM mode: Station search. -
Page 4: Table Of Contents
Table of contents .................4 Safety instructions ...............6 Characters and symbols used ................6 Intended use......................7 The target group of these operating instructions..........7 Safe handling of the TECHNIRADIO SOLAR 2 ..........7 3.4.1 Legal information ....................9 3.4.2 Service instructions ..................10 Setting up the appliance ..............10 Description of the TECHNIRADIO SOLAR 2 .........11... - Page 5 Manual station search..................18 Search setting ....................18 Storing FM stations in a memory location ............18 Recalling FM stations from a memory location..........18 Overwriting/deleting a programme position memory ........19 System settings and other functions..........19 Sleep timer .......................19 Time and date settings ..................19 9.2.1 Set time/date manually ..................19 9.2.2...
-
Page 6: Safety Instructions
3 Safety instructions 3.1 Characters and symbols used Indicates a safety instruction that can lead to serious injury or death if ignored. Observe the following signal words: DANGER - Serious injuries with fatal consequences WARNING - Serious injuries, possibly fatal ATTENTION - Injuries Indicates a note that you must observe to avoid device defects, data loss/misuse or unintentional operation. -
Page 7: Intended Use
The operating instructions are intended for any person who sets up, operates, cleans or disposes of the appliance. 3.4 Safe handling of the TECHNIRADIO SOLAR 2 Please observe the following instructions to minimise safety risks, avoid damage to the appliance and contribute to environmental protection. - Page 8 Do not operate the appliance near bathtubs, showers, swimming pools or running/splashing water. There is a risk of electric shock and/or device defects. Foreign objects, e.g. needles, coins, etc., must not fall into the interior of the device. Do not touch the connection contacts with metal objects or your fingers. This may result in short circuits.
-
Page 9: Legal Information
EU Declaration of Conformity is available at the following internet address: hGp://konf.tsat.de/?ID=24689 TechniSat is not liable for product damage due to external influences, wear and tear or improper handling, unauthorised repairs, modifications or accidents. Subject to changes and printing errors. Status 10/23. -
Page 10: Service Instructions
> Please note that the appliance feet may leave coloured marks on certain furniture surfaces. Use protection between your furniture and the appliance. > Keep the TECHNIRADIO SOLAR 2 away from devices that generate strong magnetic fields. -
Page 11: Description Of The Techniradio Solar 2
1x operating instructions 1x hand strap 5.2 The special features of the TECHNIRADIO SOLAR 2 The TECHNIRADIO SOLAR 2 consists of a DAB+/UKW receiver with the following functions: You can store up to 10 DAB+ and 10 FM stations. The radio receives on the frequencies FM 87.5-108 MHz (analogue) and DAB+ 174.9-239.2 MHz (digital). -
Page 12: Charge Battery
Connect the supplied USB-C charging cable to the DC-IN 5V socket > (17) on the side, behind the water protection flap of the TECHNIRADIO SOLAR 2. > Connect the USB port to a commercially available 5V, 2.3A USB power supply unit or a USB socket on a PC (min. -
Page 13: Use Headphones
Press the Power button (13) to switch on the TECHNIRADIO SOLAR 2. > 5.4.2 Switch off the device Press the Power button (13) again to switch the TECHNIRADIO SOLAR 2 off > or back to standby mode. 5.4.3 Source selection Use the MODE button (12) to switch between the sources DAB+ (digital radio) >... -
Page 14: Call Up Display Screens
[Audio information], [Time] and [Date]. 6 Menu operation You can access all functions and settings of the TECHNIRADIO SOLAR 2 via the menu using the INFO/MENU buttons, ◀, ▶ and OK. The menu is divided into submenus and, depending on the selected Source different menu items or functions that can be activated. -
Page 15: The Dab+ (Digital Radio) Function
7 The DAB+ (digital radio) function 7.1 What is DAB+ DAB+ is a new digital format that allows you to listen to crystal-clear sound without noise. Unlike conventional analogue radio stations, DAB+ broadcasts several stations on the same frequency. This is called an ensemble or multiplex. An ensemble is made u p of the radio station and several service components or data services, which are broadcast individually by the radio stations. -
Page 16: Recalling Dab+ Stations From A Memory Location
Press OK to save. > Repeat this process to save additional channels. Alternatively: Press and hold one of the direct dialling buttons 1...4 to select a station directly. > to save. 7.2.4 Recalling DAB+ stations from a memory location > To call up a station that you have previously stored in the favourite memory, briefly press the 5+ button and select a favourite memory (1...10) with ◀, ▶. -
Page 17: Delete Inactive Transmitters
Use ◀, ▶ to select the compression rate: > DRC high -High compression DRC low -Low compression DRC off -compression switched off. Confirm by pressing the OK button. > 7.2.8 Delete inactive transmitters This menu item is used to remove old and no longer receivable channels from the channel list. -
Page 18: Manual Station Search
Channel search. 8.4 Manual station search Press the ◀, ▶ buttons several times to set the desired station or frequency. > The display shows the frequency in steps of 0.05 MHz. ▶ Increases the transmission frequency, ◀ decreases it. 8.5 Search setting The sensitivity of the search run can be set in this menu item. -
Page 19: Overwriting/Deleting A Programme Position Memory
Use ◀, ▶ to select the [Sleep timer] entry and press OK. > Use ◀, ▶ to select a time period after which the TECHNIRADIO SOLAR 2 > should switch off. You can choose between Off, 15, 30, 45, 60 and 90 minutes. -
Page 20: Time Update
> Proceed as described above to set the date. After all settings have been made and the last OK > is pressed, [Time Saved] appears on the display. 9.2.2 Time update In this submenu, you can specify whether the time should be updated automatically via DAB+ or FM (FM) or whether you want to enter it manually (point 9.2.1). -
Page 21: Display Brightness
In this case, you can delete all saved channels by resetting to factory settings and then start a new channel search. > Connect the TECHNIRADIO SOLAR 2 to the USB power supply. Press and hold the INFO/MENU button and use ◀, ▶ to select the >... -
Page 22: Sw Version
All previously saved channels and settings are deleted. The device is now in the factory settings. The display shows [Restart...] and the device starts with the language > selection [Language]. Use ◀, ▶ to select one of the available languages and confirm your selection by pressing OK. -
Page 23: Eliminate Errors
Charge the battery. Reception via DAB+/FM is poor. Pull out the antenna completely. Change the position of the antenna or the TECHNIRADIO SOLAR 2. Device cannot be operated. Disconnect the appliance from the mains and reapply power. If you a r e still unable to rectify the fault after the checks described, please contact the technical hotline. -
Page 24: Disposal Instructions
13 Disposal instructions The packaging of your appliance consists exclusively of recyclable materials. Please sort them accordingly and return them to the "Dual System". This product is labelled in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and must not be disposed of with normal household waste at the end of its service life, but must be handed in at a collection point for the recycling of electrical and electronic equipment. - Page 25 Chemical composition of the battery Lithium Cobalt Oxide LiCoO2 41,85% Graphite C24X12 15 % Carbon black 0,79 % Poly(vinylidene fluoride) C2H2F2 1,70 % Lithium hexafluorophosphates LiPF6 10,27 % Polypropylene (C3H6)n 6,27 % Aluminium 4,12 % Copper 10 % Iron 10 %...
