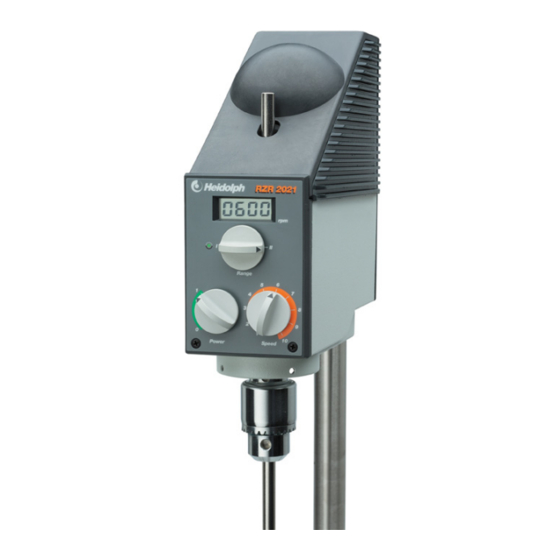

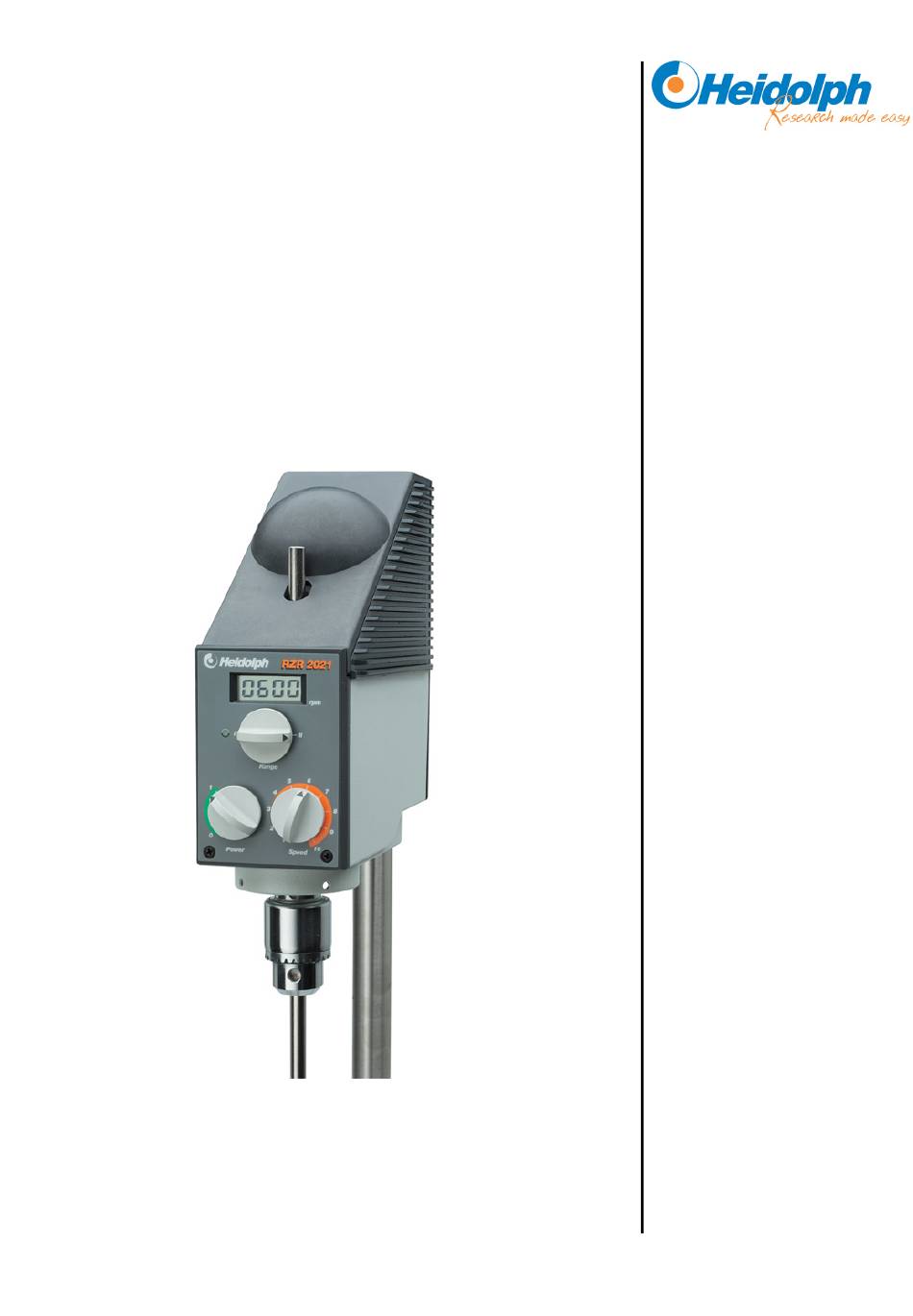

- Page 1 RZR 2020 RZR 2021 RZR 2041 Betriebsanleitung Instruction Manual Mode d’Emploi Instrucciones de Empleo...
- Page 2 DEUTSCH Seite 3 - 13 ENGLISH page 14 - 24 FRANCAISE page 25 - 35 ESPAGNOL página 36 - 46...
-
Page 3: Table Of Contents
Thank you for purchasing a Heidolph Instruments product. This item has been designed, made and inspected in compliance with DIN EN ISO 61010 for long-term and flawless operation. SUMMARY SUMMARY ..........................14 STANDARD HARDWARE & OPTIONS ..................15 GENERAL INFORMATION ....................... 16 SAFETY INFORMATION...................... -
Page 4: Standard Hardware & Options
STANDARD HARDWARE & OPTIONS Standard Hardware product quantity 230 V / 50 Hz 115 V / 60 Hz RZR 2020 or 501-20200-00 501-20200-01 RZR 2021 or 501-20210-00 501-20210-01 RZR 2041 501-20410-00 501-20410-01 support rod 22-02-14-01-08 22-02-14-01-08 2,5 mm Allen key... -
Page 5: General Information
Turn your power switch OFF whenever the item is not used, or before disconnect- ing the plug. Repair work is limited to technicians approved by Heidolph Instruments. Use extra care when working in the vicinity of flammable and explosive sub- stances. -
Page 6: Set-Up
SET-UP 1. Install stand make sure the indent (A) of the rod is in line with threaded pin (B). Install stand in hole (C) in the rear of the item. Secure (pull tight) threaded pin (B) using Allen key (D). 2. -
Page 7: Operation And Controls
The hollow drive shaft provides great flexibility for fast and easy paddle adjustment. Overload protection The RZR 2020, RZR 2021 and RZR 2041 are equipped with a thermal overload protection fea- ture to prevent damage to the stirrer caused by overloading or blocking. In such cases the mo- tor shuts itself off automatically. -
Page 8: Turn Item On
The scales are numbered from 1 to 10 and only serve as a guide. The speeds pertaining to the two ranges are specified separately on the side of the stirrer RZR 2020. When changing over from speed I to speed II, the stirrer speed increases fivefold. -
Page 9: Speed Display
The item is maintenance-free. Repair work is limited to technicians approved or appointed by Heidolph Instruments. Please call your local Heidolph Instruments Dealer or a Heidolph Instru- ments Field Representative (also refer to page 23) DISASSEMBLE & STORAGE Disassamble (refer to page 17, „set-up“) -
Page 10: Disposal
After this, only operate the device if the indicator of the rotary switch is precisely in position l or II (meaning not an intermediate position). (Compare with 3. "Speed setting") In case of a malfunction and you cannot correct with above instructions, contact your authorized Heidolph Instruments Dealer. -
Page 11: Specifications
RZR 2020 / 2021 27 watts power rating, motor, RZR 2041 37 watts dimensions (in mm) RZR 2020 / 2021 82 wide; 206 high; 176 deep dimensions (in mm) RZR 2041 82 wide; 211 high; 176 deep weight RZR 2020 / 2021... -
Page 12: Warranty, Liability & Copyright
If any aspect of installation, operation or maintenance remains unanswered in the present Manual, please contact the following address: For repair services please call Heidolph Instruments (phone: +49 - 9122 - 9920-68) or your lo- cal, authorized Heidolph Instruments Dealer. -
Page 13: Ce-Declaration Of Conformity
01-005-002-94-1 04/2004 Heidolph Instruments GmbH & Co. KG Technische Änderungen sind ohne vorherige Ankündigung vorbehalten. Technical changes reserved. Publication not mandatory. Sous réserve de modifications techniques sans notification préalable. Nos reservamos el derecho de introducir modificaciones técnicas sin previo aviso.
