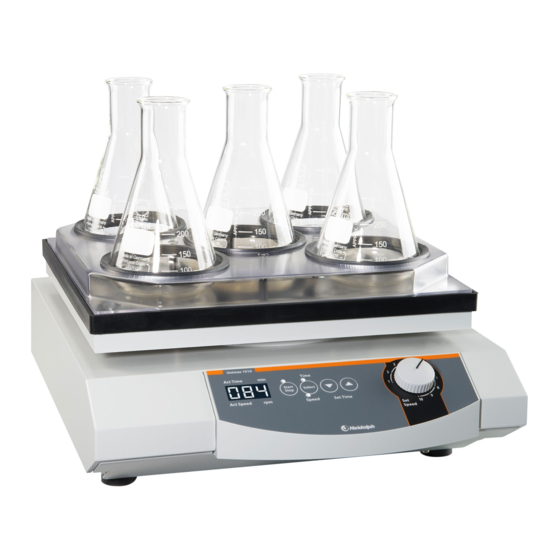

UNIMAX 1010 / PROMAX 1020
DUOMAX 1030 / POLYMAX 1040
Betriebsanleitung
Instruction Manual
Mode d'Emploi
Instrucciones de
Empleo
Istruzioni per l'uso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNIMAX 1010 and is the answer not in the manual?

Questions and answers

HECTOR
July 16, 2025

no deja programar velocidad y tiempo. aparese en el displey 8888 que falla puede ser?

Subscribe to Our Youtube Channel

Summary of Contents for Heidolph UNIMAX 1010

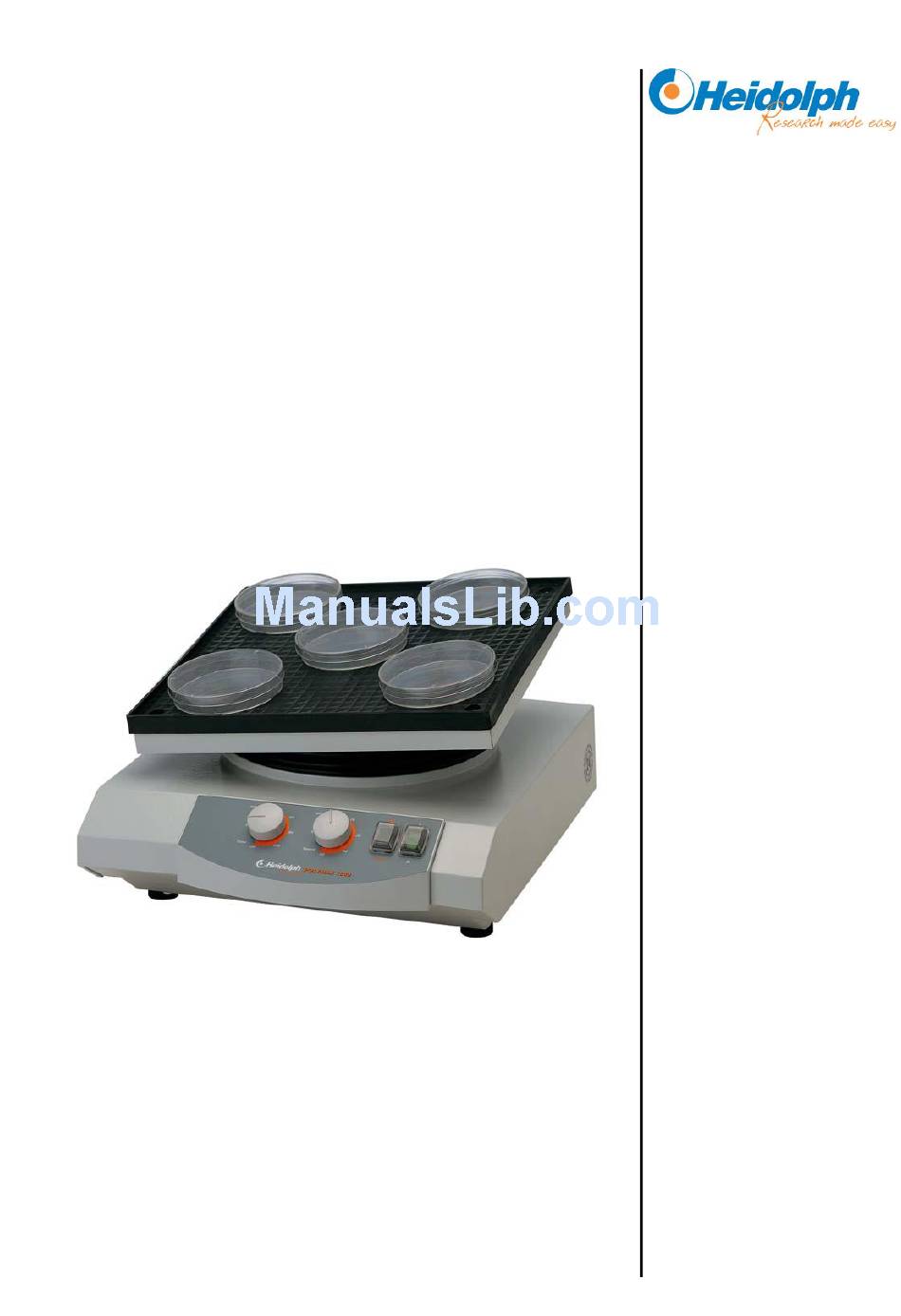

  • Page 1 UNIMAX 1010 / PROMAX 1020 DUOMAX 1030 / POLYMAX 1040 Betriebsanleitung Instruction Manual Mode d’Emploi Instrucciones de Empleo Istruzioni per l‘uso...
  • Page 2: Seite

    DEUTSCH Seite 3 - 15 ENGLISH page 16 - 27 FRANCAISE page 28 - 40 lESI ESPAÑOL página 41 - 53 ITALIANO Pagina 54 - 66...
  • Page 3: Table Of Contents

    Thank you for purchasing a Heidolph Instruments product. This item has been designed, made and inspected in compliance with DIN EN ISO 61010 for long-term and flawless operation. SUMMARY SUMMARY......................16 STANDARD HARDWARE & OPTIONS............. 17 GENERAL......................17 SAFETY INFORMATION................... 18 SET-UP......................
  • Page 4: Standard Hardware & Options

    STANDARD HARDWARE & OPTIONS Product Quantity P/N 230/240V 50/60Hz 115V 50/60Hz UNIMAX 1010 543-12310-00 543-12310-04 PROMAX 1020 543-22332-00 543-22332-04 543-32205-00 543-32205-04 DUOMAX 1030 (5° tilt) DUOMAX 1030 543-32210-00 543-32210-04 (10° tilt) POLYMAX 1040 543-42205-00 543-42205-04 (5° tilt) POLYMAX 1040 543-42210-00 543-42210-04 (10°...
  • Page 5: Safety Information

    Turn your power switch OFF whenever the item is not in use, or before disconnecting the plug. Repair work is limited to technicians approved by Heidolph Instruments. Your item needs a solid stand. Lab bench needs to be of rigid design, and feature an anti-skid surface coat.
  • Page 6: Set-Up

    3.1. Adapters for Erlenmeyer flasks These adapters are used with the UNIMAX 1010, PROMAX 1020; DUOMAX 1030 und POLYMAX 1040 models. Adapters are shipped assembled. Locate adapter on rubber plate. Make sure the crimped edge of the rubber plate is correctly seated over shaker plate.
  • Page 7: Adapter With Clamping Rollers

    PROMAX 1020 (preferred), UNIMAX 1010, DUOMAX 1030 and POLYMAX 1040 models. knurled bolt knurled knobs with pressure pad adapter for 50/100 ml separating funnels (P/N: 549-78000-00) The adapter comes as an assembly. It is put on the shaker plate rubber cushion.
  • Page 8: Operation And Controls

    OPERATION AND CONTROLS Before connecting power cord with mains outlet, make sure that: your item is wired for your local voltage and frequency (data plate on item). master switch is set to "0" and all controls are in "min." position (turn CCW completely);...
  • Page 9: Unimax 1010 / Promax 1020

    2. UNIMAX 1010 / PROMAX 1020 (with digital timer and digital speed display) The control panel features the following controls: A 2-pole master switch (toggle-type, lighted green on the left side of the unit) B setting knob, shaking frequency C Set Time key...
  • Page 10: Cleaning & Servicing

    The item is maintenance-free. Repair work is limited to technicians so approved or appointed by Heidolph Instruments. Please call your local Heidolph Instruments Dealer or a Heidolph Instruments Field Representative (also refer to page 26) DISASSEMBLY & STORAGE Disassembly 1.
  • Page 11: Troubleshooting

    0°C to 50°C at 80% rel. humidity approved for installation in gassing and conditioning cabinets (make reference to temperature limits) power dissipation UNIMAX 1010 / PROMAX 1020 = 30 W DUOMAX 1030 / POLYMAX 1040 = 25 W voltage / frequency 230/240 V, 50/60Hz;...
  • Page 12: Unimax 1010

    UNIMAX 1010 shaking frequency 30 - 500 1/min total stroke / orbit 10 mm motion type rotating load-bearing capacity static: 5 kg; less at high shaking frequencies timer digital 0 – 999 min / continuous digital display shaking frequency / timer...
  • Page 13: Duomax 1030 / Polymax 1040

    C&G offset (mm) WARRANTY, LIABILITY & COPYRIGHT Warranty Heidolph Instruments warrants that the present product shall be free from defects in material (except wear parts) and workmanship for 3 years from the date shipped off the manufacturer’s warehouse. Damage in transit is excluded from this warranty.
  • Page 14: Faq / Repair Work

    FAQ / REPAIR WORK If any aspect of installation, operation or maintenance remains unanswered in this Manual, please contact the following address: For repair services please call Heidolph Instruments (phone: +49 - 9122 - 9920-68) or your local, authorized Heidolph Instruments Dealer. Note...
  • Page 15 01-005-002-45-0 11/01/2006 © HEIDOLPH INSTRUMENTS GMBH & CO KG Technische Änderungen sind ohne vorherige Ankündigung vorbehalten. We reserve the right to make technical changes without prior announcement. Sous réserve de modifications techniques sans avis préalable. Se reserva el derecho de realizar modificaciones téchnicas sin previo aviso.

This manual is also suitable for:

Promax 1020Duomax 1030Polymax 1040
