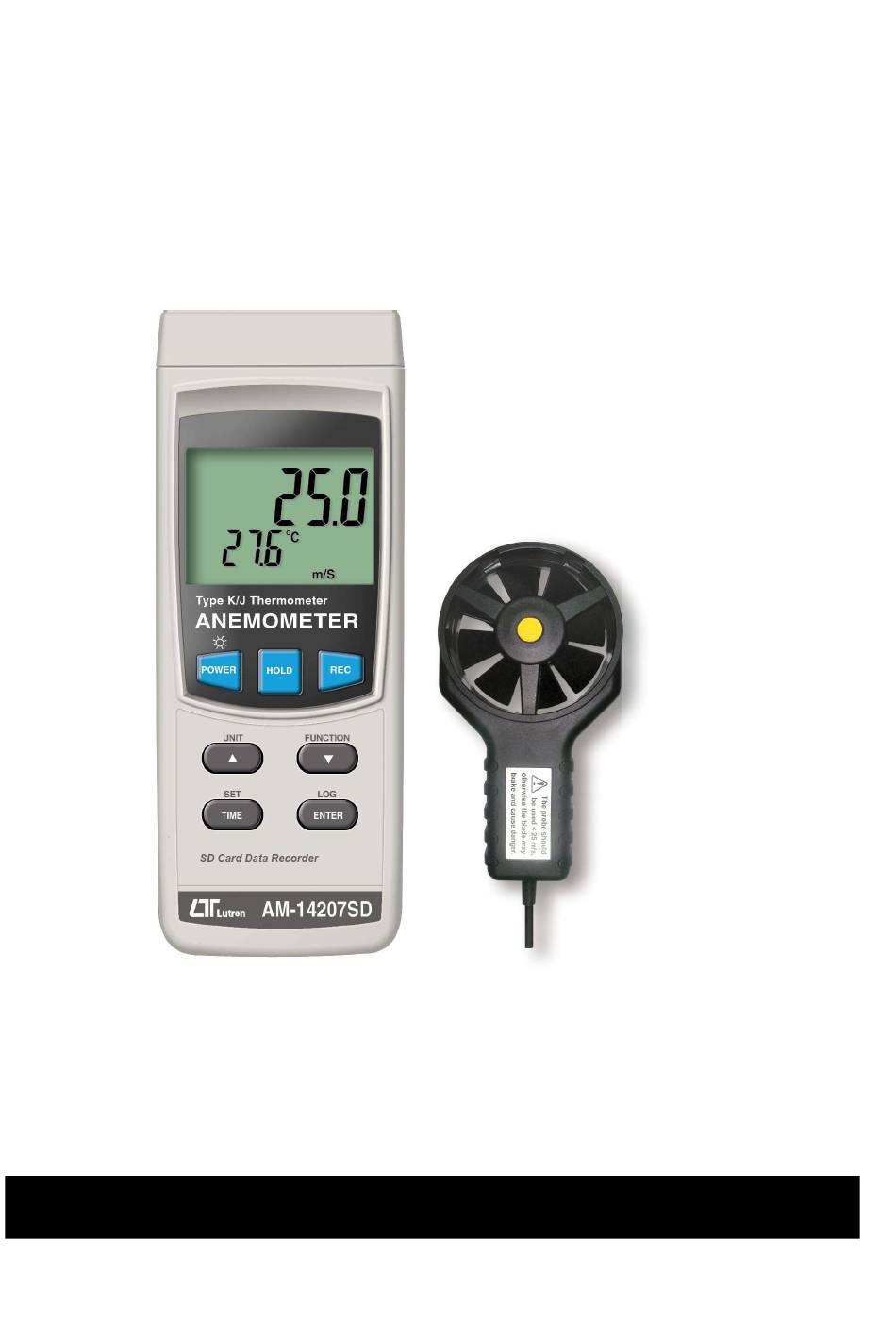

SD card real time Data Recorder
+ Type K/J thermometer
ANEMOMETER
Model : AM-14207SD
Your purchase of this ANEMOMETER marks a step
forward for you into the field of precision measurement.
Although this METER is a complex and delicate instrument , its
durable structure developed. Please read the following instructions
carefully and always keep this manual within easy reach.
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-14207SD and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics AM-14207SD

Summary of Contents for Lutron Electronics AM-14207SD

  • Page 1 SD card real time Data Recorder + Type K/J thermometer ANEMOMETER Model : AM-14207SD Your purchase of this ANEMOMETER marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument , its durable structure developed.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES......................2. SPECIFICATIONS.................... 3. FRONT PANEL DESCRIPTION..............4. MEASURING PROCEDURE................4-1 Function selection ....................4-2 Air velocity/Temp. measurement..............4-3 Air flow measurement.................... 4-4Type K/J thermometer ....................4-5 Data Hold......................4-6 Data Record ( Max., Min. reading ).............. 4-7 LCD Backlight ON/OFF....................

  • Page 3: Features

    1. FEATURES * Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h, * Air temperature ( ℃, ℉ ) * Separate Fan type probe, easy for operation of high. reliability. * Fan probeis built in tripodfix nut, easy installation. * Low-friction ball vane wheels mark sure high accuracy in high &...

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). Measurement Air velocity: Unit m/s (meters per second) Km/h ( kilometers per hour ) Ft/min ( FPM, feet per minute ) Knots ( nautical miles per hour ) Mile/h ( mph, miles per hour )
  • Page 5 Temperature Automatic temp. compensation for the Compensation Anemometer function and the type K/J thermometer. Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
  • Page 6 Optional SD Card ( 4 G ) Accessories Type K thermocouple probes, AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software, SW-U801-WIN. Excel Data Acquisition software, SW-E802 2-2 Electrical Specifications (23±5 ℃ Air velocity Measurement Range Resolution Accuracy 0.4 - 30.0 m/s...

  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-12 RS-232 Output Terminal 3-2 Power Button ( Backlight Button )3-13 Reset Button 3-3 Hold Button 3-14 DC 9V Power Adapter Input Socket 3-4 REC Button 3-15 Battery Compartment/Cover 3-5 UNIT Button ( ▲ Button ) 3-16 Battery Cover Screws 3-6 FUNCTION Button ( ▼...

  • Page 8: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Function selection 1) Power on the meter by pressing the " Power button " ( 3-2, Fig. 1 ) > 1.5 seconds continuously. * After already power on the meter, pressing the " Power button " > 1.5 seconds continuously will turn off the meter.

  • Page 9: Air Velocity/Temp. Measurement

    3) Air velocity/Temp. measurement a. Function select to " Air velocity/Temp. " measurement. b.. Plug the " Probe Plug " ( 3-19, Fig. 1 ) into the " Probe Input Socket " ( 3-9, Fig. 1 ). c. Hold the " Probe Handle " ( 3-20, Fig. 1 ) by hand and let the "...

  • Page 10: Data Hold

    4) Type K/J thermometer a. Function select to " Type K/J thermometer " b. Not install the " Anemometer probe Plug " ( 3-19. Fig 1 ) into the " Probe Input Socket " ( 3-9 Fig. 1 ) b. Plug the Thermocouple Temp. Probe ( Type K Temp. probe pr Type J Temp.

  • Page 11: Lcd Backlight On/Off

    2) With the " REC " symbol on the display : a) Press the " REC Button " ( 3-4, Fig. 1 ) once, the " REC MAX " symbol along with the maximum value will appear on the display. b) Press the "...

  • Page 12: Auto Datalogger ( Set Sampling Time ≧ 1 Second )

    b. SD card Format If SD card just the first time use into the meter, it recommend to make the " SD card Format " at first. , please refer chapter 7-6, ( page 18 ). c. Time setting If the meter is used at first time, it should to adjust the clock time exactly, please refer chapter 7-1 ( page 16 ).

  • Page 13: Manual Datalogger ( Set Sampling Time = 0 Second )

    b. Pause the datalogger During execute the Datalogger function, if press the " LOG Button " ( 3-8, Fig. 1 ) once will pause the Datalogger function ( stop to save the measuring data into the memory circuit temporally ). In the same time the "...

  • Page 14: Check Time Information

    Remark : During execute the Manual Datalogger, it can use the " ▲ Button " ( 3-5, Fig. 1) or " Button " ( 3-7, Fig. 1 ) to ▼ set the measuring position ( 1 to 99, for example room 1 to room 99 ) to identify the measurement location , the lower Display will show P x ( x = 1 to 99 ).
  • Page 15 2) If the first time to execute the Datalogger, under the route AMC01\, will generate a new file name AMC01001.XLS. After exist the Datalogger, then execute again, the data will save to the AMC01001.XLS until Data column reach to 30,000 columns, then will generate a new file, for example AMC01002.XLS 3) Under the folder AHC01\, if the total files more than 99 files, will generate anew route, such as...

  • Page 16: Saving Data From The Sd Card To The Computer

    6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-11, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...

  • Page 17: Advanced Setting

    EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-6, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the "...

  • Page 18: Set Clock Time ( Year/Month/Date, Hour/Minute/Second )

    Remark : During execute the " Advanced Setting " function, if press " SET Button " ( 3-6, Fig. 1 ) > 1.5 seconds will exit the " Advanced Setting " function, the LCD will return to normal screen. 7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ) When the lower display show "...

  • Page 19: Set Sampling Time

    7-2 Set sampling time ( seconds ) When the lower display show " SP-t " 1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button " ( 3-7, Fig. 1 ) to adjust the value ( 0, 1, 2, 5, 10, 30,60, 120, 300, 600, 1800,3600 seconds ).

  • Page 20: Decimal Point Of Sd Card Setting

    yES - Meter's beep sound will be ON with default. no - Meter's beep sound will be OFF with default. 2) After select the upper text to " yES " or " no ", press the " ENTER Button " ( 3-8, Fig. 1 ) will save the setting function with default.
  • Page 21 yES - Intend to format the SD memory card no - Not execute the SD memory card format 2) If select the upper to " yES ", press the " Enter Button " ( 3-8, Fig. 1 ) once again, the Display will show text "...

  • Page 22: Power Supply From Dc Adapter

    2) After Display unit is selected to " K " or " J ", press the " Enter Button " ( 3-8, Fig. 1 ) will save the setting function with default. 8. POWER SUPPLY from DC ADAPTER The meter also can supply the power supply from the DC 9V Power Adapter ( optional ).

  • Page 23: System Reset

    10. SYSTEM RESET If the meter happen the troubles such as : CPU system is hold ( for example, the key button can not be operated... ). Then make the system RESET will fix the problem. The system RESET procedures will be either following method : During the power on, use a pin to press the "...
  • Page 24 Meter (9W 'D" Connector) Center Pin......Pin 4 (3.5 mm jack plug) Ground/shield....... Pin 2 2.2 K resistor Pin 5 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word D1 &...

  • Page 25: Optional Type K Temp. Probe

    RS232 FORMAT : 9600, N, 8, 1 Baud rate 9600 Parity No parity Data bit no. 8 Data bits Stop bit 1 Stop bit 12. Optional Type K Temp. probe (Type K) TP-01 * Max. short-tern operating Temperature: 300 ℃ (572 ℉). * It is an ultra fast response naked-bead thermocouple suitable for many general purpose...

  • Page 26: Patent

    13. PATENT The meter ( SD card structure ) already get patent or patent pending in following countries : Germany Nr. 20 2008 016 337.4 JAPAN 3151214 TAIWAN M 358970 M 359043 CHINA ZL 2008 2 0189918.5 ZL 2008 2 0189917.0 Patent pending 240424-AM14207SD...
