Altronix TROVE T1RHW3F4 Installation Manual page 5

1. Fasten spacers onto metal pems configuration (A) of backplane depending on the access controller
(Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Fasten THW1R backplane to Trove1R rack enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Honeywell Board
PRO32E1PS, PRO32IC, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC,
PW6K1IN, PW6K1OUT, PW6K1R2.

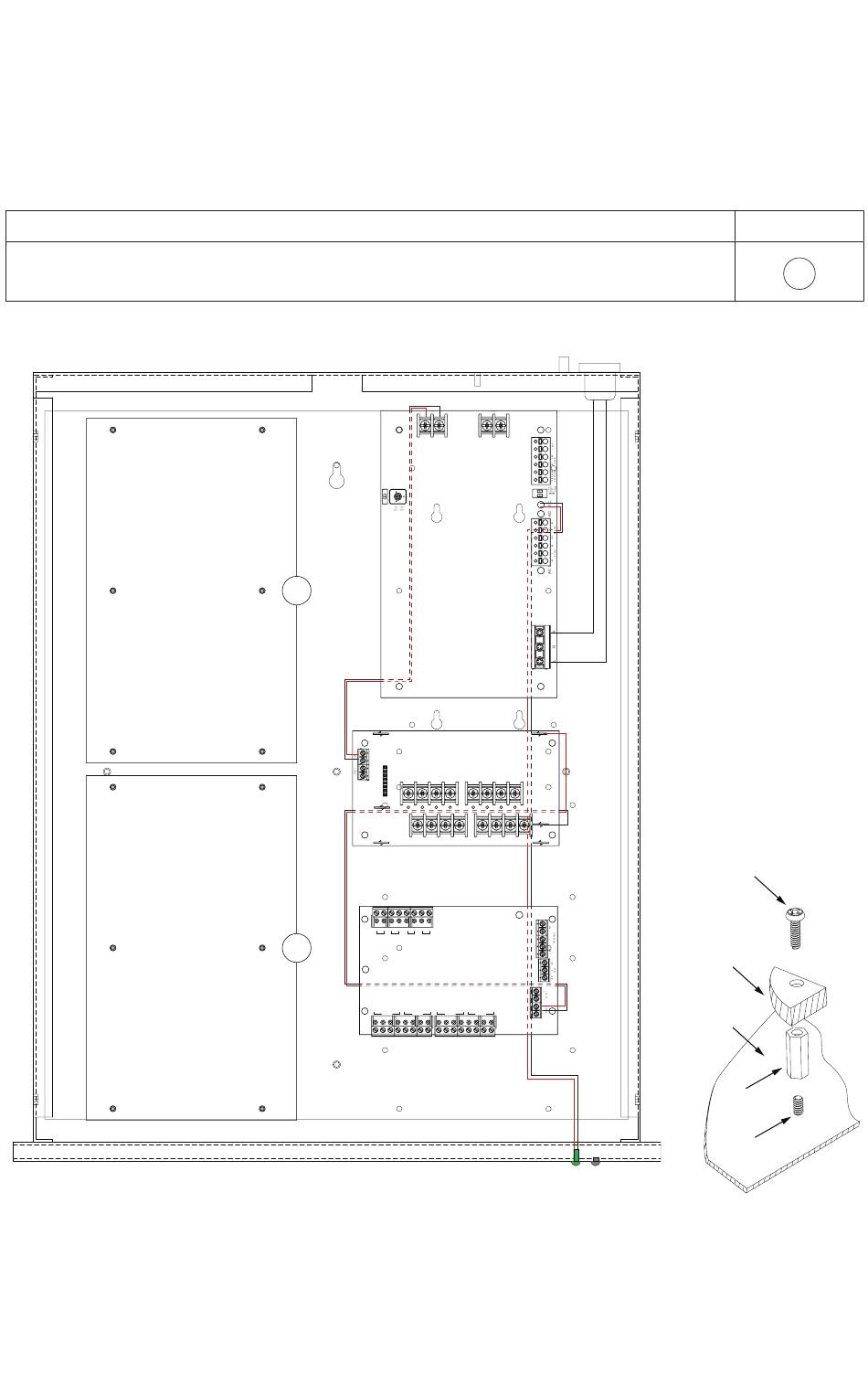

Fig. 5
T1RHW3F4(D) Installation Guide
T1RHW3F4(D):
Configuration of Honeywell Boards
ON
A
PWR1+
Altronix PDS8(CB)
P
OUT1 OUT2
COM(-)
N
PWR1+ 1 2
VR6 is mounted
under PDS8(CB)
IN GND IN GND IN GND IN GND
1 2 3 4
A
Altronix ACM4(CB)
NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2
To IEC connector
Altronix
eFlow6NB
PWR1+
P
OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
N
COM(-)
3 4 5 6 7 8 PWR2+
Common Power Outputs (NEG)
RoHS
TRIGGER
INPUT TRG
NC C NO COM NC C NO COM
OUTPUT 3 OUTPUT 4
To LED
lense
Pem Mounting
A
Fig. 5a
Pan Head Screw
Honeywell
Board
Backplane
Spacer
Pem
- 5 -
