Hardware components

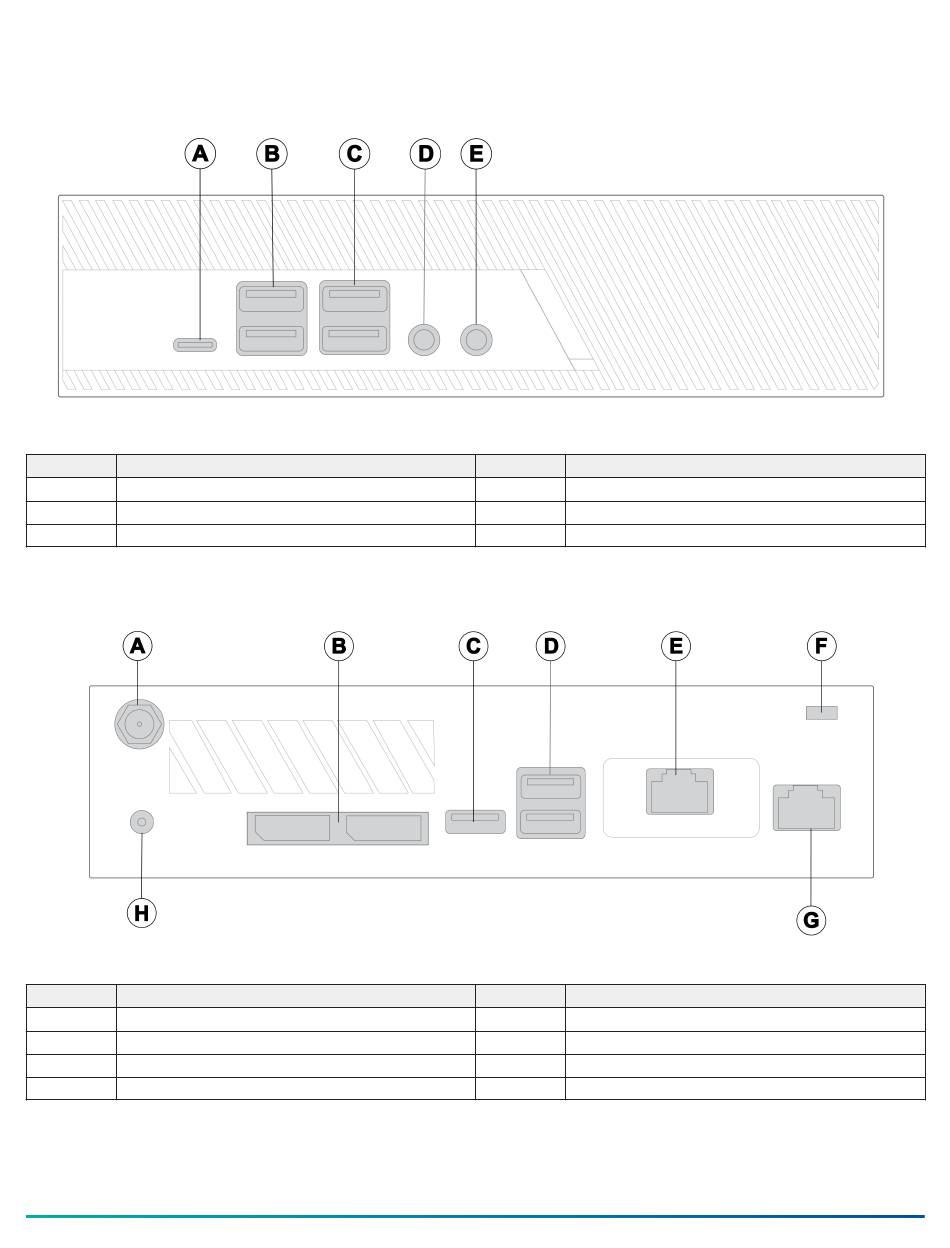

Figure 2: C-Series front panel
Callout Description
A USB 3.2 Gen 2x2 port
B 2 x USB 3.0 ports
C 2 x USB 2.0 ports
Figure 3: C-Series back panel
Callout Description
A Antenna connection
B 2 x DisplayPorts
C USB 2.0 port
D 2 x USB 3.1 ports
C-Series Monitoring Station Quick Start Guide
Callout Description
D Headphone jack
E Microphone jack
Callout Description
E 2.5 Gbps Ethernet port
F Lock point
G Ethernet port
H DC in
