Summary of Contents for SOMFY SDN Data Hub V2

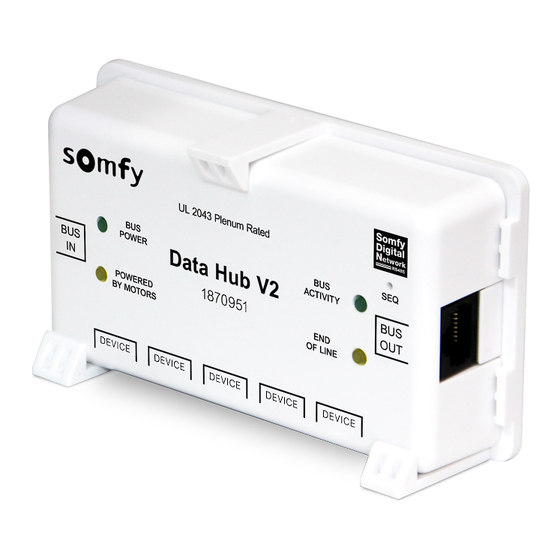

- Page 1 SDN Data Hub V2 Instructions Item #: 1870951...
- Page 2 Note: Example showing the data hub and connected devices powered by bus line for SDN V2 SDN Bus Booster 120V AC SDN Data Hub V2 60Hz 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 2.5 ft. (Power & Data, Grey) #9018545 Sonesse®...
- Page 3 III. Motor and Device Compatibility • Sonesse® 40 RS485 AC motors • Backwards compatible with all RS485 AC motors • Note: Use 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 2.5 ft. (Power & Data, Grey) #9018545 for connection to any data hub •...
- Page 4 Motor does not jog when plugged into the Data Hub V2: Ensure power and data cables have been used and check for mis-wiring using the Sequence button © Somfy Systems, Inc. • JANUARY 2024 All brands, products, and trademarks are the property of their respective owners.
