FUNCTIONS

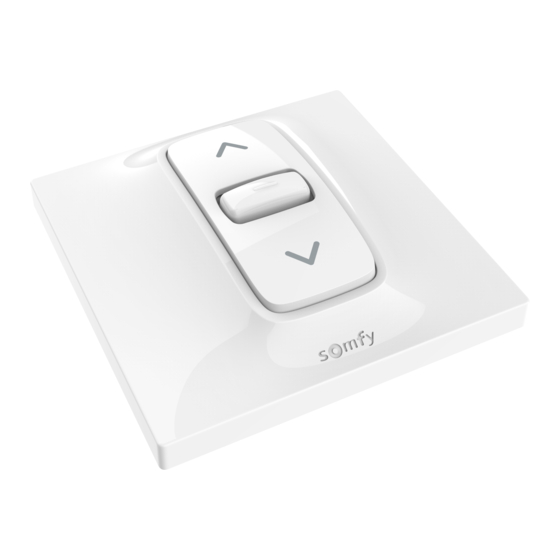

Single control switch for fixed electrical installations
(wall mounted and directly to the mains) intended
for worldwide except Asian market.
Inis 80 mounted on recessed box.
Inis Mounted Box mounted directly on the wall.
Fixed position
Type of switch: mechanical
TECHNICAL SPECIFICATIONS
Box
Protection factor against solid & splashproof
Weight
Output contacts
Temperature range
Standards
TECHNICAL DATA SHEET
Inis 80 & Inis Mounted Box
Inis 80x80: 1800513 ; 1800514
Inis mounted box: 1800511 ; 1800512
Mechanical Switch Range
Material
Colors
Size
Voltage
Ampere
Storing
Working
Electrical safety
21 - 12 - 2018
Inis 80x80
ABS Novodur H950
White
Inis80x80 :
Inis mounted box: 82x44x56mm
IP 20
50g
250V
6A
-20°C / +60°C
-5°C / +45°C
IEC 60699-1
TDST DOC152630
Inis Mounted Box
80x80x49mm
