SOMFY INSTRUCTIONS

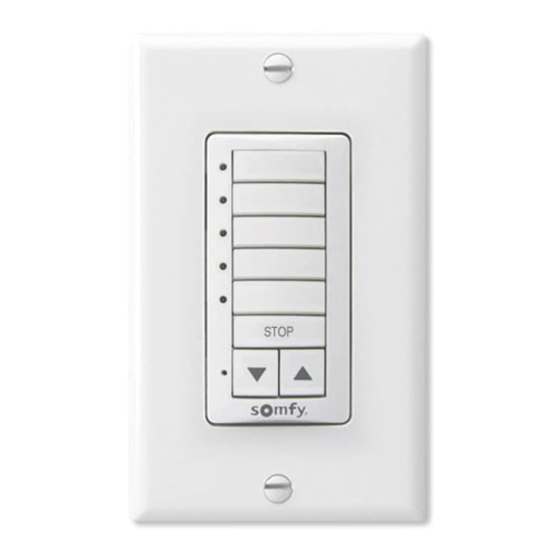

DECOFLEX WIREFREE RTS SWITCH
Part #'S
1810897 DecoFlex 1 Channel (white)
1810898 DecoFlex 1 Channel (ivory)
1810899 DecoFlex 1 Channel (black)
1810813 DecoFlex 5 Channel (white)
1810814 DecoFlex 5 Channel (ivory)
1810830 DecoFlex 5 Channel (black)
The DecoFlex RTS Switch is a wireless radio transmitter compatible with all Somfy RTS Motors and externally mounted RTS receivers.
- Commands are transmitted by radio waves at 433.42 MHz.
- Power: 3V lithium battery, CR 2450 type
The Somfy DecoFlex RTS switch is a low voltage device which does not require an electrical box. It can be mounted adjacent to an existing
Decora style light switch or as a stand-alone device using the (included) SOMFY low voltage mounting bracket (See installation section for details).

PROGRAMMING - ADDING A DECOFLEX RTS WALL SWITCH - INITIAL INSTALLATION

Note: During initial programming it is recommended to provide power only to the motor or RTS receiver being programmed.
A previously programmed Telis transmitter can be used to add a new DecoFlex RTS Wall Switch to the Motorized Window Covering. If a Telis transmitter
has not been previously programmed, please refer to the installation/programming instructions of the relevant RTS motorized window covering.
1. Using the previously programmed Telis
remote, press and hold the programming
button on back of remote until window
covering "jogs." ("jog" is a brief back and
forth movement of the window covering)
2. Select a channel to be memorized by
pressing the appropriate Channel Button.
The adjacent LED indicator will illuminate
when the channel has been selected.

PROGRAMMING - ADDING ADDITIONAL CHANNELS OR DECOFLEX WALL SWITCHES

1. Using a paper clip, or similar device,
press and hold the Programming Button
on the previously addressed DecoFlex
switch until window covering "jogs "
3. Using a paper clip, or similar device,
briefly press the Programming Button
(for 1 second) located on the DecoFlex
switch until window covering "jogs "
Window covering has now learned
the commands of the new DecoFlex
switch or channel.
© Copyright Somfy Systems, Inc. 1/2010
LED
Indicator
Programming
Button
- Operating temperature: +5 C/41 F to +40 C/104 F
- Range: Up to 65 Ft.
- Fits into standard Decora Wall Plates
Previously
Programmed Remote
Pen
Programming
Button
BACK VIEW
Channel
Button
.
.
Programming
Button
C-0006
Channel
Button
LED
Indicator
Programming
Button
o o o
3. Using a paper clip, or similar device,
briefly press the Programming Button
(for 1 second) located on the DecoFlex
switch until window covering "jogs "
Window covering has now learned
the commands of the DecoFlex switch
or channel.
2. Select a NEW channel or DecoFlex
switch to be memorized by pressing
the appropriate Channel Button.
The adjacent LED indicator will illuminate
when the channel has been selected.
Channel
Button
o
.
Programming
Button
Select the
LED
Channel
Indicator
Button
PAGE 1 REV 4
