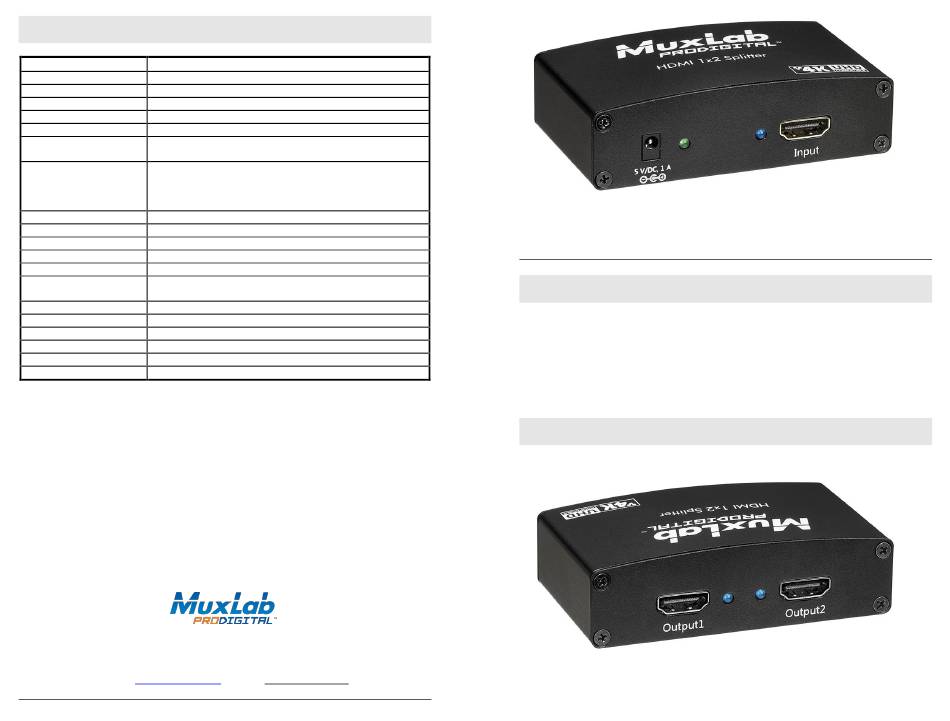

MuxLab 500423 Quick Installation Manual

Specifications
Environment HDMI 1.4 (3D)
Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission Transparent to the user
Frequency 25 to 340 MHz
Signals HDMI 1.4 protocol
Connectors HDMI receptacle.
LEDs Power: Green
Input & Output Link: Blue
Resolution 480i to 1080p @ 50/60 FPS
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30 FPS
VGA to UXGA
8, 10 & 12 bit
Color
Audio LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
HDCP Revision 1.3
Cable HDMI Cable
Power Supply 5VDC, 1A, P/N: BI12T-050100I
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
3.50" x 2.00" x 1.00" 89 mm x 51 mm x 25 mm)
Dimensions
Weight 0.8 lbs (0.36 Kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500423
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc. 2014
Storage: -20° to 60°C
HDMI 1X2 Splitter, UHD-4K (UPC: 627699004234)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000763-A SE-000763-A
HDMI 1X2 Splitter, UHD-4K (500423)
Quick Installation Guide
Overview
The HDMI 1x2 Splitter (500423) allows one (1) HDMI source to be distributed to
up to two (2) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit
color and HD audio. The splitter is HDCP 1.3 compliant and features LED
diagnostics. Additionally, all HDMI connectors are on the rear panel for neater
cabling. Applications include; commercial and residential AV systems, classroom
projector systems, digital signage, boardroom systems, collaborative PC systems,
medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product
