Summary of Contents for Vacmaster VQ607SFD
-

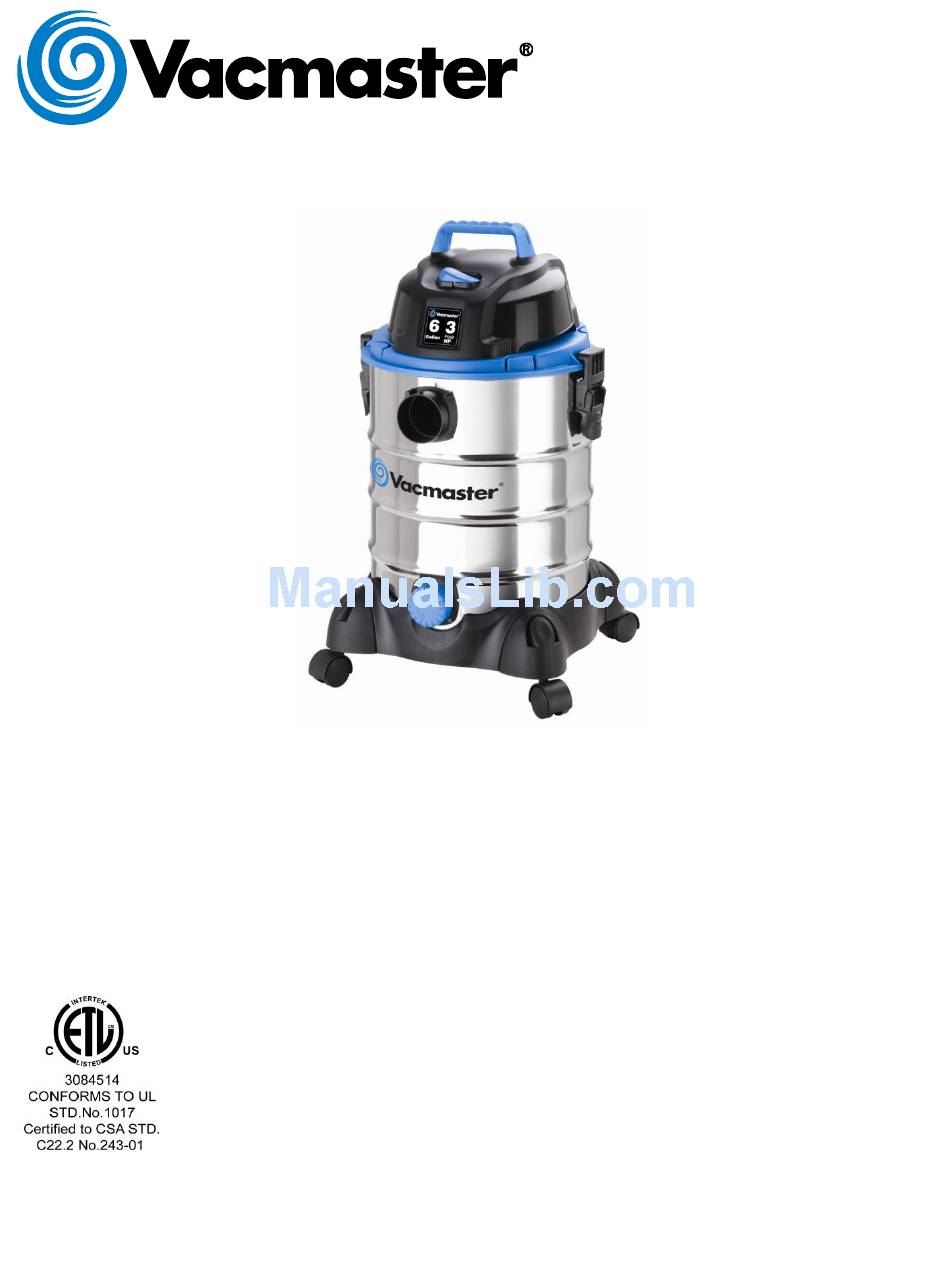

Page 1: For Your Safety

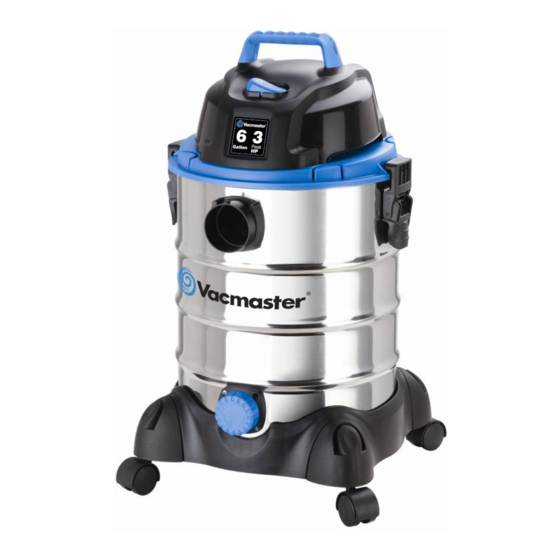

Wet/Dry Vacuums Operator’s Manual 6 Gallon Model No. VQ607SFD FOR YOUR SAFETY Read and understand this manual before use Keep this manual for future reference www.vacmaster.com Cleva North America Part No. VQA1BZ.20.60.02 44 Parkway Commons, Greer, SC 29650... -
Page 2: Table Of Contents
CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. -
Page 3: Safety Instructions And Warnings
Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster® recommended accessories. Household Type SAVE THIS MANUAL FOR FUTURE REFERENCE. -
Page 4: Double Insulation Instructions
DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac. -
Page 5: Unpacking And Checking Carton Contents
UNPACKING AND CHECKING CARTON CONTENTS Remove entire contents from carton. Check each item against the contents list. Contents List Description……………………..…….…QTY Vac Assembly…………………………….. Hose With Air Control Nozzle…....Extension Wands..……………………..2-in-1 Utility Nozzle……………………..Crevice Tool……………………………… Multi-Surface Floor Nozzle..….……….. Round Dust Brush........Cartridge Filter…………………….……... -
Page 6: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required for assembly. WARNING : DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. -
Page 7: Dry Vacuum Operation
POLARIZED PLUG To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. -
Page 8: Wet Vacuum Operation
5. Insert the locking end of the hose into the vacuum port and screw in place. Push the required attachment onto the free end of the hose or extension. (fig.6) 6. Plug in the power cord into the outlet. (fig.7) 7. -
Page 9: Blowing Operation
in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the inside and outside before storage. -
Page 10: Maintenance
MAINTENANCE WARNING : DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS. 1. Verify that the power cord is disconnected from the outlet. (fig.1) 2. Disconnect the hose from the vacuum, turning large end in counter clockwise direction. (fig.2) 3. -
Page 11: Installing & Cleaning Foam Sleeve Filter
3. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance a new filter is recommended. 4. Install cleaned or new filter into place as instructed above in steps 2 and 3 of Installing Cartridge Filter. 5. -
Page 12: Exploded View And Parts List
PARTS LIST - EXPLODED VIEW...
