PCE Instruments PCE-CHT 10 Operation Manual

Operation
Free Chlorine tester
Manual
PCE-CHT 10
TABLE OF CONTENTS
1. Product Overview ····························································
2. Precautions
····································································
3 CONFIGURATION and LCD INTRODUCTION
4. Key Panel
········································································
5. Battery and electrode installation
6. Measurement Mode
·······················································
7. Calibration Mode
····························································
8. Set up ··············································································
9. Parameters
····································································
10. Package ··········································································
11. GENERAL INFORMATION
3. CONFIGURATION and LCD INTRODUCTION
Set up
Data stabilized
Calibration Mode
Low battery indicator
Measurement mode
Auto Lock function
Auto Lock after data stabilized
In calibration
Sensor slope is between 50%-200%
Sensor slope is between 33.3%-50% or 200%-300%
4. Key panel
Key instruction
Short press: Short press means release the key once after pressing.
(If there is no mark out below, default it as Short press)
Long press: Long press means press the key for 3 seconds and then release it
Hold: Hold means not release the key and accelerate after a certain time. Not release the key
until the value is set as needed.
Long press to Power ON/OFF
Short press to ON/OFF backlight
Escape key when in calibration mode and setting up
Calibration key when in measurement mode
Long press to enter into parameter browsing
Increment values or scroll through the next options available
Data setting
Decrement values or scroll through the next options available
Confirm key
Press to unlock in Auto lock mode
······················
ENT
CAL SET
··································
FCL30
···················································
-3-
Precise and easy operation, Comfortable holding, all functions operated in one hand.
●
Large LCD with backlight, Multi-line display for easy reading, Auto-Power Off saves battery after
●
5 mins non-use
1*1.5V AAA long battery life, User replaceable battery and high-impedance plane electrode.
●
Floats on water, IP67 rated
●
Field throw measurement( Auto Lock Function)
●
Use tri-electroded method measuring: faster and accurate, matching up to DPD results.
●
2 points calibrate
●
2
Floats on water
2 IP67 rated
3
3
4
5
5
6
7
7
8
Please wipe up the electorde with clean tissue or cloth before using.
Do not throw or beat ,squash or twist the tester deliberately.
Do not expose to the direct sunlight or put in high humidity or high
temperature environment .
Do not use for long time under water.
5. Battery and Electrode installation
Unscrew the screw cap by following the
arrow direction, slightly unplug the
electrode, install the battery(pay attention
to the anode and cathode of the
electrode).
Then install back the electrode and the
screw cap.
Low battery prompt is at the top of the
screen when battery power is low.( You can
refer to the LCD INTRODUCTION). Please
change the same model battery.
Pay attention to the corresponding
bayonet position

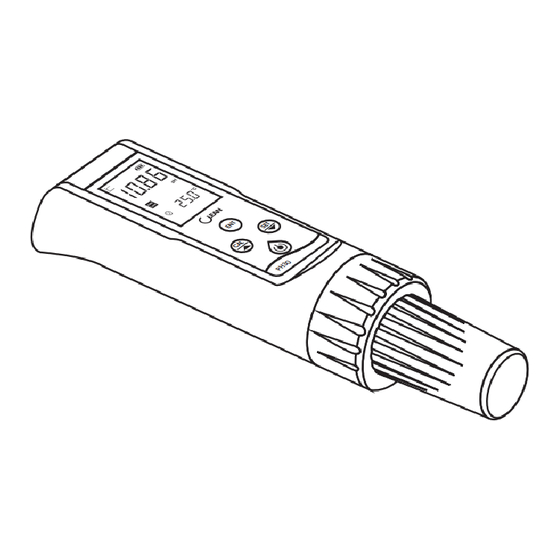

1. Product Overview
Large LCD with Field throw
backlight measurement
Multi-line display ( Auto Lock Function)
for easy reading
2. Precautions
-2-
1.Align the bayonet according
to the corresponding position
2
1
2.After aligning the bayonet,
gently push it along the axis
1
2
3. Screw the fixing cap tightly
-4-
+
AAA
-
1*1.5V AAA
long battery life
