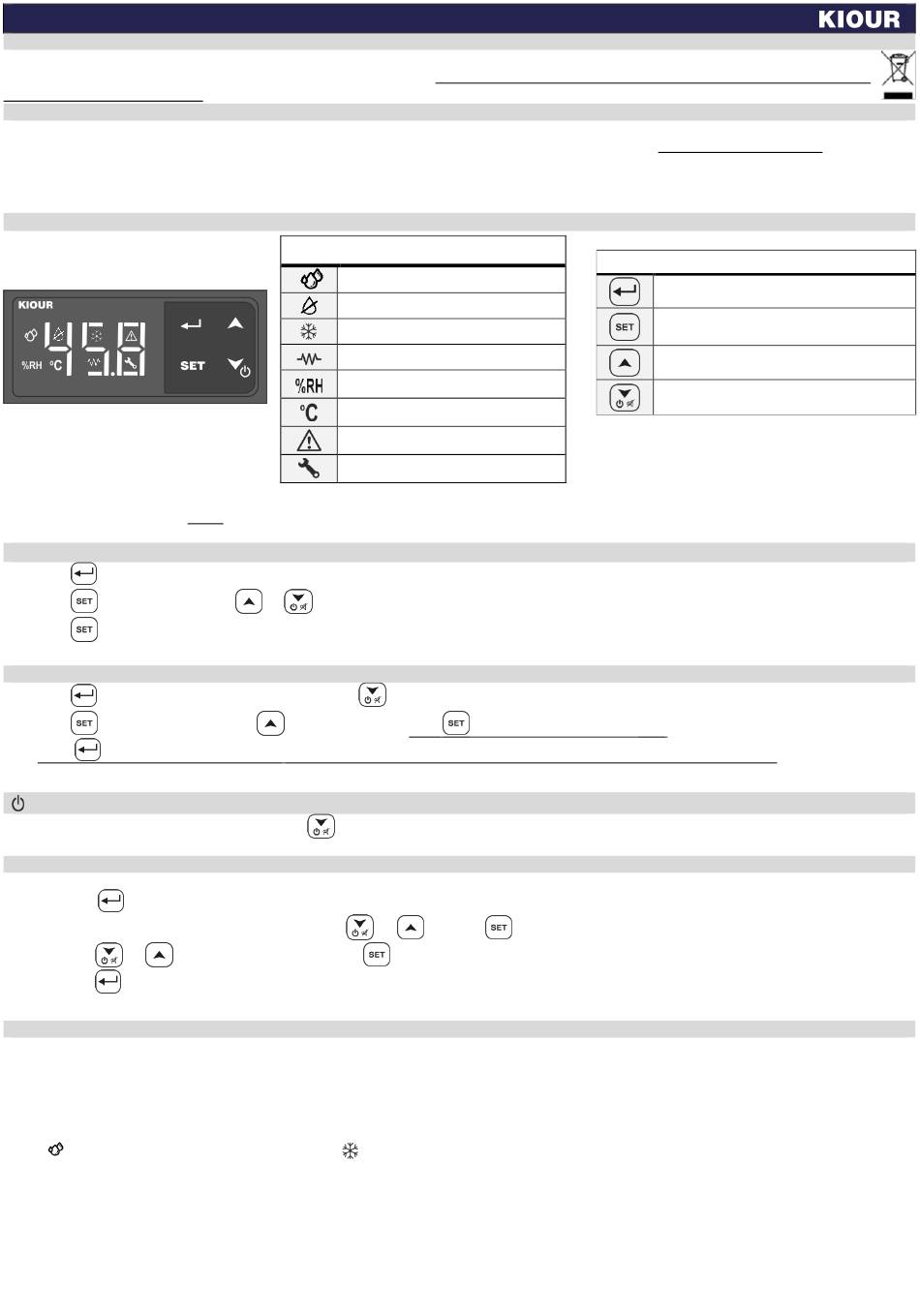

KIOUR RH2 Manual

HUMIDITY – TEMPERATURE
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this
device only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection
of electrical and electronic equipment.
DESCRIPTION
RH2 has a sensor which reads the humidity (0-100% RH) and the temperature (-40-125°C) of a room. It has 3 indication digits of temperature display with an accuracy of
0.5 °C and 4 buttons. It has two relays: one relay 16A controls the humidity of the room and the other one 10A controls either the humidity or the temperature of the room. Both
relays can operate to cooling (dehumidification) or heating (humidity) mode via a parameter adjustment. The device is mounted on a panel hole 29x71mm
with plastic side brackets. Through the serial input it can be connected to a network either through Cloud IoT on the CORTEX platform, or through a local computer in the
CAMIN program for complete local recording and monitoring of the device.
KEYBOARD INDICATIONS AND FUNCTIONS
For more indications regarding the alarms please see the alarm's table at page 3.
ADJUSTING HUMIDITY – SET POINT 1
1. Press to display the first parameter SP1.
2. Press to display its value. With
3. Press to save the new value. The device is working with the new adjustment.
INDUSTRIAL FACTORY SETTINGS
1. Press to display the first parameter SP1. Press 2 times
1. Press to display its value and press
2. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.
ON/OFF DEVICE
To activate or deactivate the device, press for 3 seconds
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 3
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or
4. Press to exit the parameter menu.
TECHNICAL SPECIFICATIONS
Model RH2 power supply: 230VAC 50/60Hz / Maximum power consumption: 3W. Model RH2W switching power supply 100-264VAC 50/60Hz 5W
It is recommended using a power supply safety fuse: 0.5Α (not included)
Humidity and temperature sensor from 0-100%RH and from -40-125°C with metal tube Φ8mm and length 14cm
Humidity accuracy from 0-90%RH ±2%RH, from 90-95%RH ±2%RH and from 95-100%RH ±3.5%RH
Temperature accuracy from -40-90°C ±0.3°C and from 90°C-125°C can reach till ±0.5°C
Serial input 5 pins connector
Relay 1 humidity 16A res. 250VAC normally open / Relay 2
Connections: cable cross section
Connections with terminal blocks 18A using cable with
Operating temperature: -15÷+55°C / Storage temperature: -20÷+80°C
Dimensions 37x79x81mm / The device is mounted on panel hole 29x71mm and restrained with plastic side brackets / Protection IP65 front
Firmware: V3.0.1

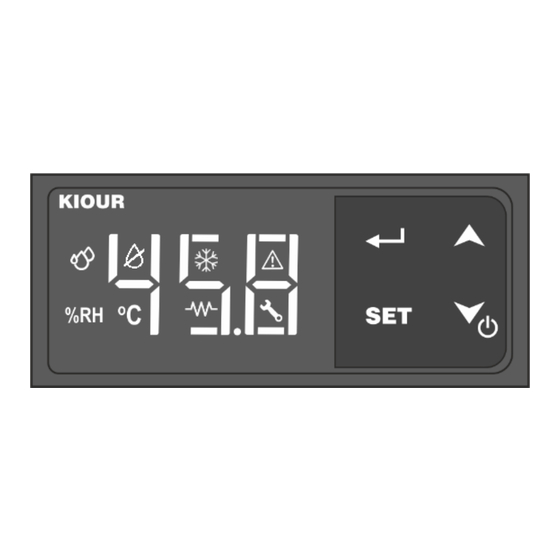

CONTROLLER Model RΗ2
Indications
relay 1 ON in humidity mode
relay 1 ON in dehumidification mode
relay 2 ON in cooling mode
relay 2 ON in heating mode
humidity indication
temperature indication
alarm ΟΝ
malfunction ON
or change SP1 value.
to enter the value 31. . Press
.
nd parameter Cod must be adjusted to 22 (see parameter table at next page).
to change its value and then press
2.5 mm² for all relays / cable cross section
cable cross section
and the parameter Cod is displayed.
to store the value to parameter Cod.
or and press to display its value.
to store the new value.
temperature 250VAC 10A / Max current load 16Α
from 0.25 to 1.0 mm² for the sensors
up to 2.5 mm² / It is recommended using a torque wrench with maximum torque 0.4Nm
Keyboard
enter/exit the parameter's menu
display the parameter's value
enter parameter's value
up arrow
display second indication
down arrow
ON/OFF device (check below)
Firmware V3.0.1
and it is restrained
1
