KIOUR REF-DF-SM Quick Start Manual

REFRIGERATOR CONTROLLER Model REF-DF-SM Version 4.2

DESCRIPTION

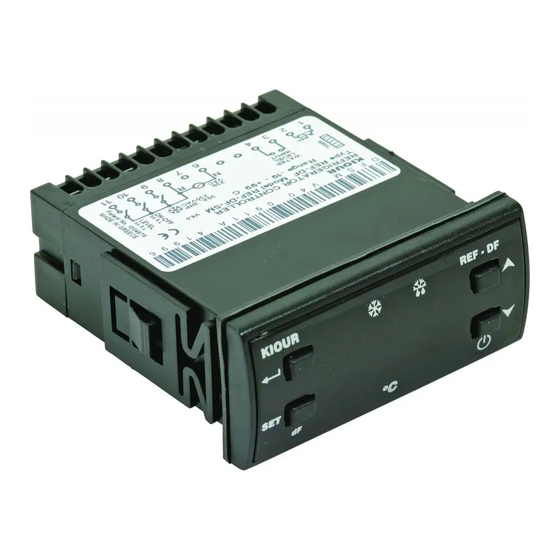

REF-DF-SM Version 4.2 is a compact controller for refrigerator's control with defrost. Via one PTC sensor, it controls room's temperatures with temperature range -19÷+99°C
(-2÷+210°F). It has defrost control and three relays (compressor, water level, ON-OFF). Also it has an OFF state, in which all relays are OFF and it has one input for level
control and one input for open door. The controller has a serial input and can connect to the KIOUR CAMIN modbus network for full monitoring and data logging of the device.

INDICATIONS AND BUTTON OPERATIONS

Indications
relay ON
deFrost ON

PROGRAMMING THE PARAMETERS

By pressing at the same time [ SET ] and [
The first parameter "SP" is displayed and with [
By pressing [SET] the value of the parameter is displayed and with the [
By pressing [ ] we confirm the new value and the name of the parameter is displayed.
By pressing [SET] we cancel the new value and the name of the parameter is displayed.
By pressing [ ] we exit the parameters menu.

SWITCHING ON/OFF THE DEVICE

By pressing [ ] more than 3 sec. we switch ON or OFF the device.

TECHNICAL SPECIFICATIONS

Power supply: 230VAC 50/60Hz / Maximum power consumption: 3W
It is recommended to use a power supply safety switch: fuse 0,5A (not included)
Cabinet's temperature sensor PTC 1Κ 25°C / Ακρίβεια: 0.5°C

Serial Input

Relay compressor 250VAC 30A resistive load 2HP
Relay water level and relay ON/OFF 250VAC 10A
Operating temperature: -15÷+55°C / Storage temperature: -20÷+80°C
The device is mounted through panel hole 29x71mm and is restrained with two plastic side brackets / Connection with terminal blocks 18A
SERIAL INPUT
REF-DF-SM can connect to the key programmer or to the data logger Mini Logger or to the KIOUR CAMIN network or to any modbus network.
 Key programmer: controller's parameter values can be saved or retrieved from the programming key. Plug in the programming key to the controller and press at the same
time [SET]+[ ]. The device connects to the key and the message "Eo" is displayed. By pressing [
"ro" = read O.K. or "rF" = read Fail is displayed. By pressing [
displayed. In case of failure (rF or YF) reenter the key to the serial input and repeat the procedure from the beginning. The key can connect to all KIOUR devices. If you try
to read the parameters of a different device, message "rF" is displayed. At any time, we can perform the aforesaid operation. After 10sec the key is disconnected.
 Data logger Mini Logger: the controller is connected to the data logger via cable and by programming the parameter Add = 1. Automatically, based on selected minutes,
the data logger writes to a microSD memory card the controller's temperatures, status and alarms.
 CAMIN network: the controller can connect to the CAMIN network via an interface NET-INS-485. CAMIN is an PC software application designed to collect information,
watch and fully control a net of KIOUR devices while sending SMS and email in case of an alarm. The maximum length of the net can be 1000 meters.

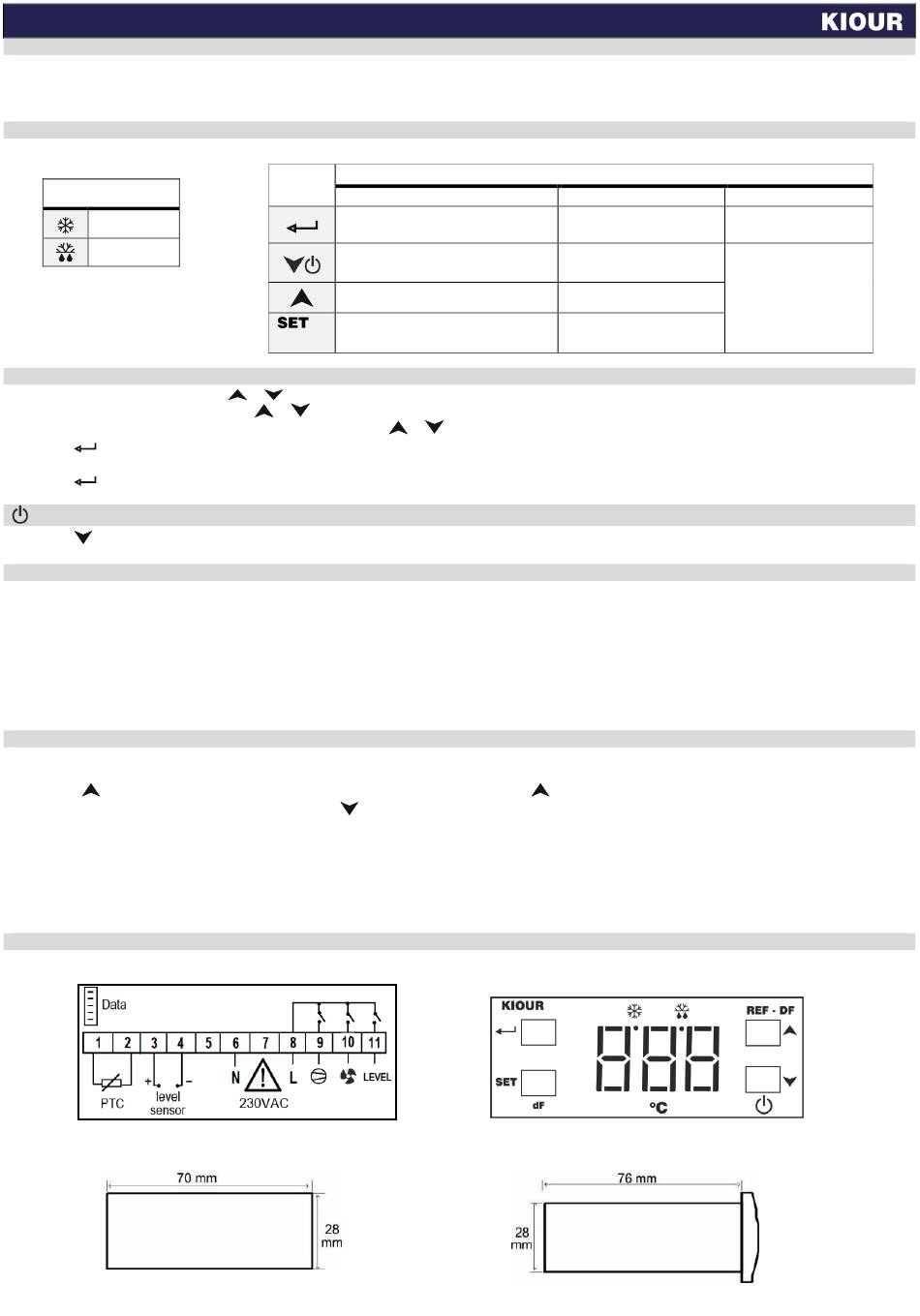

CONNECTIONS - DIMENSIONS

button
pressed once
SET POINT indication
confirm new value
indicates temperature sensors °C/°F
cancel new value
df
], [ ] we access the parameters menu.
], [ ] we scroll into the parameters with the order they appear to parameters table below .
], [
] the device uploads the parameters to the key and the message "Yo" = Write O.K. or "YF" = Write Fail is
Operations
pressed more than 3 sec
ON/OFF controller
-
start manual deFrost
] we change the value.
] the device downloads the parameters from the key and the message
pressed together
-
-
enter parameter's menu
-
