KIOUR VD1F Quick Start Manual

COOLING – HEATING CONTROLLER Model VD1F
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this device
only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection of
electrical and electronic equipment.

DESCRIPTION

VD1F is a temperature controller for cooling – heating applications as well as food drying applications (eg sausages). The room temperature is controlled with an NTC / PTC
sensor. It has 3 indication digits of temperature display with an accuracy of 0.5 ° C and 4 buttons. It has a digital input for controlling the cabinet's door and automatic defrost
function. It has a relay 30A 250VAC that through parameters adjusted in operation: cooling or heating or heating with countdown. It has a buzzer that activates in case of alarm.
The device is mounted on a panel hole 29x71mm
IoT on the CORTEX platform, or through a local computer in the CAMIN program for complete local recording and monitoring of the device.

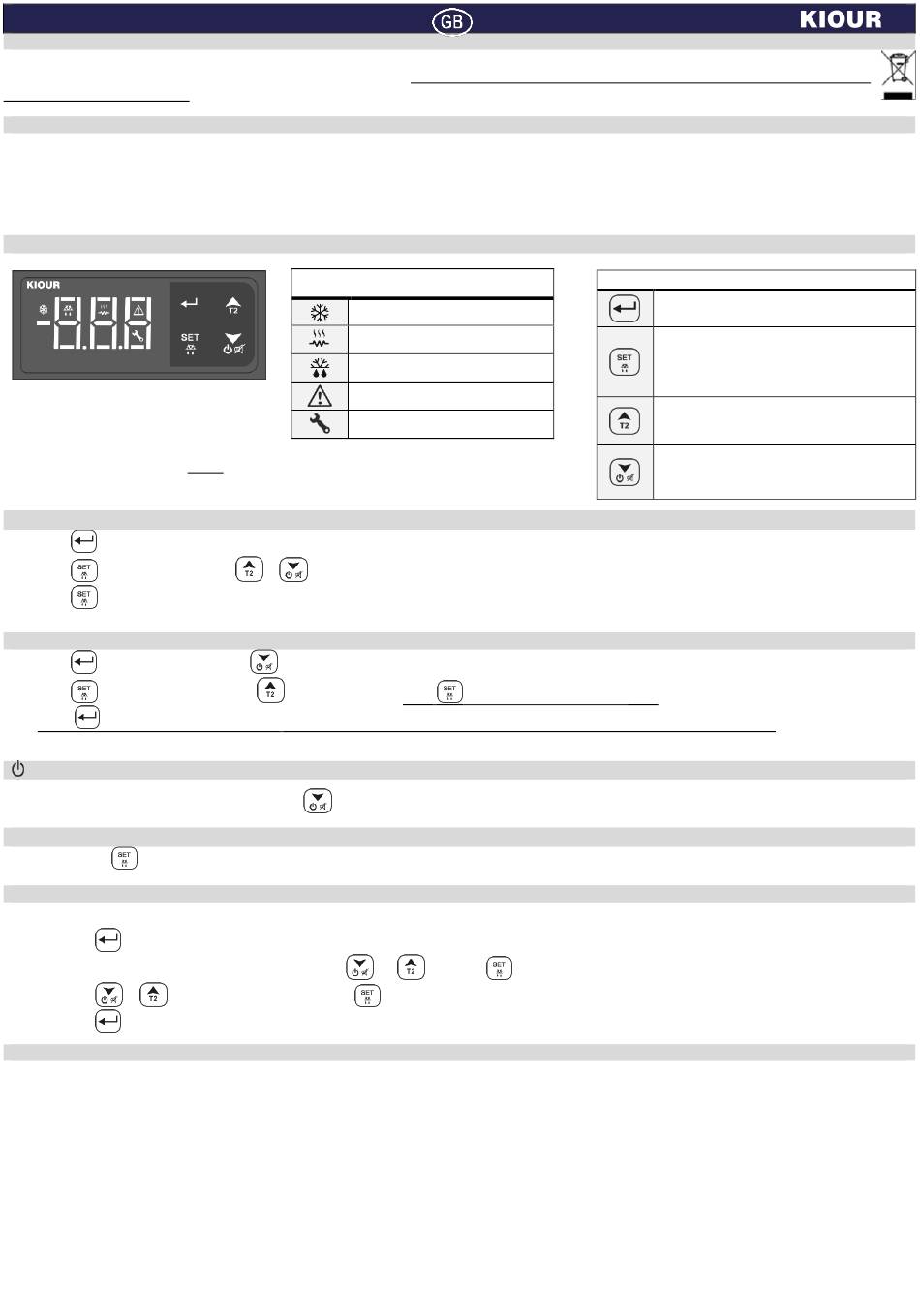

INDICATIONS AND BUTTONS FUNCTION

For more indications regarding the alarms please see the alarm's table at page 3.
ADJUSTING TEMPERATURE – SET POINT
1. Press to display the first parameter SPo.
2. Press to display its value. With
3. Press to save the new value. The device is working properly with the new adjustment.

INDUSTRIAL FACTORY SETTINGS

1. Press to display SPo. By pressing
2. Press to display its value and press
3. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.

ON/OFF DEVICE

To activate or deactivate the device, press for 3 seconds

MANUAL DEFROST

Press for 3 seconds to start a manual defrost with duration based on the parameter dd2.
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 2
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or to change its value and then press
4. Press to exit the parameter menu.

TECHNICAL SPECIFICATIONS

Model VD1F power supply: 230VAC 50/60Hz / Maximum power consumption: 3W. Model VD1FW switching power supply 100-264VAC 50/60Hz 5W.
It is recommended using a power supply safety fuse: 0.5Α (not included)
Room temperature sensor NTC 10K 1% 25°C ΙΡ68 with temperature range -50÷+112°C (-58÷+230°F) (or PTC 1Κ 25
not included) / Accuracy: ±0.5°C
Alarm buzzer / Serial input with 5pin connector / Digital input door
Relay 30Α res. 250VAC normally open contact / Max current load 16Α
Connections: cable cross section
Connections with terminal blocks 18A using cable with
Operating temperature: -15÷+55°C / Storage temperature: -20÷+80°C
Dimensions 37x79x81mm / The device is mounted on a panel hole 29x71mm and it is restrained with plastic side brackets / Protection IP65 front
Firmware: V3.0
and it is restrained with plastic side
Display indications
or change SPo value.
the parameter Cod is displayed.
to enter the value 31. Press
.
parameter Cod must be adjusted to 22 (see parameter table next page)
nd
2.5 mm² for all relays / cable cross section
cable cross section
brackets. Through the serial input it can be connected to a network either through Cloud
relay ON in cooling mode
relay ON in heating mode
defrost ON
alarm ΟΝ
malfunction ON
to store the value to parameter
or and press to display its value.
to store the new value.
from 0.25 to 1.0 mm² for the sensors and door switch
up to 2.5 mm² / It is recommended using a torque wrench with maximum torque 0.4Nm
Keyboard
enter/exit the parameter's menu
display the parameter's value
enter parameter's value
manual defrost or manual heating with
countdown
up arrow
OFF device (check below)
down arrow
mute buzzer
ON/OFF device (check below)
Cod.
C with temperature range -50÷+150°C (-58÷+302°F)
o
Firmware V3.0
1
