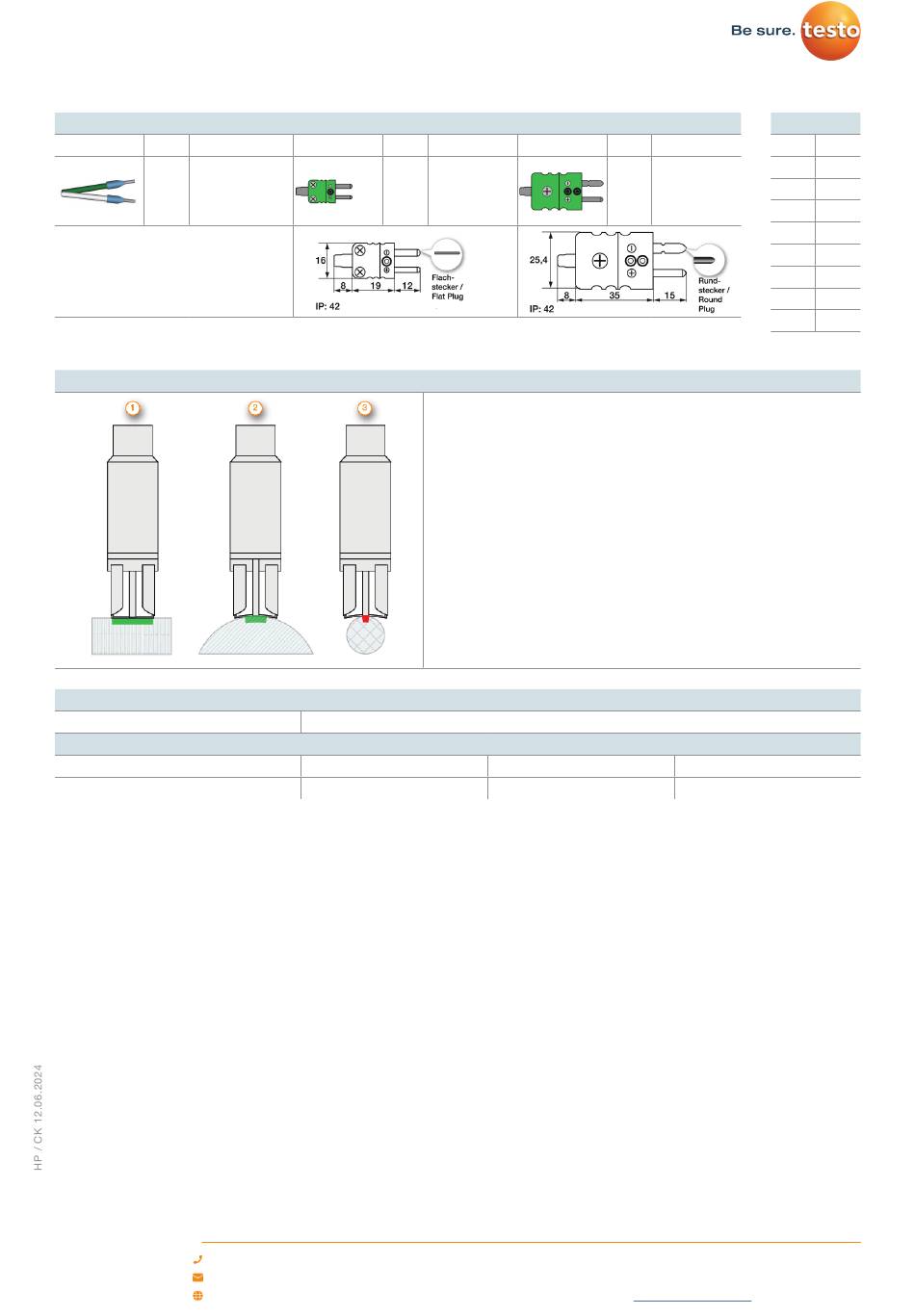

TESTO 802912 1211 User Manual page 7

User Manual - Technical data and assembly instructions
G - Connector
Picture Code Feature
Insulated end
G01
ferrules (50 mm)
Technical drawing - Connector
Other connectors available on request
Important assembly advices
Delivery and Assembly
Delivery and Packaging
Your order code
Article no.
802912 1211
Testo Sensor GmbH
+49 7653 96597-71
Testo-Straße 1 webshop@testo-sensor.de
D-79853 Lenzkirch Please find our whole temperature probe and transmitter portfolio in our webshop at:
Picture Code Feature
Mini-TC
G12 connector
Type K gn
Our cross band probes measure the surface temperature. At the measuring
point, the surface should be clean, flat and free of residues. If necessary,
you can use thermal paste for better thermal coupling. Our probes are best
suited for measurement on flat surfaces (1). For uneven or round surfaces,
please make sure that the contact area is sufficiently large (2). If the measuring
surface is too small (3), measurement errors may occur.
Please lay the cable with reserve loop. In this way, you can extend the probe
without disconnecting the electrical connection.
The filigree cross tapes are sensitive to mechanical damage. Therefore, please
do not press the measuring tapes in with your fingers or with a pointed object.
Carefully place the cross band probes on the measuring point and press them
lightly.
Probe, seperatly packaged in PE bag
Material connection cable
E_____
Managing Director: Prof. Burkart Knospe, Martin Arndt, Timo Löffler
Amtsgericht Freiburg HRB 706025 | Umsatzsteuer-ID.: DE274417683
Picture Code Feature
TC connector
G32
Type K gn
Length connection cable
F_____
www.testo-sensor.shop
F - Length
Code m
F010 1
F020 2
F030 3
F040 4
F050 5
F100 10
F150 15
F200 20
Connector
G_____
