1.4. Signage, safety labels, type plate

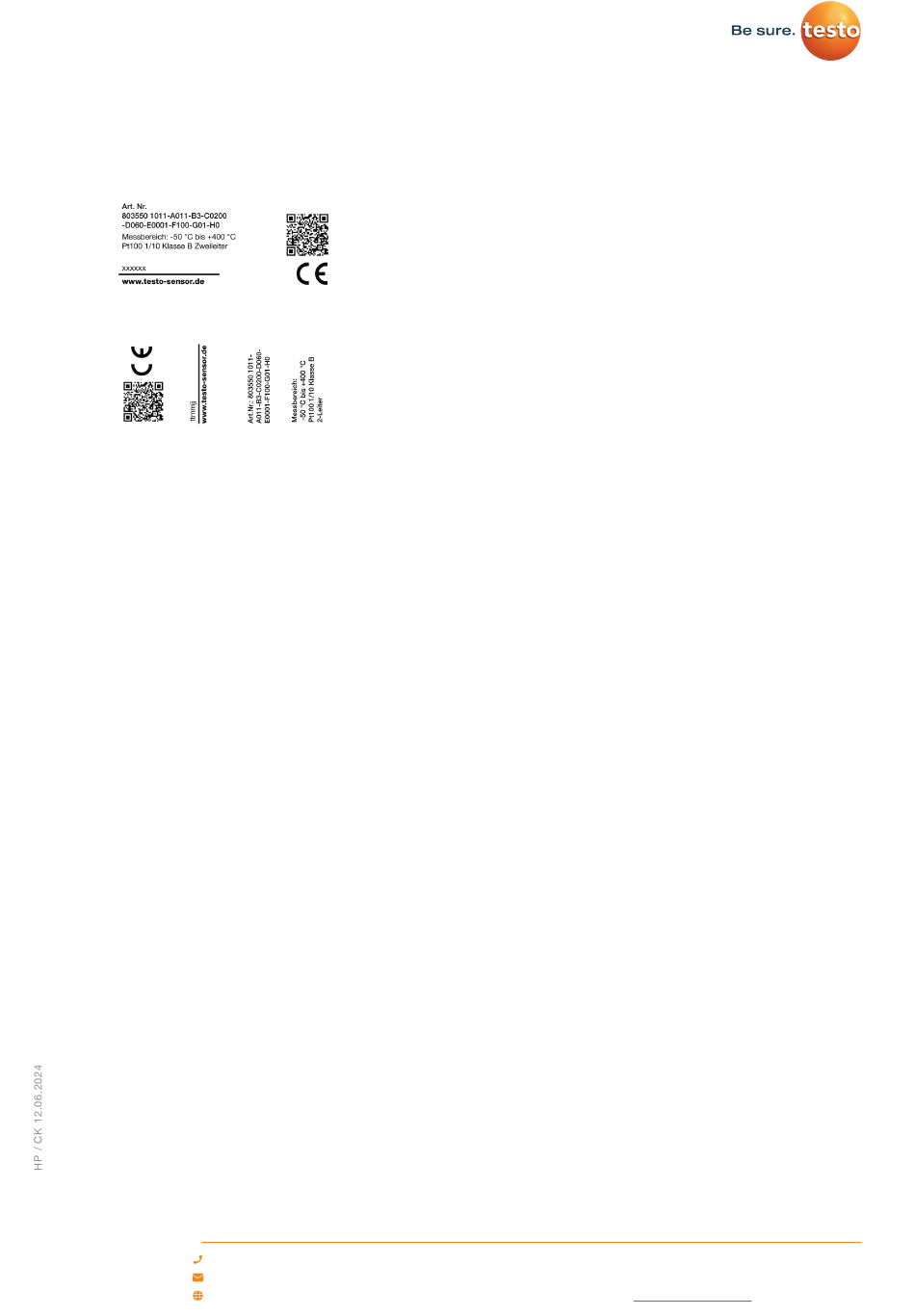

Products are labelled as follows. (Exemplary representation)
Label for temperature probes with housing/head
Label for cable probes (attached to the cable as a flag)

2. Transport, packaging and storage

Transport: Please inspect the product for any transport damage immediately after delivery. Please notify us immediately of
any obvious damage.
Packaging: Please remove the packaging only immediately before assembly and keep it, as the packaging provides
optimum protection during transport.
Storage: The permissible storage temperature is -20 ... +70 °C and the ambient humidity conditions at the storage location
should preferably be approx. 20% ... 85% relative humidity; condensation should be avoided.
The following influences should be avoided:
• Direct sunlight or proximity to hot objects
• Mechanical vibration, mechanical shock (hard impact)
• Exposure to soot, steam, dust or corrosive gases
• Explosive environment, flammable atmospheres
Original packaging: Please store the product in the original packaging in a place that meets the conditions
listed above. If the original packaging is not available, please pack and store the product as follows:
• Wrap the product in an antistatic plastic sheet.
• Place the product with the insulation material in the packaging.
• For longer storage (more than 30 days), add a bag of desiccant to the packaging.

3. Commisioning

3.1. Assambly

• The products may only be connected in a de-energised state, only to safety extra-low voltages and only by suitably
qualified personnel.
• Please observe the safety regulations of the VDE, the federal states, their monitoring bodies, the TÜV and the local EVU.
The installation instructions in the data sheet must be observed.
• Please observe EMC guidelines to prevent damage, faults on the product or measured value deviations.

3.2. Requirements for achieving the protection class (IP 65)

• Only use the cable gland in the specified clamping range (select the cable Ø to match the cable gland).
• Do not use the lower clamping area when using very soft cable types.
• Only use round cables (a slightly oval cross-section may also be suitable).
• Do not twist the cable.
• Multiple opening/closing is possible, but can have a negative effect on the protection class.
• For cables with pronounced cold flow behaviour, please tighten the screw connection if necessary.

3.3. Drilling template

You will find the drilling template, if available, in the technical data.
