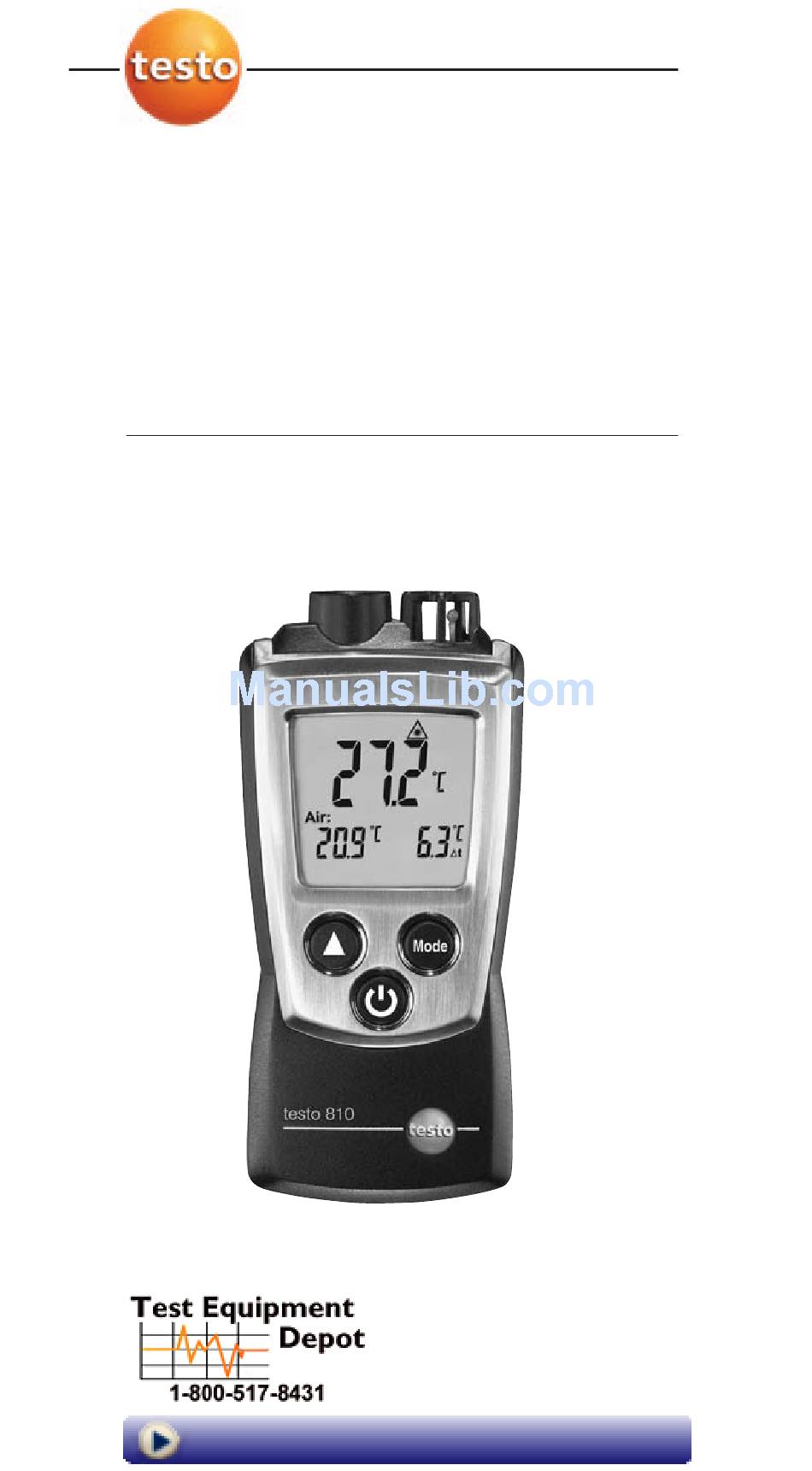

- Page 1 810 Instruction manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 2 Short manual testo 810 13 Short manual testo 810 Protection cap: Park position Infrared sensor Air/temperature sensor Display Control keys Battery compartment (on rear) Basic s s ettings Instrument off >press and hold 2s > select with ( ), confirm with Unit of temperature: °C, °F >...
-
Page 3: Safety And The Environment
Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them. Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly... -
Page 4: Specifications
Specifications 15 Specifications Functions and use The testo 810 is an infrared measuring instrument. It is normally used to measure surface temperature, e.g. on heaters and radiators, and to measure the ambient temperature at the same time. Technical data Measurement data Further instrument data ·... -
Page 5: Product Description

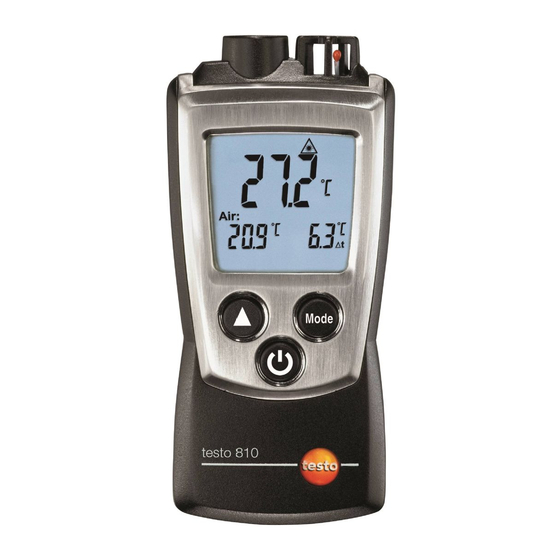

Product description Product description At a glance Protection cap: Park position Infrared sensor Air/temperature sensor Display Control keys Battery compartment (on rear) First steps Inserting b b atteries: 1 To open the battery compartment, push the battery cover down. 2 Insert batteries (2x 1.5 V type AAA). Observe the polarity! 3 To close the battery compartment, push the battery cover back on. - Page 6 Product description 17 Because of their low or non-uniform emission factor, bright metals and metal oxides are of only limited use for infrared measurement. Coatings that increase the emission factor, e.g. paint or emission adhesive (0554 0051) must be applied to the object being measured. Emission factors of various materials (typical values): ε...
-
Page 7: Using The Product
Using the product Using the product Switching t t he i i nstrument o o n: Press - Measuring mode is opened. Switching t t he d d isplay l l ight o o n: The instrument is switched on. Press - The display light goes out automatically if no key is pressed for 10 seconds. - Page 8 Using the product 19 Changing t t he d d isplay v v iew: Adjustable views · Hold: Readings are held. · Max: Maximum values since the instrument was last switched on or last reset. · Min: Minimum values since the instrument was last switched on or last reset. Press several times until the desired view appears.
-
Page 9: Maintaining The Product
Maintaining the product Maintaining the product Changing b b atteries: 1 To open the battery compartment, push the battery cover down. 2 Remove used batteries and insert new batteries (2x 1.5 V type AAA). Observe the polarity! 3 To close the battery compartment, push the battery cover back on. -
Page 10: Tips And Assistance
Tips and assistance 21 Tips and assistance Questions and answers Question Possible causes/solutions Hi or Lo · Readings outside the measuring range (too high, too low): Keep to the permitted measuring range. · Residual capacity <10 min: Change batteries. - Page 11 Notes...
- Page 12 Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com 0973.8100/02/Sh/dr/28.03.2007...
