Arkon MG5RM023 Manual

MG5RM023 | Mobile Grip 5 Holder with Cup Holder Mount
SP-SB-RING
MG005WR SP25MM17

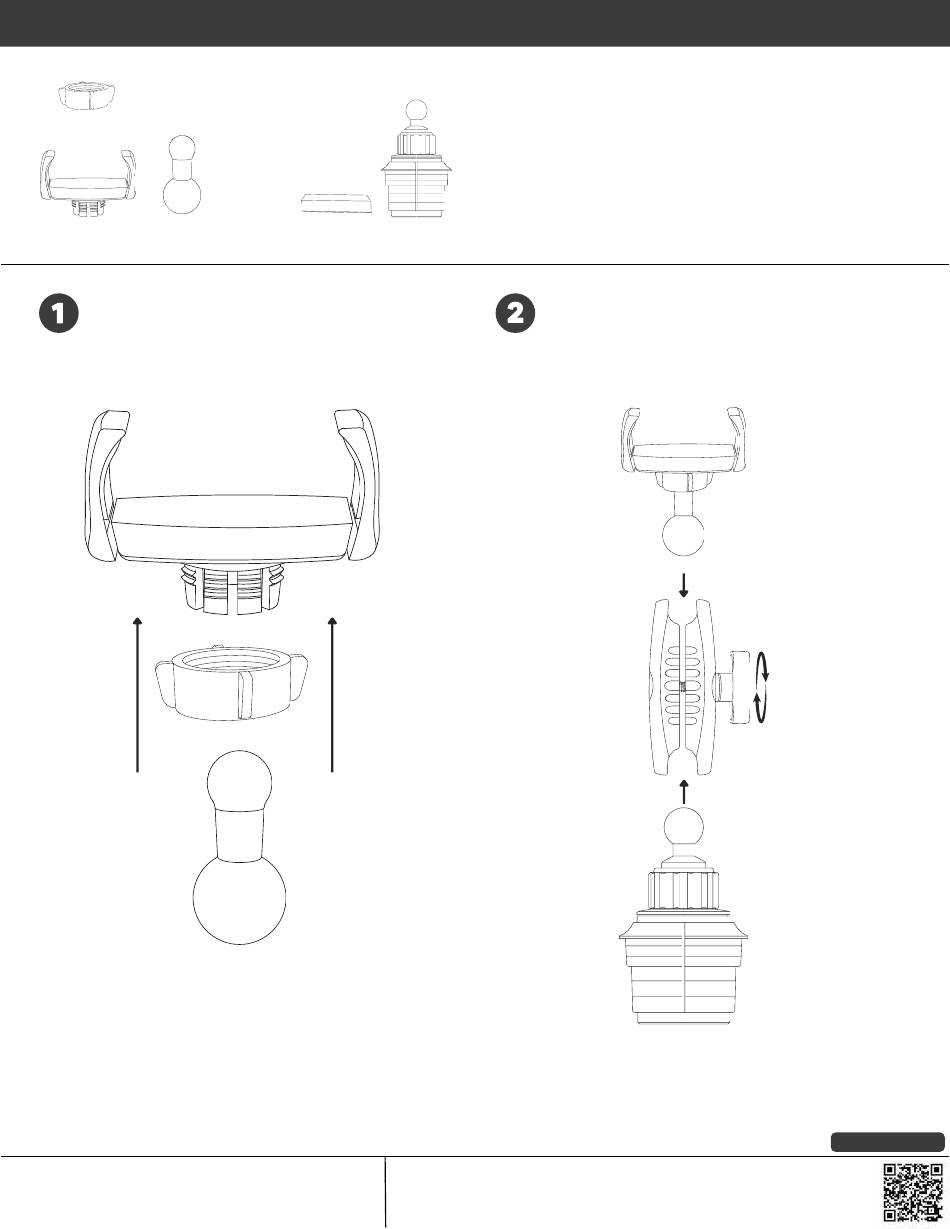

Install the holder onto the adapter
Unscrew the tightening ring from the phone holder by turning it
counter-clockwise. Connect the 17mm ball adapter to the
phone holder. Securely fasten the ring back in place.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon ® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon
of vehicles. Arkon ® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon
product, or people due to the installation or use of this product.
SP-RM250 SP023PAD SPRM023
Includes:
1 – Mobile Grip 5 Universal Smartphone Holder
1 – 17mm Tightening Ring
1 – 25mm Ball to 17mm Ball Adapter
1 – Robust™ Series 3.75 inch Mount Shaft Arm
1 – Heavy-Duty Car Cup Holder Mounting Pedestal
4– Adhesive Pads
Compatibility: This holder is suitable for smartphones with cases measuring
up to 3.90" wide.
Assemble the components
Turn the shaft arm counterclockwise to loosen it. Next, attach
the 25mm ball adapters to both ends. Finally, tighten the shaft
to secure everything in place.
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
(MG005WR)
(SP-SB-RING)
(SP25MM17)
(SP-RM250)
(SPRM023)
- Optional
(SP023PAD)
® products near areas that intefere with operation
® is not responsible for any damages caused to vehicles,
arkon.com
Designed in USA
©Arkon Resources, Inc.
rev.070124
Continued on page 2
