Briteq BT-THEATRE YOKE ADAPTER-HD2 Manual

IMPORTANT:

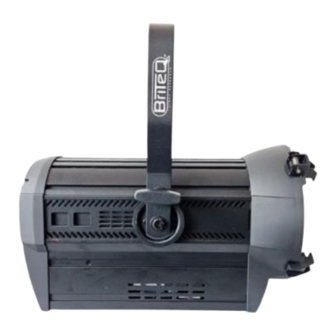

This "BT-THEATRE YOKE ADAPTER-HD2" (order code: B06035) should be used with "BT-THEATRE HD2" Fresnel projectors,
starting from batch BGL-2212.
Older "BT-THEATRE HD2" Fresnel projectors should use "BT-THEATRE YOKE ADAPTER-HD1" (order code B06031)

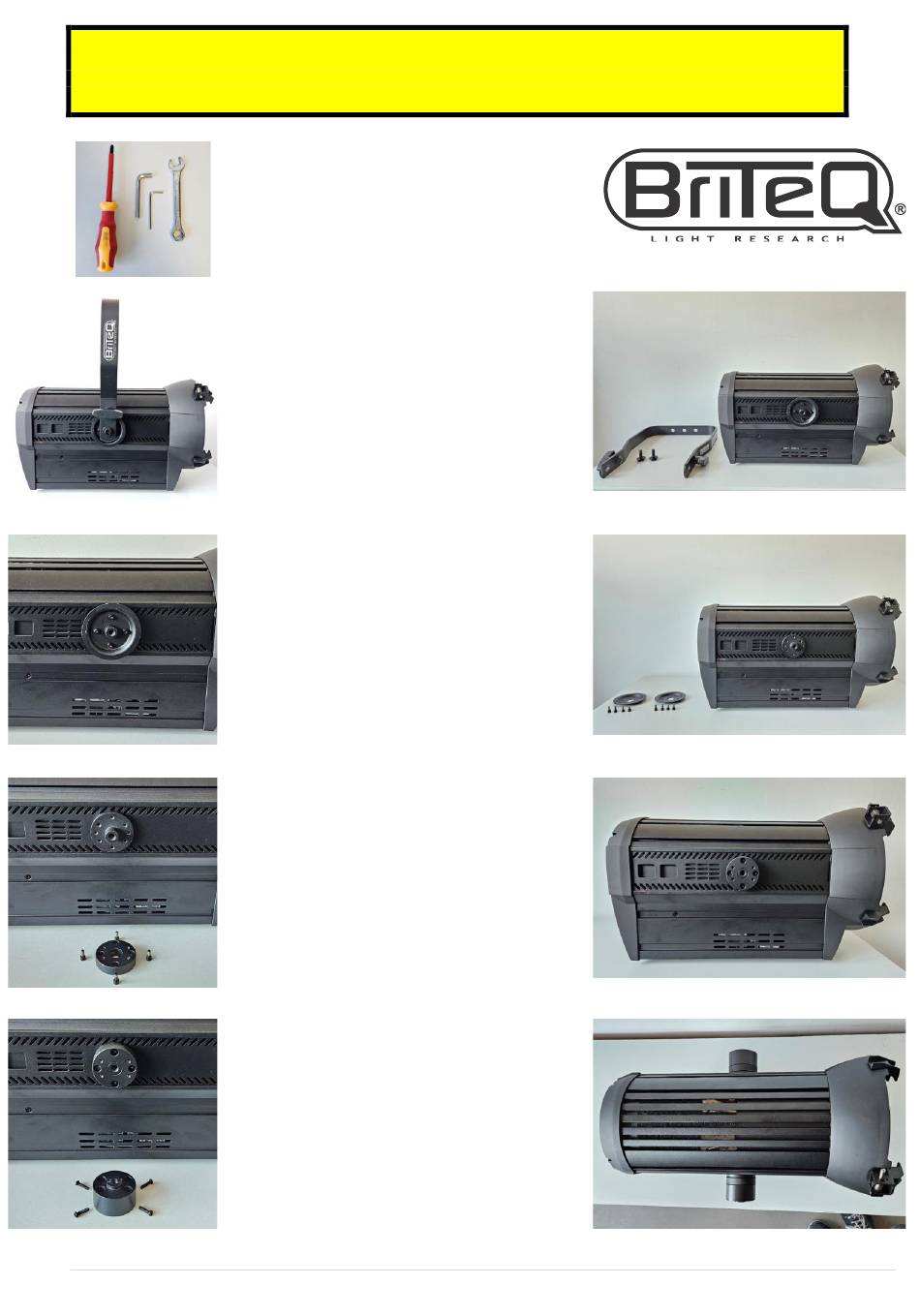

Step 1:
Step 2:
Step 3:
Step 4:
1 | B T - T H E A T R E Y O K E A D A P T E R - H D 2
Tools required:
•
PH2 Phillips screwdriver
•
6 mm hexagon wrench
•
3 mm hexagon wrench
•
14 mm open-end wrench
• Remove the bracket with a 14
mm open-end wrench.
• Remove the locking washers
with a 3 mm hexagon wrench.
(4 screws on both sides)
• Use the screws from step 2 to
mount the adapters (on both
sides).
• Fit the BT-THEATRE Yoke
spacers using the enclosed
Phillips screws (on both sides).
i n s t a l l a t i o n m a n u a l
