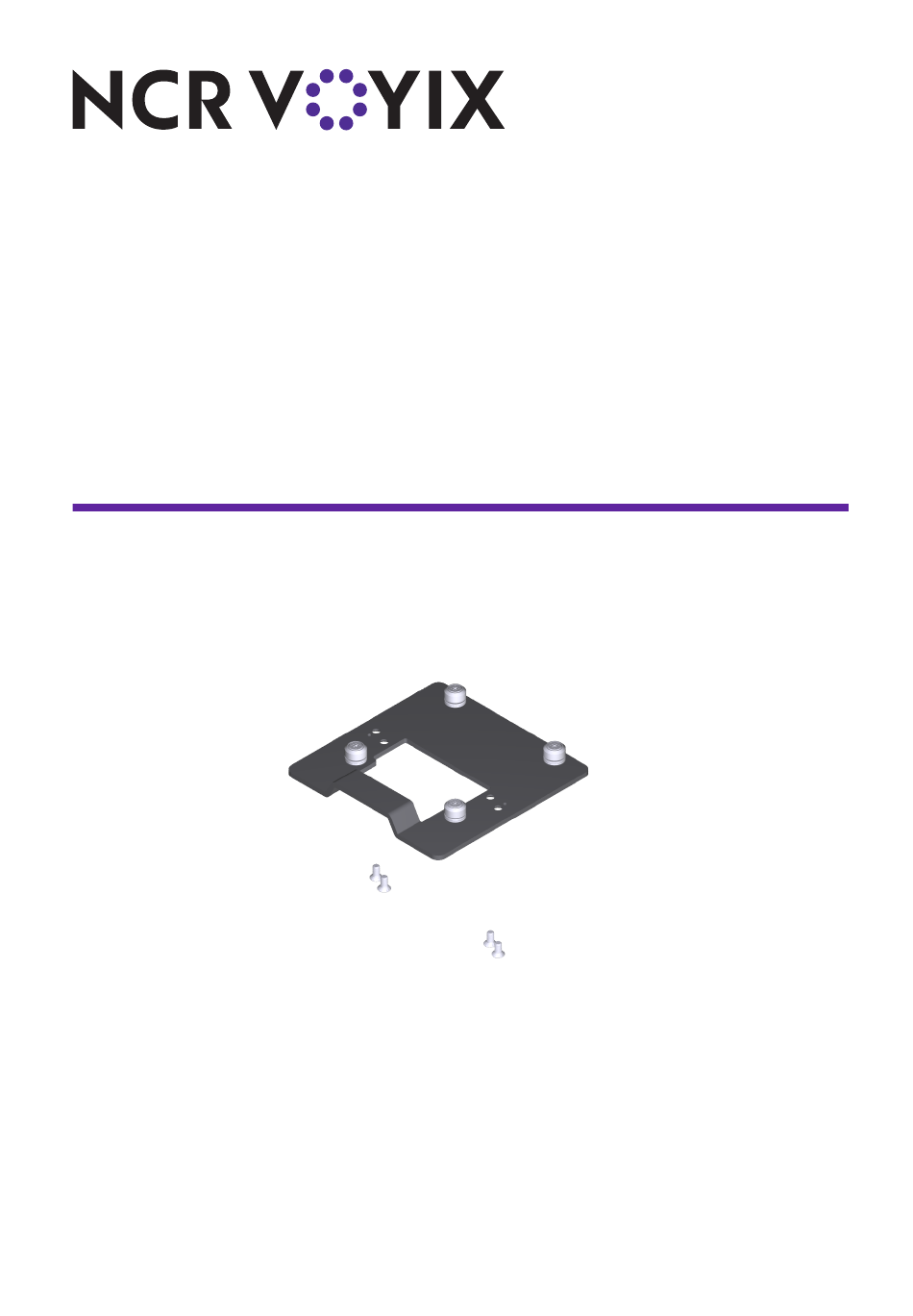

- Page 1 Quick Release Bracket, 7772/7773 Kit Instructions 7772-K403 Issue B © 2024 NCR Voyix. All rights reserved. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 2 NCR Voyix, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR Voyix in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR Voyix representative or NCR Voyix office for information that is applicable and current.
- Page 3 Table of Contents Copyright Quick Release Bracket, 7772/7773 Kit Contents Installation Procedure Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 4 Revision Record Issue Date Remarks Jan 2021 First Issue Dec 2021 Added Warning statement Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 5 Quick Release Bracket, 7772/7773 This kit provides a Quick Release Bracket for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773) mounted on a pole. Kit Contents Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 6 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 9 6. Remove the four (4) screws securing the Display Back Cover to the hinge of the Base. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 10 Insert the Back Cover Tabs into the openings in the back of the Display, then rotate the Back Cover onto the Display. b. Secure the Back Cover with two (2) captive screws. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 11 Connect the Ethernet Cable until latched and secure the cable under the Cable Management Hook. b. Connect the 180-degree USB-C Cable and tighten the thumbscrew. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 12 10. Route the Cables through the Bracket and down the Pole. 11. Install the Display on the Bracket (4 thumbscrews). Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
