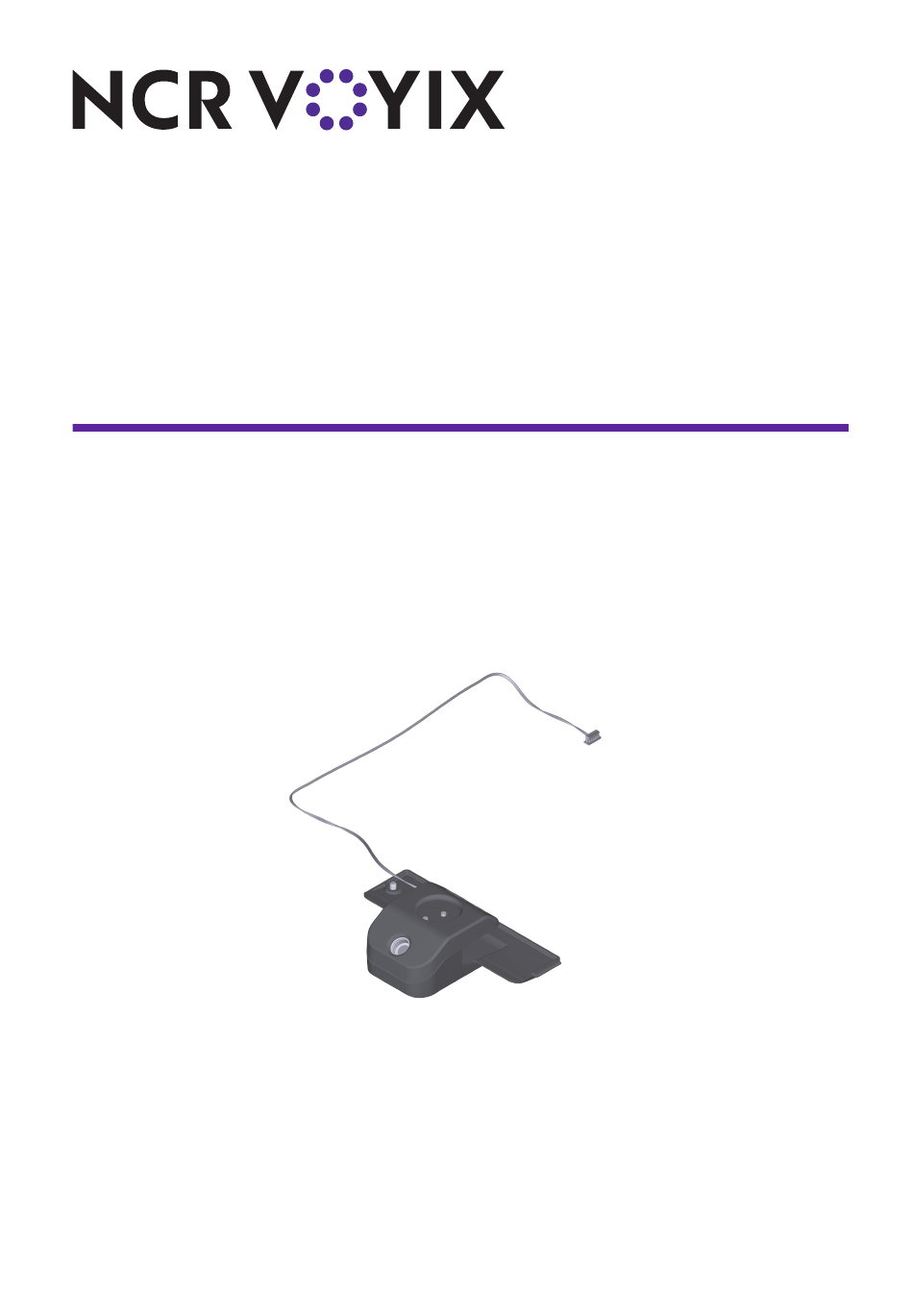

- Page 1 2-in-1 Sign-In Kit Instructions 7772-K161 Issue B © 2024 NCR Voyix. All rights reserved. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 2 NCR Voyix, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR Voyix in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR Voyix representative or NCR Voyix office for information that is applicable and current.
- Page 3 Table of Contents Copyright 2-in-1 Sign-In Kit Contents Installation Procedure Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 4 Revision Record Issue Date Remarks Jun 2020 First Issue Dec 2021 Added Warning statement Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 5 2-in-1 Sign-In This kit provides a 2-in-1 Sign-In Module for NCR CX7 All-in-One POS (7772) or NCR CX5 All- in-One POS (7773). Kit Contents Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 6 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 9 7. Place the 2-in-1 Sign-In Front Housing Assembly under the front of the display, then route the 2-in-1 Sign-In Cable through the Port opening and pull the Cable completely through. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 10 Cable to the Motherboard. Place excess cable in the area shown. 9. Hook the 2-in-1 Sign-In Rear Housing into the display housing and lower into place. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 11 10. Secure the Rear Housing with three (3) screws. 11. Reinstall the Display Back Cover. 12. Reconnect the 180-degree USB-C Cable and Ethernet Cable. 13. Reinstall the Cable Cover. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
