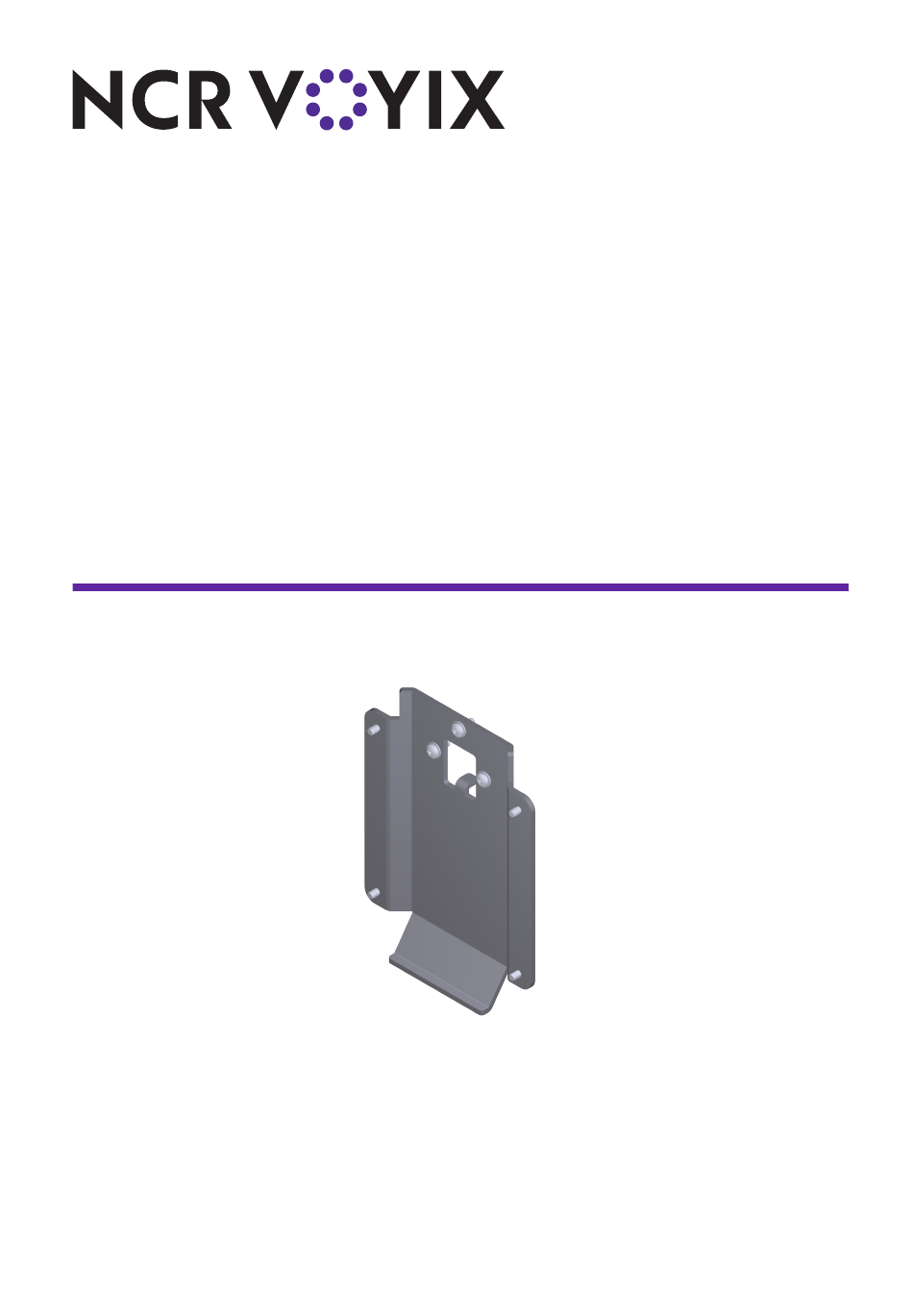

- Page 1 XL10 Pole Mount Bracket, 7772/7773 Kit Instructions 7772-K402 Issue A © 2024 NCR Voyix. All rights reserved. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 2 NCR Voyix, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR Voyix in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR Voyix representative or NCR Voyix office for information that is applicable and current.
- Page 3 Table of Contents Copyright XL10 Pole Mount Bracket, 7772/7773 Kit Contents Installation Procedure Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
-
Page 4: Revision Record
Revision Record Issue Date Remarks Aug 2020 First Issue Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions. -
Page 5: Kit Contents
This kit provides a Bracket to mount the XL10 Display on the CX7/CX5 Pole Mount. Kit Contents Installation Procedure 1. Remove the Cap from the Pole Mount. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions. - Page 6 2. Install the Customer Display Bracket on the Pole Mount (3 screws). 3. Connect the Cable to the back of the XL10 Display and route the Cable around the cable strain relief posts as shown. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 7 4. Route the XL10 Display Cable through the Customer Display Bracket and down the Pole. Note If there’s a hole in the countertop, the cables can be routed through the counter as well. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 8 5. Install the Display on the Customer Display Bracket (4 screws). Note For clarity, the pole mount bracket is not shown in the illustration. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
