REV 1.1
26/06/2024

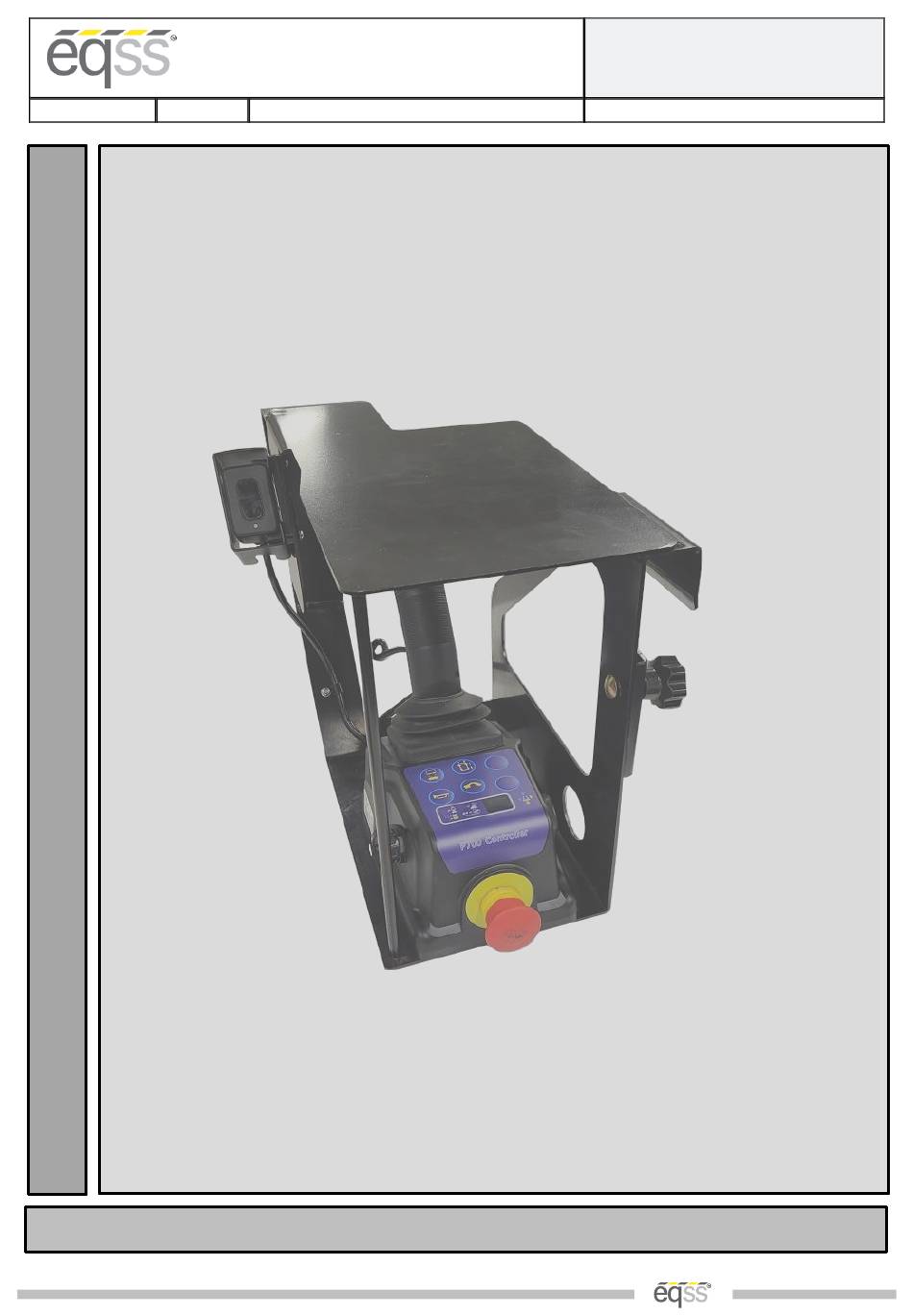

EQSS Model6253 – OverWatch™
I
Dingli S06-HAE Series
N
S
T
A
L
L
M
A
N
U
A
L
** Failure to follow this installation manual will void warranty **
EQUIPMENT SAFETY SYSTEMS
75 Naxos Way, Keysborough 3173 Victoria Australia
P: +61 3 8770 6555 E: support@eqss.com.au
Model6253 OverWatch™ Installation Manual
Dingli S06-HAE
Installation Manual
Document # DO001679
Advertisement
Table of Contents
Related Manuals for eqss OverWatch Dingli S06-HAE Series
Summary of Contents for eqss OverWatch Dingli S06-HAE Series
- Page 1 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 EQSS Model6253 – OverWatch™ Dingli S06-HAE Series ** Failure to follow this installation manual will void warranty **...
- Page 2 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 AUTHORS: AUTHORISED BY: CHECKED BY: Kieren Grogan, Bhavani Kacharapu Kieren Grogan...
- Page 3 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Important Information Information contained in this publication regarding this device’s applications and the like, is provided only for your convenience and may be superseded by updates.
-
Page 4: Table Of Contents
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Table of Contents Preparation ..................................5 Required Tools ................................5 Installation Time ................................ -
Page 5: Preparation
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Preparation Required Tools The OverWatch has been designed to be fitted using basic workshop tools. Shown below is a list of tools required to complete the installation. -
Page 6: Installation Instructions
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Installation Instructions Operator Sensor Step Description Diagram Remove the Joystick controller from the metal housing. - Page 7 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Drill two 6mm holes to mount the operator sensor in the position as shown in the image.
- Page 8 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Drill one 5mm hole to mount a P-clip on the metal housing as shown in the image.
- Page 9 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Route the operator sensor cable as shown in the diagram. Use a P-Clip to secure the cable to the metal box.
-
Page 10: Control Module
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Control Module Step Description Diagram Remove the bottom plastic cover from the... - Page 11 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Use a fine metal pick to clean the area shown in...
- Page 12 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Trim down the Drive signal pin. This pin is located as displayed in the adjacent image.
- Page 13 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Mount the Overwatch circuit board on top of joystick circuit board by using the provided screws and spacers in the kit.
- Page 14 EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Mount the OverWatch ECU inside the joystick control box, by using the adhesive velcro tape.
-
Page 15: Post Installation Configuration
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Post Installation Configuration Overview After the system has been installed it must be configured with the parameters to suit the machine. Follow the instructions below to configure the OverWatch. -
Page 16: Machine Model Selection
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Machine Model Selection Follow the instructions below to configure the OverWatch. -
Page 17: Installation Test
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Installation Test After the model configuration has been set or updated an Installation Test must be performed. This will ensure the installation has been correctly performed and the OverWatch is functioning correctly. -
Page 18: Change Model Configuration
Change Model Configuration To reconfigure the OverWatch for a different model requires an authorisation password. The authorisation password is generated from the EQSS website. The EQSS website requires a login username and password, contact EQSS for these details. Follow the instructions below to obtain an authorisation password. It is important to note that each ECU has a unique serial number and a unique password. -
Page 19: System Settings
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 System Settings Default Parameters The OverWatch is configured with the following default parameters. -
Page 20: Polarity And Input Style
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Polarity and Input Style The table below describes each setting... -
Page 21: Harness Drawing As002208
EQUIPMENT SAFETY SYSTEMS Dingli S06-HAE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV1.1 26/06/2024 Model6253 OverWatch™ Installation Manual Document # DO001679 Harness Drawing AS002208 |21 of... -
Page 22: Replacement Parts
Model6253 OverWatch™ Installation Manual Document # DO001679 Replacement Parts Replacement parts for this OverWatch kit are available from EQSS, please email sales@eqss.com.au Shown below are the part numbers for the major components included in this model specific kit. Part Number...
