Summary of Contents for SME 15

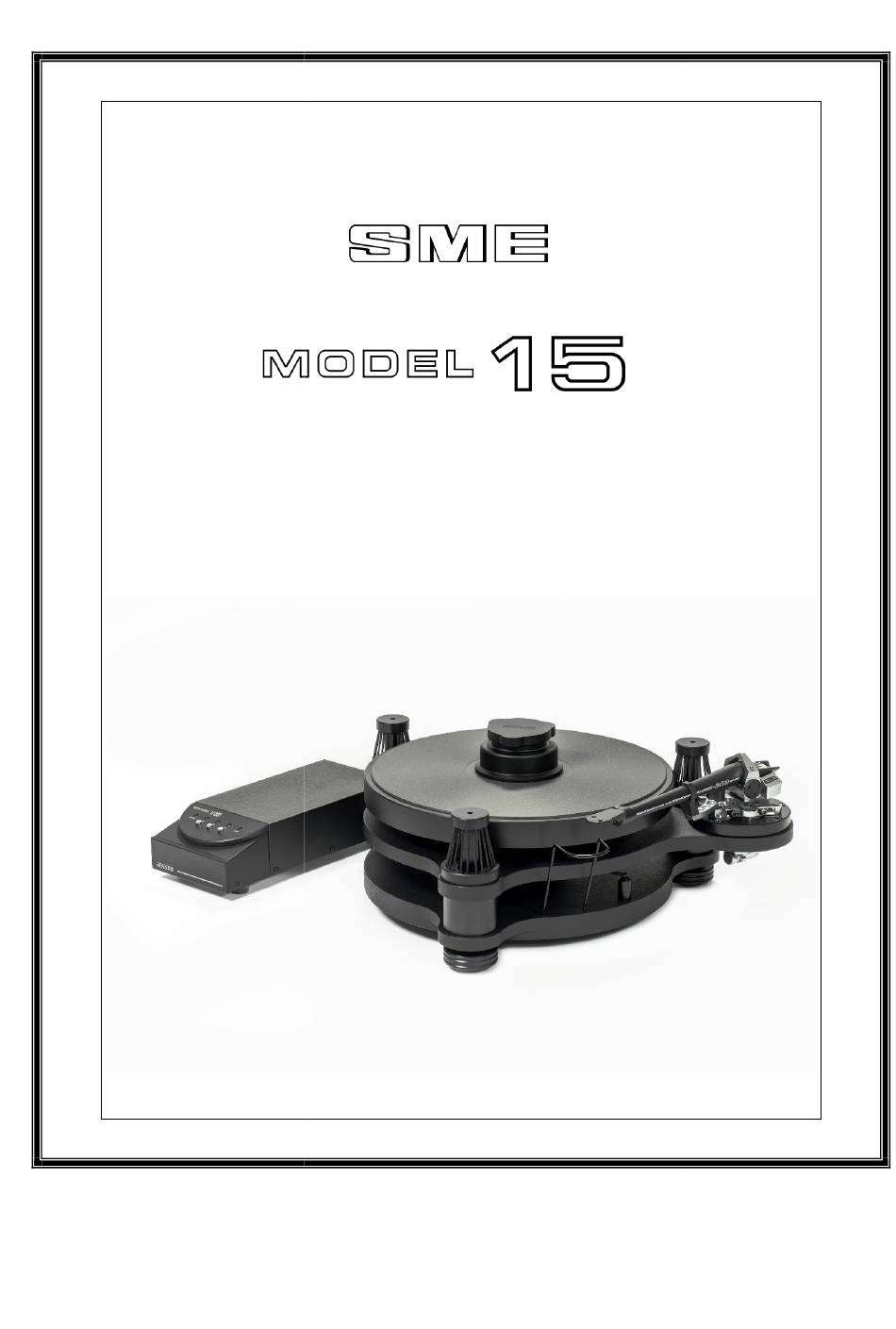

- Page 1 PRECISION TURNTABLE PRECISION TURNTABLE PRECISION TURNTABLE Instructions...
- Page 2 Warning! Important Safety Instructions CAUTION: RISK OF ELECTRIC SHOCK DO NOT REMOVE POWER SUPPLY UNIT COVER. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE POWER SUPPLY UNIT COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. Please read this manual carefully and keep it in a safe place for future reference.
- Page 3 PRECISION TURNTABLE Instructions This is no ordinary turntable. These instructions cover This is no ordinary turntable. These instructions cover This is no ordinary turntable. These instructions cover unpacking, adjustment and installation procedures. unpacking, adjustment and installation procedures. unpacking, adjustment and installation procedures. Please read carefully as you proceed.
-
Page 4: Introduction
1. INTRODUCTION The SME Model 15 Precision Turntable is built to exacting engineering standards providing reliability and freedom from critical adjustments. Build integrity, sophisticated electronics and vibration free moving parts allow the full capabilities of any sound to be fully explored. -
Page 5: Table Of Contents
2. CONTENTS Page Introduction Dimensions and specification Packing list Parts identification Unpacking 10/11 Setting up Operation - Turntable speed adjustment Operation 12/13 Maintenance Transit precautions Guarantee Appendix... - Page 6 3. DIMENSIONS Width 452.0mm (17.80”) Depth 361.0mm (14.20”) Height 175.0mm (6.90”) Platter Diameter 305.0mm (12.00”) Net Weight 18.500 Kg Shipping weight 24.200 Kg 4. SPECIFICATION The turntable is driven by a 3-phase, 6 pulse, inductance motor, with 8 pole Neodymium magnets and 3 integrated Hall position sensors.
-
Page 7: Packing List
PACKING LIST – Model 15 turntable Part No Model 15 assembly 1200/2 Suspension Bands (spares) 1020 Syringe of Spindle Oil 1058/20 4mm A/F Hexagon Wrench 1083 Stroboscopic Disc 1087 Power Supply Unit – 100V 115V 230V 1266/2 Power Cord – UK... -
Page 8: Parts Identification
7. PARTS IDENTIFICATION Voltage Suspension Cable Transit Screws Arm Mounting Plate Motor Lubrication Point Motor Pulley Pulley Transit Screws Jacking Screws Insert 3mm Ball-Ended Wrench here Stylus Safety Guard Turntable Record Spindle Upper Gallery Drive Belt Driven Pulley Spindle Washer Cover Suspension Platter... -
Page 9: Unpacking
8. UNPACKING 1. Unpack and check all items against the packing list on Page 7. Any missing parts should be reported to your dealer. 2. The turntable should be placed on a substantial table or steel equipment stand, this should be in its final position for setting up, as movement after this procedure is best avoided. -
Page 10: Setting Up
4. The base should now be levelled by rotating the supporting feet. The feet will turn more readily if the corresponding corner of the base is lifted slightly at the same time. 5. The Model 15 is intended to receive SME precision pick-up arms such as the Series V, Series IV or Series 300 Model 309. -
Page 11: Operation - Turntable Speed Adjustment
10. OPERATION - Turntable speed adjustment The Model 15 precision turntable is partly run-in before leaving the factory but will further benefit from the first few weeks of use. If you should wish to check the speed settings and make your own adjustment, the procedure is as follows: 1. -
Page 12: Operation
3. The Model 15 is not equipped with a lid as this would increase the likelihood of acoustic feedback. A loose cover is provided to protect the turntable from dust when not in use. The back should be fitted first and the cover then brought forward so that the front can be guided safely past the cartridge and stylus. -
Page 13: Transit Precautions
TRANSIT PRECAUTIONS The Model 15 can be safely transported, SUBJECT ABSOLUTELY TO THE FOLLOWING PRECAUTIONS: Short journeys by car: remove the platter, disengage the drive belt from the motor pulley, and replace the two packing strips beneath the motor and secure with the motor transit screw. Lock down the suspension. -
Page 14: Guarantee
The nominal period of the guarantee is twelve months but is liberally interpreted at our discretion subject to the following conditions being observed: 1. Any matter arising must in the first instance be raised with SME Limited at the address appearing below. -
Page 15: Appendix
15. APPENDIX We hope these instructions have made the installation of your Model 15 precision turntable straightforward. Care for it as befits its fine construction. Do not invert it. Do not apply oil or other lubricant except as directed. Do not attempt to take it to pieces or interfere with any of the screws except as directed in the instructions.
